| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-SP-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 40 Days after Down Payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets/month |
| Application: | Single Roll Packing | Packing Material: | CPP With Thickness Of 40 Microns |
|---|---|---|---|
| Speed: | 25-55 Bags/min | PLC: | SIEMENS |
| MOTOR: | SIEMENS | Weight: | 3.5-5 Ton |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Type: | Multi-Function Packaging Machine, Other, Packaging Line |
| Function: | Sealing, Wrapping, Filling, Gluing | Packaging Material: | Plastic, CPP, PE |
| Automatic Grade: | Automatic | Driven Type: | Electrical |
| Packaging Type: | BAGS, FILMS | Power(w): | 7.5KW |
| Product Type: | Toilet Roll Packing Machine | Processing Type: | Toilet Roll Packing Machine |
| High Light: | 0.5MPa Toilet Roll Packing Machine,CPP Kitchen Toilet Roll Packing Machine,CPP Kitchen toilet roll packaging machine |
||
Auto Paper Roll Wrapping Machine Packaging Of Toilet Paper Roll And Kitchen Towel Roll
Description
Full AutomaticToilet Roll Packing Machine for Single Toilet Roll Wrapping is special machine for packaging of toilet paper rolls and kitchen towel rolls. This equipment is
easy to operate and fast speed.
It adopt PLC, return and push roll automatically, packing and sealing.3. Equipped with touch screen
man- computer conversation, display production parameter and producton malfunction on screen.
Specification
|
Tissue sizes |
L: 100-230mm W: 100-150mm H:40-100mm |
|
Packing speed |
25-55 bags/min |
|
Air supply |
0.5-0.8MPa |
|
Machine weight |
3500kg |
|
Outer dimensions |
3560*5885*1925mm |
|
Heating power |
3.6kw |
|
Motor power |
5.4kw |
|
Max packing size |
230*150*100(mm) |
|
Working noise |
≤78dB |
|
Packing film |
CPP with thickness of 40 microns |
|
Power supply type |
380V, 50Hz |
Main functions
1 . Adopting double-drive vertical sealing device, makes the vertical sealing stable, firm and neat
2 . Function of automatic stop at the fixed position is available
3 . PLC control makes the system reliable and easy maintenance
4 . Frequency control makes the operation easy and simple
5 . Adopting photoelectric sensor to test the eye mark, non-contact point control, two-way tracking
Electrical Parts Brand
|
No |
Part name |
Brand |
Remarks |
|
1 |
Main control panel |
Soontrue |
|
|
2 |
Inverter |
Panasonic |
1.5kw |
|
3 |
Inverter |
Panasonic |
0.4kw |
|
4 |
Solid relay |
Shanghai Chaocheng |
|
|
5 |
Power switch |
FUJI |
30A |
|
6 |
Photocell |
SUNX |
|
|
7 |
Touch screen |
HITECH |
|
|
8 |
Temp. controller |
OMRON |
|
|
9 |
Motor |
VTV |
|
|
10 |
Bearing |
NSK |
Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

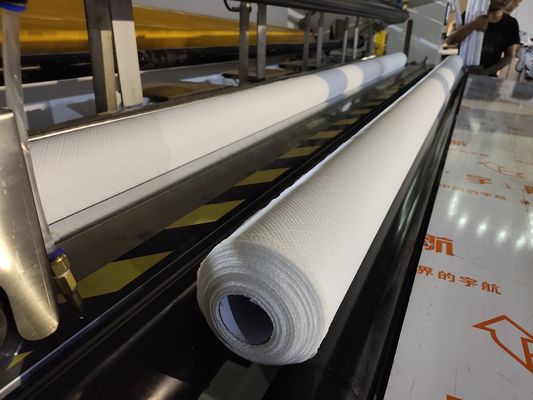

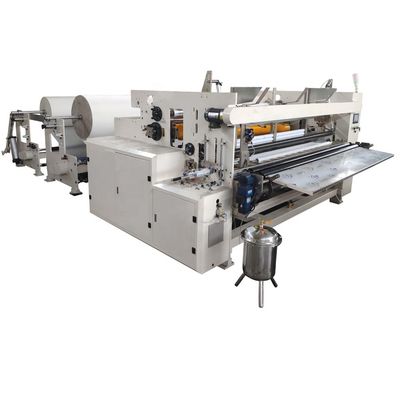

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Specification:
Machine Detail Pictures:
Deco Color Lamination Parts:

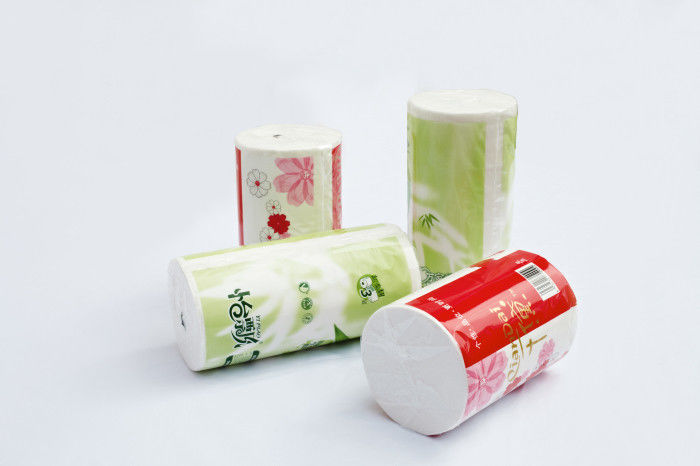

Finished Products:
