Product Details:
Payment & Shipping Terms:
|
| Application: | Single Roll Packing | Packing Material: | CPP With Thickness Of 40 Microns |
|---|---|---|---|
| Speed: | 25-55 Bags/min | PLC: | SIEMENS |
| MOTOR: | SIEMENS | Weight: | 3.5-5 Ton |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Type: | Multi-Function Packaging Machine, Other, Packaging Line |
| Function: | Sealing, Wrapping, Filling, Gluing | Packaging Material: | Plastic, CPP, PE |
| Automatic Grade: | Automatic | Driven Type: | Electrical |
| Packaging Type: | BAGS, FILMS | Power(w): | 7.5KW |
| Product Type: | Toilet Roll Packing Machine | Processing Type: | Toilet Roll Packing Machine |
| High Light: | 0.5MPa Single Toilet Roll Packing Machine,0.5MPa Single Paper Roll Wrapping Machine,5.4KW Toilet Roll Packing Machine |
||

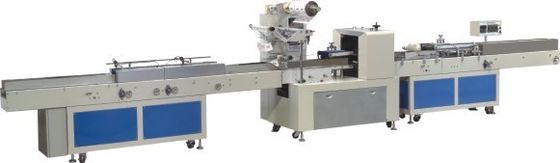

High Speed Toilet Roll Packing Machine for Single Toilet Roll Wrapping
Description
High Speed Toilet Roll Packing Machine for Single Toilet Roll Wrapping
is suitable for single toilet paper packaging.
The toilet roll packing machine has the combined function of setting ,pronghorn, sealing.
The machine integrating photoelectric impressed processing equipment,
a new generation of toilet paper at first, has applied for national patent.
The greatest characteristic of the machine is fully automatic trimming, a complete sealing glue end, is a high efficiency, high quality, low loss of toilet paper processing equipment, can deserve to store paper wearing, and a large synthetic cyclotron cut unit production line.
Specification
|
Tissue sizes |
L: 100-230mm W: 100-150mm H:40-100mm |
|
Packing speed |
25-55 bags/min |
|
Air supply |
0.5-0.8MPa |
|
Machine weight |
3500kg |
|
Outer dimensions |
3560*5885*1925mm |
|
Heating power |
3.6kw |
|
Motor power |
5.4kw |
|
Max packing size |
230*150*100(mm) |
|
Working noise |
≤78dB |
|
Packing film |
CPP with thickness of 40 microns |
|
Power supply type |
380V, 50Hz |
Main functions
1 . Auto arranging, aligning, caching, allocating, transporting, packing, can be connected with toilet paper log cutting machine by conveyor
2 . Microcomputer controller, the length of bag is adjustable,
3 . Human-machine interface, parameter setting is easy
4 . With self-protect system in case of breakdowns happen
5 . Breakdown self- diagnose, and display on the interface screen
6 . Machine pauses automatically in certain position when lacks of toilet paper rolls, packaging film will not stick to knife and no waste
7 . Fully automatic adjustment for packing film feeding system and transverse cutting system,
8 . High sensibility Photoelectric detector for color label tracing, set the position of sealing and cutting digitally
9 . Temperature independent PID control, suitable for each kind of packaging material
10 . Driving system is simple and reliable for machine working, and maintenance
11 . All controlling is programmable, which is convenient for function adjustment and technical upgrading
12 . Packaging speed: 30~120rolls/per minute, auto start/stop by sense, auto acceleration and deceleration according to rolls transportation
Electrical Parts Brand
|
No |
Part name |
Brand |
Remarks |
|
1 |
Main control panel |
Soontrue |
|
|
2 |
Inverter |
Panasonic |
1.5kw |
|
3 |
Inverter |
Panasonic |
0.4kw |
|
4 |
Solid relay |
Shanghai Chaocheng |
|
|
5 |
Power switch |
FUJI |
30A |
|
6 |
Photocell |
SUNX |
|
|
7 |
Touch screen |
HITECH |
|
|
8 |
Temp. controller |
OMRON |
|
|
9 |
Motor |
VTV |
|
|
10 |
Bearing |
NSK |

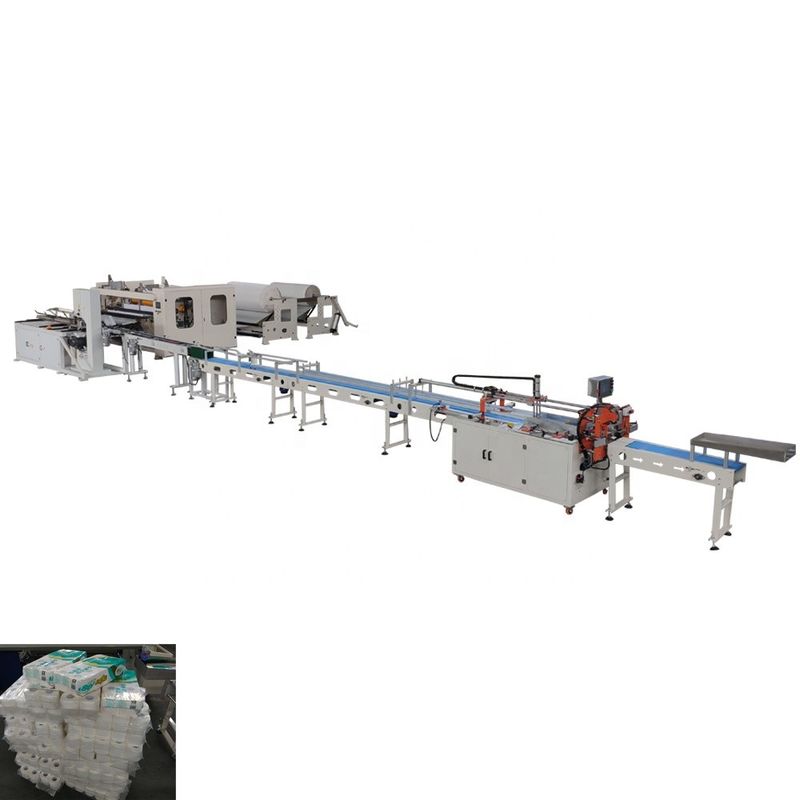

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

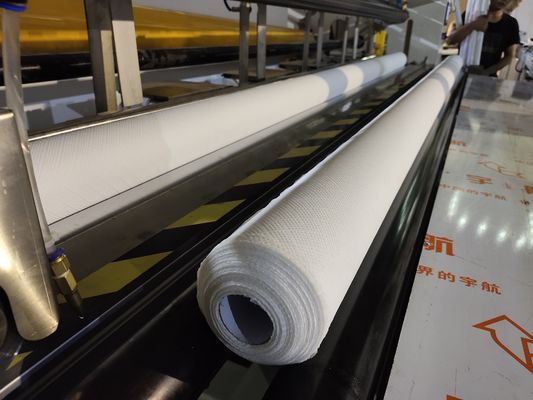

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Specification:
Machine Detail Pictures:
Deco Color Lamination Parts:
Finished Products:
