| Place of Origin: | Dongguan, Guangdong, CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-VN-I |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 45days after down payment |
| Supply Ability: | 2 sets per month |
| Folding Type: | Vacuum SIX FOLD | Embossing: | Steel To Paper Or Steel To Steel |
|---|---|---|---|
| Speed: | 1000 Sheets Per Min | Color Printing: | 1 To 4 Color Printing |
| Frequency Converter: | SIEMENS | Motor: | SIEMENS |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 3200*1000*1800mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 5.5KW |
| Product Type: | Napkin Making Machine | Processing Type: | Napkin Making Machine |
| High Light: | 330mm Vacuum Tissue Paper Manufacturing Machine,1000Sheets/Min Tissue Paper Manufacturing Machine,330mm Vacuum napkin making machine |
||

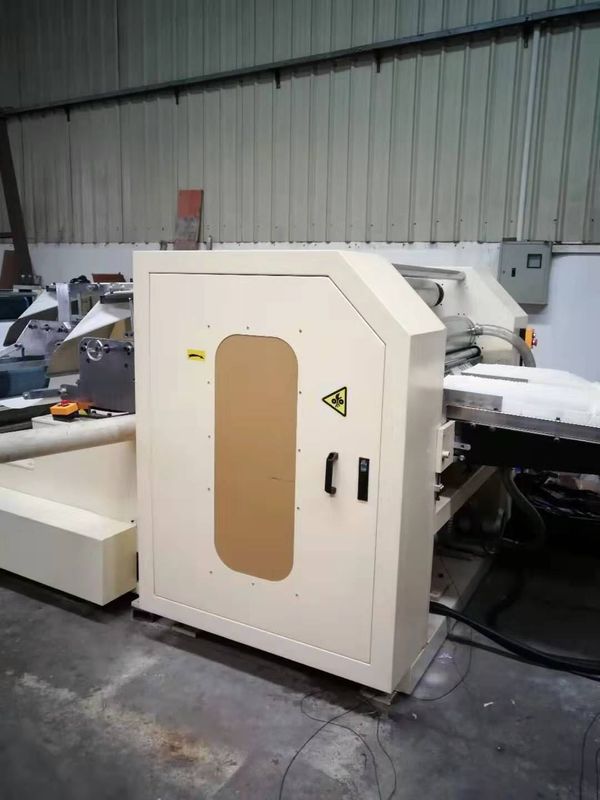

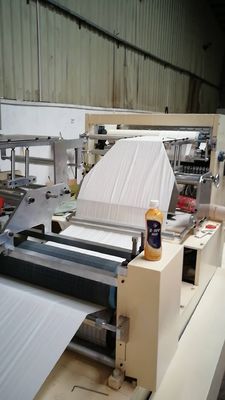

1000 Sheets / Min 330mm Vacuum Tissue Paper Manufacturing Machine
Description
1000 Sheets / Min 330mm Vacuum Tissue Paper Manufacturing Machine is used to make six fold off fold napkin. It possesses reasonable design, stable function, high production output, simple operation and easy maintaining. In addition, it is suitable for various kinds of factory’s productive investment.
Main production process: Jumbo roll tension unwinding—calender press (as your request) —color printing (as your request)—embossing—longitudinal folding—paper feeding—transverse folding—slitting.)
The machine have auto counting unit, the number of the pieces of paper can be decided by you. The machine can be equipped with 1-8 colors printing unit, according to your requests. (The number of the colors different and machinestructure may be different partly)
| Output |
2lines output. 1lines, 3lines and 4lines output available and customized. |
| Speed | 300-400 sheet/min/line x 2lines |
|
Raw material |
13-18g/m2 2-ply virgin tissue; 18-35g/m2 single ply tissue and others |
|
Jumbo roll size |
≤ 660mm x Φ 1200mm (Width x Diameter) Or to be customized. |
|
Unfolded size |
330x330mm±2mm (Other sizes 330x330mm, 430x380mm available.please specify your size) |
|
Folded size |
165x82.5mm±2mm |
|
Folding type |
1/8 fold, 1/6 fold, 1/4 fold, L shape folding and other special folds. Vacuum folding; |
|
Control |
Inverter control Emergency stop Automatic stop if paper breaks or used up. JOG Stepless adjusting speed |
|
Auto count |
1—999 sheets |
|
Embossing |
steel to paper embossing. Any LOGO, words etc. steel to steel optional NEW Embossing Technology available, to be discussed further. |
|
Printing
|
2 colors printing units. (flexo printing and changeable printing pattern) |
|
Cluster ink net grain roller |
|
|
Printing roller can be adjusted |
|
|
Printing contraposition setting |
|
|
In-phase belt, gear drive |
|
|
Stainless steel |
|
|
Back stand |
Strong steel configuration |
|
One back stand |
|
|
Power |
AC380V 50HZ or 220V 60HZ or customized. |
|
Air pressure |
0.5 Mpa(buyer supply) |
Details for Raw Parent Roll
Jumbo roll width: 210mm 420mm(two layers)
Parent roll: 13-20GSM double-ply, 23-25GSM single ply tissue paper
Parent roll core: 3 inch(Dia. 76mm)(other sizes to be ordered)
Parent roll diameter Dia. 1200mm(other sizes to be ordered)
Sheet size: (210x210)mm± 2mm
Folding size: 105x105mm 1/4 fold, 105x70mm 1/6 fold
Unloading stand: One (others to be ordered)
Folding system: Mechanical folding, auto-counting, ring-shape band saw cutting
Controlling system: Frequency speed controlling, Magic-eye detecting
Production speed: 200m/min/(speed differs according to different parent roll)
Installed power: AC380V 50Hz 3.75KW
Air pressure: 0.5Mpa(prepared by the purchaser)
Six Fold Off Fold Napkin
