| Place of Origin: | China |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-PT-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 50 work days after down payment |
| Payment Terms: | L/C, T/T |
| Fold Type: | Single Fold | Speed: | 1000 Sheets Per Min |
|---|---|---|---|
| Embossing: | Steel To Steel | Frequency Converter: | Delta |
| Pneumatic Parts: | AIRTAC | Photoelectrical Switch (magic Eye): | Omron |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Paper Towel Machine | Processing Type: | Paper Towel Machine |
| High Light: | 1000 Sheets/Min Tissue Paper Production Machine,7.5KW Hand Tissue Paper Production Machine,7.5KW Hand tissue folding machine |
||
Embossing Laminated Paper Towel Making Machine , Hand Paper Towel Folder Machine
Specification for FULL AUTOMATIC FACIAL & HAND TO...
Description

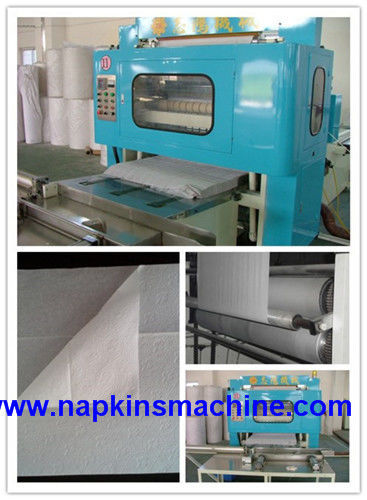

Interleaved Hand Towel Paper Folder Embossing Lamination Machine slitting hand towel through embossing, interaction
fold into “N” type , when using the first piece comes out with the second piece. The
products are widely used in hotel, office and kitchen for hands, convenient and
health. The machine base paper applicability, folding, cutting, counting multi-channel working procedure, is characterized by high speed, the paper is neatly.
Function and Features

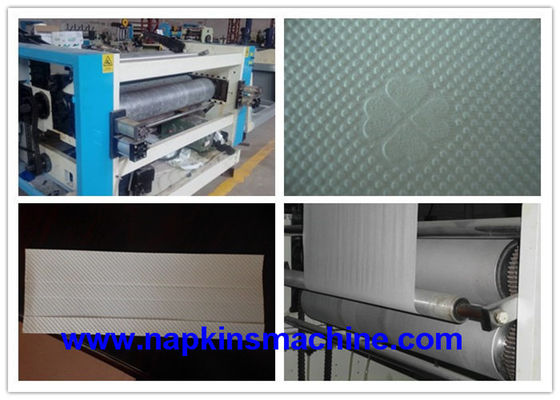

1. Configuration Pneumatic embossed steel to steel, pneumatic separator
2. Back pressure on the use of paper planes paper, non-polar ratio adjustment, adjusting the tension of base paper.
3. The use of Roots vacuum adsorption system, inspiratory capacity and stable operation.
4. Break automatic shutdown system, to avoid breaking free paper or paper waste generated.
5. The use of traction before and after the switch to move the base, operation is more simple and more secure
The Main Technical Parameters
| Max.jumbo roll width | 920mm(4Lanes) |
| Max.jumbo roll diameter | Standard φ1100mm unless otherwise specified |
| Qty of unwind stand | 1 standing |
| Jumbo roll core’s inner diameter | Standardφ3”(76.2mm) unless otherwise specified |
| Data setting | HMI |
| Programming controller | PLC |
| Operate speed | (60-160m/min) x2 |
| Expand size | Φ230*230mm |
| Folding size | Φ115*230mm V- folding |
| Power | 5.5kw 380V 50HZ 3P |
| Mechanical driving | Driving by Step less gear box |
| Transmission | by belt and chain |
| Vacuum fan | Roots Vacuum System,22kw 380V 50HZ 3P |
| Counting | electronic counting |
| Embossing unit | One set: Steel to steel embossing rollers |
| Dimensions | 6x2.4x2 (length x width x height);(m) |
| Weight | 3T |
