| Place of Origin: | China |
| Brand Name: | YUSHENGDA |
| Certification: | CE |
| Model Number: | SYM-NPK-II |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 28000 |
| Packaging Details: | Wooden pallet at the bottom and plastic film packing for the machine Body |
| Delivery Time: | 60 days after down payment |
| Payment Terms: | T/T |
| Supply Ability: | 20 SETS PER MONTH |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Power(w): | 7.5KW |
|---|---|---|---|
| Condition: | NEW | Weight: | 6500KGS |
| Production Capacity: | 100-200Bags/min | Name: | Toilet Paper Making Machine/tissue Paper Manufacturing Machine, Paper Napkin Equipment Converting Machine To Make Square Napkin, Automatic Paper Napkin Making Machine Price, Napkin Tissue Paper Machine, Toilet Paper Making Machine |
| Speed: | 100-200Bags/min | Packing Material: | CPP With Thickness Of 40 Microns |
| Product Type: | Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Napkin Making Machine | Certification: | CE |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Warranty: | One Year |
| Dimension(l*w*h): | 6200*2200*2200mm | ||
| High Light: | 100Bags/Min Toilet Roll Packaging Machine,3.2 KW PP Single Toilet Roll Packaging Machine,3.2 KW Single tissue paper production machine |
||

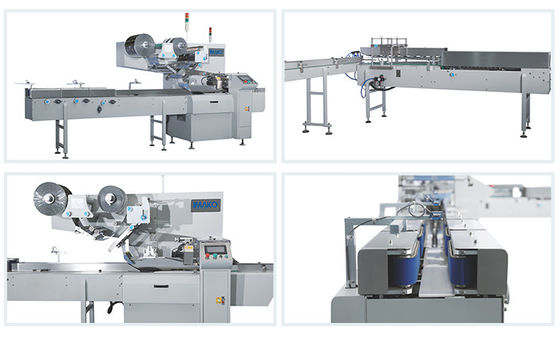

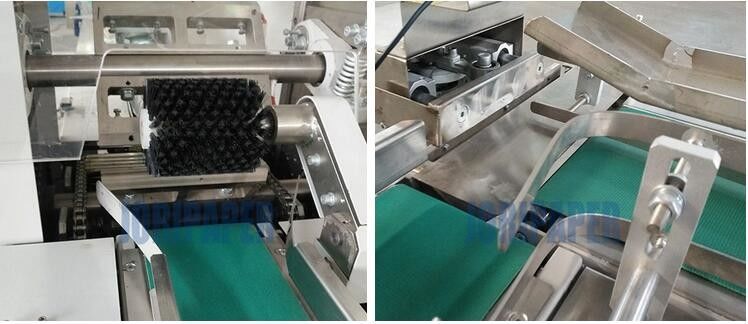

Automatic Single Toilet Roll Packing Machine For Plastic Soft Bag Wrapping
Description
Full Automatic Single Toilet Roll Packing Machine For Plastic Soft Bag Wrapping is suitable for packing rectangular and square objects, such as non-highly tight tissue, square tissue,
napkins, etc.
And the length of product adopt double frequency converter, stepless speed change, various range adjustment,, automatic clear up the packing product, and make it enter packaging machine.
This machine can match with front-end production very well. The length of finished bag will be accurate tracked by high sensitivity sensor. It will not need to adjust by manual as soon as set. Individual control temperature for each sealing.It suitable for many kind of wrapping material.
Specification
| End sealers diameter (mm) | 114 | |
| Packing speed (pack/min) | 35-120 | |
| Film width (mm) | 430/330 | |
| Bagging size range | Roll diameter | 113/93 |
| Bagging length | adjustable | |
| Total Power k) | 3.2 | |
| Main motor power (kw) | 0.75+0.2 | |
| Net weight (k) | 900 | |
| Noise (dB) | ≤78dB | |
| Percentage of pass (%) | ≥97% | |
| Sealing pressure (N/mm²) | 15 | |
| Outer dimensions (L×W×H) (mm) | 4240x1005x1750 | |
| Power supply type | 220V 50HZ | |
| Packing material | BOPP,PE/OPP,CPP, PP | |
| Packing material thickness | 0.020-0.035 (mm) | |
Main functions
1. Capacity: 50 to 80 packs/minute (subject to the material and thickness of film as well as product size)
2. Product size limits:
Length: 70 to 400mm, Width: 32 to 200mm, Height: 5 to 105mm
3. Floor space (L x W): packaging machine 4400 x 1085mm
4. Power consumption: packaging machine 2.8kw
5. Total weight: Packaging machine 1200kg
6. Packing material: all kinds of film such as PVC, CPP and OPP
Electric Assembly Parts
| No | Part name | Brand | Remarks |
| 1 | Main control panel | Soontrue | |
| 2 | Inverter | Panasonic | 1.5kw |
| 3 | Inverter | Panasonic | 0.4kw |
| 4 | Solid relay | Shanghai Chaocheng | |
| 5 | Power switch | FUJI | 30A |
| 6 | Photocell | SUNX | |
| 7 | Touch screen | HITECH | |
| 8 | Temp. controller | OMRON | |
| 9 | Motor | VTV | |
| 10 | Bearing | NSK |
High Quality Facial Tissue Machine Paper Product Making Machinery
Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.
1.Can order steel to rubber embossing rolls,pneumatically separated.
2.Wallboard rack and Machine running stability and extremely good and fast.
3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.
4.Equipped with roots type vacuum pump for stable running of the machine.
5.Make various products width as requirement.
6.Equipped with edge embossing unit to keep the plise together.
7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.
1. Specification of Facial Tissue Folding Machine:
2. Specification of Single Channel Log Saw Cutting Machine:
3. Specification of Facial Tissue Packing Machine:
1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.
Final Products:
4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:
Final Products:
