| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-FTM-I |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 40 Days after down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets Per Month |
| Bearing: | Made In Japan | Speed: | 4800 Sheets/min |
|---|---|---|---|
| Motor: | Siemens | Touch Screen: | Siemens |
| Steel: | NO 45 Steel | Structure: | Wall Board |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Facial Tissue Making Machine | Processing Type: | Facial Tissue Making Machine |
| High Light: | 210mm Size Tissue Paper Maker,100draws/Min Tissue Paper Maker,PLC facial tissue production line |
||
100 draws / Min Tissue Paper Maker , 210mm Size PLC Facial Tissue Production Line
Description

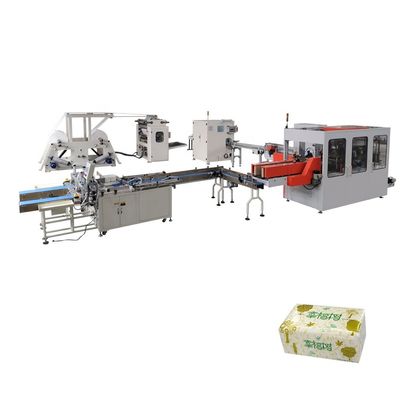

100 draws / Min Tissue Paper Maker , 210mm Size PLC Facial Tissue Production Line is
consists of the following THREE parts:
1. Automatic High Speed Facial Tissue Paper Folding Machine
2. Automatic Single Lane Log Saw Cutting Machine
3. Automatic Facial Tissue Paper Packing Machine
It converts the jumbo roll into folded facial tissue paper. The whole line work smoothly and run stable, saving the labor cost. It’s best choice for the producing facial tissue paper.
Specification
|
Unfolded size |
L:200*W:100-210mm |
|
Folded size |
L:100*W:100-210mm |
|
Max width of jumbo roll |
1470mm for 7lines |
|
Max dia ofjumbo roll |
1500mm |
|
Dia of jumbo roll core |
3"(76.2mm) |
|
Jumbo roll specification |
Face tissue:12-18GSM*2ply |
|
Hand towel:35-42GSM*1ply |
|
|
Machine Speed |
Face tissue:800-100draws/line/min |
|
Hand towel:600-800draws/line/min |
|
|
Driving mode |
Timing belt |
|
Programm control |
PLC Siemens |
|
Data setting |
Touching Screen |
|
Vacuum system |
One set of roots vacuum bump |
Main Specification
Face Tissue Paper Production Flow Chart : unrewinding jumbo roll --embossing unit ---folding unit ----slitting (cutting) ---counting ---output.
1. Jumbo roll stands: 2 : Wallboard type strcutuer, 20mm thickness steel plate
2. Mian machine structure: Wallboard type strcutuer, 50mm thickness steel plate
3. Equipped with pneumatic type wide belt to convey paper,each jumbo roll has independent tension adjustor and left-right adjusting device.
4. Pneumatic lifting jumbo roll unit to reduce the labor strength.
5. Auto stop when paper breaks to decrease the waste of paper
6. Cutting width is adjustable from 100-210mm freely.
5. Optional Units: embossing unit and edge embossing unit.
8. Roots vacuum bump absorbing system with strong suction,negative pressure is stable.
9. adopts advanced Siemens PLC computor program control, Siemens frequency invertor to adjust speed ,
10. auto counting and arrange piles,with touching screen Parameter Settings
11. Embossing unit: Steel to Steel
Electrical Parts and other Parts brand
|
NO |
Name |
Brand |
Original Place |
|
1 |
Motor |
Siemens |
China |
|
2 |
Pneumatic Parts |
Omron |
Germany |
|
3 |
Vacuum Pump |
Longtech |
Taiwai |
|
3 |
Frequency converter |
Delta |
Taiwai |
High Quality Facial Tissue Machine Paper Product Making Machinery

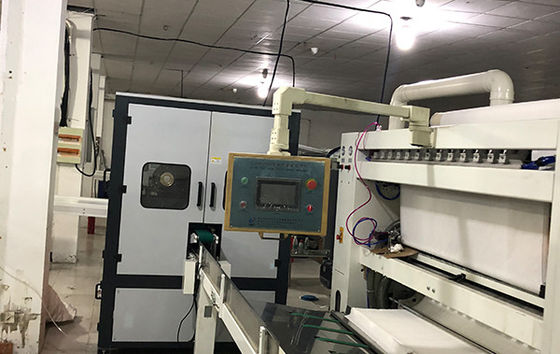

Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.
1.Can order steel to rubber embossing rolls,pneumatically separated.
2.Wallboard rack and Machine running stability and extremely good and fast.
3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.
4.Equipped with roots type vacuum pump for stable running of the machine.
5.Make various products width as requirement.
6.Equipped with edge embossing unit to keep the plise together.
7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.
1. Specification of Facial Tissue Folding Machine:
2. Specification of Single Channel Log Saw Cutting Machine:
3. Specification of Facial Tissue Packing Machine:
1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.
Final Products:
4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:
Final Products:
