1092mm Length 2 Rolls / Cut PLC Tissue Paper Cutter

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-LSW-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	40 Days after down payment
Payment Terms:	L/C, T/T
Supply Ability:	5 Sets/ Month

Contact Now

Detailed Product Description

Speed:	150 Cuts/min	Channel:	One Channel
Application:	Cutting Toilet Tissue Roll	Log Length:	1400-3200mm
Log Diameter:	90-150mm	PLC:	Delta
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Paper Cutting Machine	Processing Type:	Paper Cutting Machine
High Light:	1092mm Length Tissue Paper Cutter , 2 Rolls/Cut PLC Tissue Paper Cutter , 2 Rolls/Cut PLC tissue paper machinery

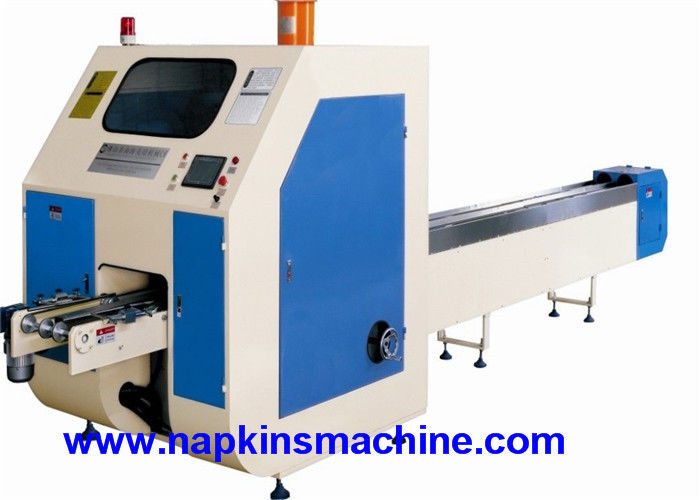

High Precision Toilet Paper Roll Log Cutting Machine , PLC Program Control

Description

Toilet Roll Log Cutting Machine Tissue Paper Cutting Machine is used for toilet roll cutting.It Equipped with touch screen person-to-computer control, production parameter, production trouble can be showed on the screen

Specification

Rolled core length	1092-3500 Different in rolled core length, different in machine price.
Finished products diameter	110±5mm (other sizes from 90-150mm can be ordered)
Horizontal cutting length	Changeable, Servo control, Tolerance ±1mm
Machine speed	(100-150 cuts/min, 2 rolls/cut)
Operation speed	(120cuts/min, 2 rolls/cut)
Function model	rotating the round blade & Continued Paper Roll Marching
Driving control	Servo motor driving
Knife grinding	Pneumatic grinding wheel, time can be controlled on panel.
Round blade outer diameter	610mm
Clamping tool	Exchangeable (outer diameter of finished core can be designated.)
Finished products specification:	Rolled core outer diameter	90mm-150mm
	Cutting length	50mm-300mm
	Left-over length	25mm-50mm
Power	7.5KW
Machine size	LXWXH (M) = (7-9) X 2 X 1.8 M
Weight of equipment	3T

Feature

1 . Speed: Up to 75 cuts/minute

2 . Paper width: 1800mm For other size please appoint

3 . Log diameter: 140mm-400mm

4 . Blade: 1000mm

5 . In-feed: single lane, adjustable in-feed stainless steel channels;

6 . 2 sets of clamps to be supplied with the saw for the diameters required by the customer, the extra clamps for other diameters are going to be charged at cost.

7 . Automatic blade sharpening system.

8 . Automatic blade lubrication-cooling system.

9 . Automatic control clamp system.

10 . Servo drive system for any cutting length desired within range of 90mm 200mm.

11 . Push button adjustment on the height of blade;

12 . Air dish brake

13 . Guarding: Except the infeed, the saw is enclosed with heavy frames, with 2 doors on each side, with safety inter-lock switches on each door.

14 . MITSUBISHI PLC control.

15 . MITSUBISHI touch screen operation panel;

16 . Installed power:15 KW;

17 . Voltage: 380V/50HZ, 3 phase;

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
