| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-FTM-I |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 40 Days after down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets Per Month |
| Bearing: | Made In Japan | Speed: | 4800 Sheets/min |
|---|---|---|---|
| Motor: | Siemens | Touch Screen: | Siemens |
| Steel: | NO 45 Steel | Structure: | Wall Board |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Facial Tissue Making Machine | Processing Type: | Facial Tissue Making Machine |
| High Light: | 11KW Facial Tissue Production Line,0.5Mpa Facial Tissue Production Line,18g/m2 Facial Tissue Packing Machine |
||

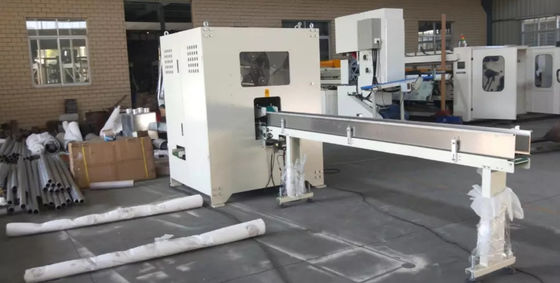

Facial Tissue Production Line Facial Tissue Folding Machine And Packing Machine

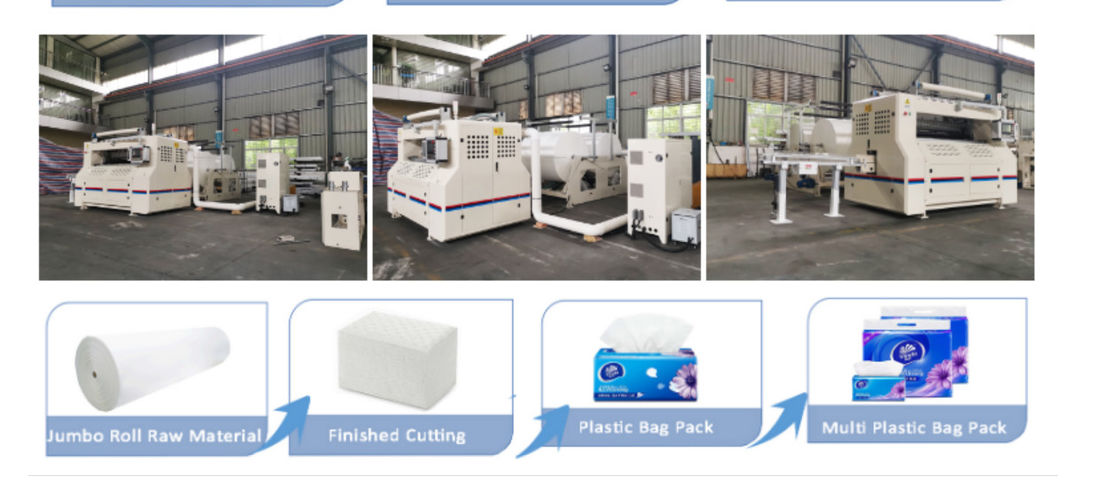

The whole line is with Facial tissue machine, conveyor, facial tissue log saw cutting machine and plastic film packing machine
Description
Professional Facial Tissue Machine Price 5 In 1 For Sell Can Do V Fold Paper is with the functions of embossing, slitting, folding, counting, and dividing,auto-taking, auto-transporting, auto packing in one, which the whole production process is fullfiled automatically. this production line has the advantages of simple operation,high production efficiency, and keeping the consistent of the finished products, with the fully automatic production, the amount of production labour can be reduce, so to save the production and managing cost greatly.
Specification
|
Model |
2L |
3L |
4L |
5L |
6L |
10L |
Other sizes to be specified. |
||
|
Jumbo roll width |
400mm |
600mm |
800mm |
1000mm |
1200mm |
2000mm |
|||
|
Unfolded size |
200x200mm±2mm 210x210mm±2mm 250x230mm±2mm |
||||||||
|
Folded size |
200x100mm±2mm 210x105mm±2mm 250x115mm±2mm |
||||||||
|
Jumbo roll diameter |
≤1200mm. |
||||||||
|
Inner core diameter |
3”(76mm) |
||||||||
|
Raw Material |
13-18 g/m2 for 2 plies, 18-35 g/m2 for single ply wooden pulp tissue. Other g/m2 to be customized. Other material like Nonwoven or Airlaid to be customized. |
||||||||
|
Production Speed |
900-1200 sheet/min/lane, depending on sizes, paper quality and workers operation. |
||||||||
|
Folding Section |
Vacuum folding with vacuum pump. V fold/Interfold. N fold, M fold, C fold or special folding to be customized. Upper blades fixed, bottom blades rotating. |
||||||||
|
Unwinder Section |
Two Back Stand. Automatic loading jumbo roll pneumatically. With wide flat belt driven. With tension system manually adjusted by cone pulley Driven by independent motor, each jumbo roll controlled by an independent motor. NO chain. |
||||||||
|
Embossing section |
Steel to rubber embossing units. Pneumatic control system. Controlled by cylinders. With felt oil wiper for removing static electricity, tissue wastes, and dusts from the rollers. |
||||||||
|
Tension system |
Manually adjusted by cone pulley or speed controller. |
||||||||
|
Counting system |
Pneumatic counting. Left-Right stagger counting or ink mark. |
||||||||
|
Control system |
Frequency speed control (inverter control) JOG function Emergency stop function Auto stop if paper breaks. Optical sensor detecting |
||||||||
|
Installed Power |
4-11KW for main motor, 7.5-37KW for vacuum pump, 3phase 380V 50hz or customized. |
||||||||
|
Air Pressure |
0.5Mpa(prepared by the customer). |
||||||||
|
Cutting System |
|||||||||
|
Cutting machines |
Log Saw |
Auto Band Saw |
|||||||
|
Cutting Speed |
80-130 cut/min/channel x 1 or 2 channels |
40-70 cut/min |
|||||||
|
Workable tissue bundle sizes |
width: 45 mm - 120 mm, Adjustable Height: 30mm -140 mm, Adjustable Length: 200-2800mm of arbitrary length servo tracking (adjustable) |
||||||||
|
Cutting sizes |
Servo tracking, adjustable. |
||||||||
|
Control system |
Servo tracking, PLC control, LCD touch screen display. |
||||||||
|
Installed Power |
8KW , AC380V 50hz or customized. |
4KW , AC380V 50hz or customized. |
|||||||
|
Packing System |
|||||||||
|
Machines |
Fully-auto Carton Box Packing Machine |
Fully-auto Soft Type Plastic Packing Machine |
|||||||
|
Packing Speed |
25-30 box/min |
60-75 bag/min |
|||||||
|
Installed Power |
0.75Kw for main motor 2.4Kw for Heating power, 3phase 380v 50hz or customized. |
5.4Kw for main motor 3.6Kw for Heating power, 3phase 380v 50hz or customized. |
|||||||
|
Optional Items |
|||||||||
|
Lamination Section |
Nested to nested or Point to point Lamination. |
||||||||
|
Embossing Section |
Steel to steel or steel to rubber. Newly-innovated embossing technology. |
||||||||
|
Printing Section |
1-4 colors flexographic printing Water-based ink printing Ceramic anilox Drying system Closed printing system |
||||||||
|
Auto Web Guide System |
Electrical system |
||||||||
|
Auto web tension system |
Famous brand |
||||||||
Main Specification
Speed: 4800sheets/min
Folding Type: Interfold
Edge Embossing
Frequency Converter Delta
Motor: Siemens
Pneumatic Parts AIRTAC
20mm thickness wall board plate for back stand
40mm thickness wall board plate for embossing unit
30mm thickness wall board plate for cylinder folding parts
Photoelectrical switch (magic eye) Omron
Electrical Parts and other Parts brand
|
NO |
Name |
Brand |
Original Place |
|
1 |
Motor |
Siemens |
China |
|
2 |
Pneumatic Parts |
Omron |
Germany |
|
3 |
Vacuum Pump |
Longtech |
Taiwai |
|
3 |
Frequency converter |
Delta |
Taiwai |
