1200mm PLC Control Laminated Toilet Roll Making Machine

1200mm PLC Control Laminated Toilet Roll Making Machine

1200mm PLC Control Laminated Toilet Roll Making Machine
video

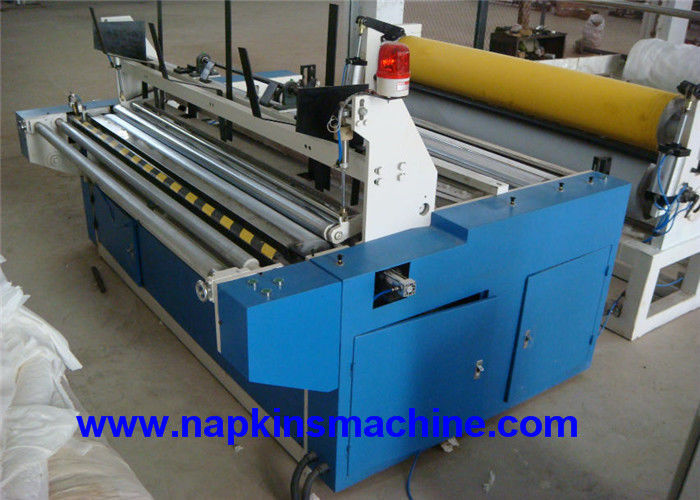

1200mm PLC Control Laminated Toilet Roll Making Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-TPM-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: We use three-ply board to pack the toilet paper machine into standard export wooden cases and provide you the Fumigation Certificate for free
Delivery Time: 40 Days After Down Payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets Per Month
Contact Now
Detailed Product Description
Raw Paper Width: 1800mm Speed: 200m/min
Product Type: Toilet Tissue PLC: DELTA
Embossing: Steel To Rubber Motor: Siemens
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Toilet Paper Making Machine Processing Type: Toilet Paper Making Machine
High Light:

1200mm Toilet Roll Making Machine

,

PlC Control Laminated Toilet Roll Making Machine

,

PlC Control Laminated tissue paper maker

Laminated Small Toilet Paper Making Machine 1200mm With Plc Programming Control





Description



Full Automatic Toilet Tissue Roll Embossing Point to Nest Lamination Machine converts the jumbo roll into small toilet rolle. It adopts the advanced PLC computer programming system, speed adjust by inverter, electronic braking, HMI operation panel . And it is no doubt for this machine to obtain the state patent with all the excellent and practical configurations installed on this machine.





Parameter



Machine type

1092

1575

1760

2200

2500

2800

3000

3200

Max width of raw paper

1300mm

1800mm

2000mm

2200mm

2500mm

2800mm

3000mm

3200mm

Outer Dia. of raw paper

1200mm(other size to be specified)

Paper unwinding stand

1-3 layer (The Qty. of raw paper rolls to be specified)(to be ordered)

Inner Dia. of raw paper core

3”(76.2mm)(other size to be specified)

Parameter setting

HMI Operation interface/touched screen

Programming control

PLC

Braking

Electronical /Air pressure control

Machine speed

0-200m/min

Operating speed

0-180m/min

Outer Dia. of finished product

90-135mm(other size to be specified)

Inner Dia. of finished product core

25-50mm

Control of the outer Dia. Finished

Electronical /pneumatic

Perforating

4 pieces of Anvil soft blades, size is 108±2mm (other size to be specified)

Perforating size

Be adjustable

Pneumatic system

3HP Air compressor, with the min. pressure is 5kg/cm2pa(supplied by user)

Control voltage

Stable voltageDC24V

Mechanical structure

Wall plate type

Mechanical transmission

Stepless Gearbox

Transmission method

Link Chain

Power

5.5-22kw Variable Frequency speed regulating

Control of perforating



Pneumatic

Additional function(to be ordered)

Embossing

Single embossing, double embossing, steel to steel embossing, pneumatic embossing

Edge –embossing

Special pneumatic edge embossing device

Gluing

Kitchen towel: point to point gluing/point to side gluing

Decorative glueing system

Pattern is as per the embossing design





Feature



1. Advanced PLC computer programming technology is applied to full automatic toilet paper rewinding machine. The winding profiles can be tight at the beginning of winding, and then getting loose, to avoid the problems that the cores are loose from the rolls after long time storage.


2. It is equipped with frequency control, electronic brake(EABS), and touch-screen interface operation system. Automatic trimming, gluing, sealing, punching, auto feeding, removing shaft and squashing are integrated in one. Ensuring lower consumption when the roll paper is feed into band-sawing machine. So products are of high grade and high efficiency.


3. It is equipped with coreless rewinding system, reducing labor costs, making products more beautiful.


4. With high precision screwy perforation knife. With 4 perforation blades to make low noise and high definition when perforating. The perforating pitch is controlled by gearbox.


5. Automatic detection of paper break and wrap up, to guarantee the high quality of the finished rolls even in the high speed operation.


6. Coreless rewinding system has changed traditional method to take out the core to make high quality solid coreless roller. Reducing the manpower.


7. With three-layer horizontal unwinding stand, pneumatic feeding system. Each roll of raw paper has its individual control unit for tension adjusting device.


8. The web can be threaded on the machine by the two jog buttons, it is more safe and easier to feed the web.



Technical Requirement



Raw Paper



(1)Size:  Diameter≤1100mm, (Raw Paper Diameter*Width);

(3)Inner Diameter:  76.2mm

Paper-feeding part



(1)Three Layers and Belt to deliver paper and controlled by Pump;

(2)Three pieces original axis with Tension clamp (3 inch paper core and Shaft sleeve); Size adjustable;

(3)Pneumatic Loading Paper Device

(4)Raw Paper Manual Adjustment



Automatic coreless device



Embossing Part



(1)One set steel to rubber embossing unit (Embossing pattern offered by buyer)



Rewinding Part



(1)Inner Diameter Adjustable Rang:  15mm-60mm

(2)Diameter of finished products:  90-130 mm

(3)Full automatic adjust rewinding perforation size

(4)Using Upper leading paper type rewinding finished products and jog button to lead raw paper

(5)Using the international advanced PLC computer programming technology, Variable frequency speed regulation and HMI interface

(6) Sealing:  automatic trimming, adhesive, sealing



Control part



(1)Emergency Device;

(2)Voltage: AC380V 50HZ Main Motor 7.5KW,

(3)Air pressure required less than 0.5 MPA (Supplied by the user)

(4)Electromagnetic speed regulating device





Electrical Parts and other Parts brand



NO

Name

Brand

Original Place

1

Frequency Panel

Siemens

Germany

2

Motor

Siemens

Germany

3

Pneumatic Parts

Schneider

Germany

4

Knife bearing

NSK

Japan

5

Steel

SKD

Japan

6

Touch Screen

Delta

Taiwan



Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

1200mm PLC Control Laminated Toilet Roll Making Machine 0



Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model
1092B
1575B
1760B
2150B
2200B
2500B
2800B
Jumbo Roll Max. width
1350mm
1750mm
1880mm
2000mm
2150mm
2400mm
2750mm
Max. Jumbo Roll diameter

2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings

Standardφ3"(76.2mm) (Other sizes specified)

Data setting

HMI
Programming controller

PLC, touch screen

Operate Speed

0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
φ90-140mm
Finished Log Inner dia.
φ38-76mm
Perforation Distance
100-150mm
Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 7.5-15KW 380V,50HZ

Embossing unit

Steel to rubber

Dimensions
6x3x1.7 (length x width x height);(m)

Weight
3T-4T(depends on the Model you have )

Options:

Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit

1-2 Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic

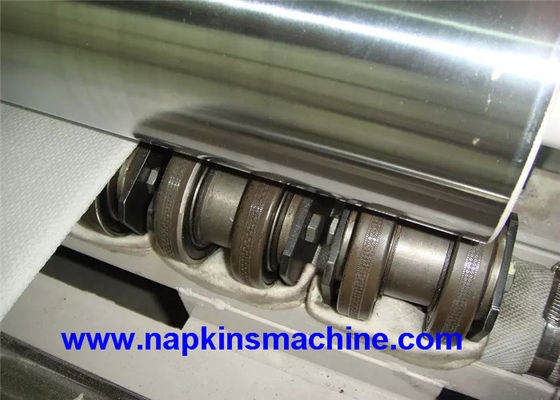

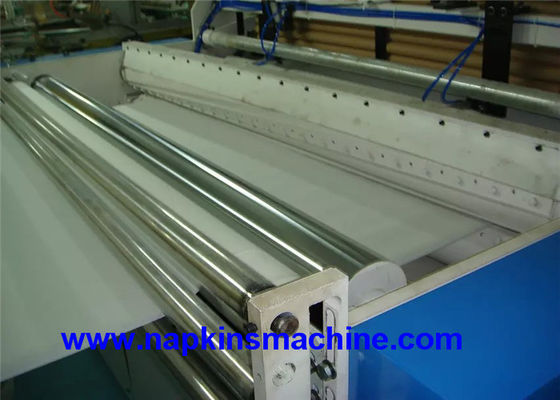

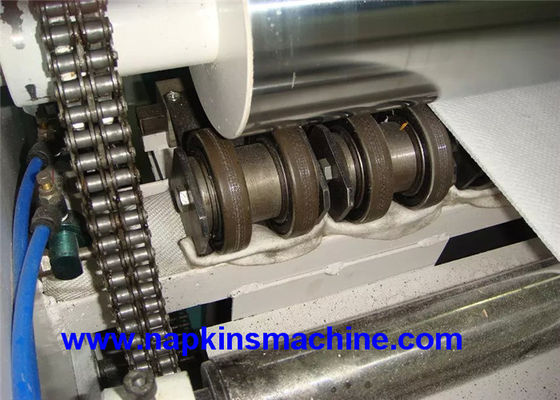

Machine Detail Pictures:

1200mm PLC Control Laminated Toilet Roll Making Machine 1
1200mm PLC Control Laminated Toilet Roll Making Machine 2
1200mm PLC Control Laminated Toilet Roll Making Machine 3

Deco Color Lamination Parts:

1200mm PLC Control Laminated Toilet Roll Making Machine 4
1200mm PLC Control Laminated Toilet Roll Making Machine 5
1200mm PLC Control Laminated Toilet Roll Making Machine 6

Finished Products:

1200mm PLC Control Laminated Toilet Roll Making Machine 7
1200mm PLC Control Laminated Toilet Roll Making Machine 8
1200mm PLC Control Laminated Toilet Roll Making Machine 9
