| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-JR-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Days after Down Payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets/Month |
| Application: | Jumbo Roll | Speed: | 200m/min |
|---|---|---|---|
| Raw Parent Roll Width: | 1400-3500mm | Perferation: | 4 PCS |
| Slitting Device: | Optional | Brake: | Electric And Pneumatic Control |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Paper Slitting Machine | Processing Type: | Paper Slitting Machine |
| High Light: | 12.5W Toilet Paper Cutting Machine,2800mm Hardwound Toilet Paper Cutting Machine,2800mm Hardwound roll slitter rewinder |
||

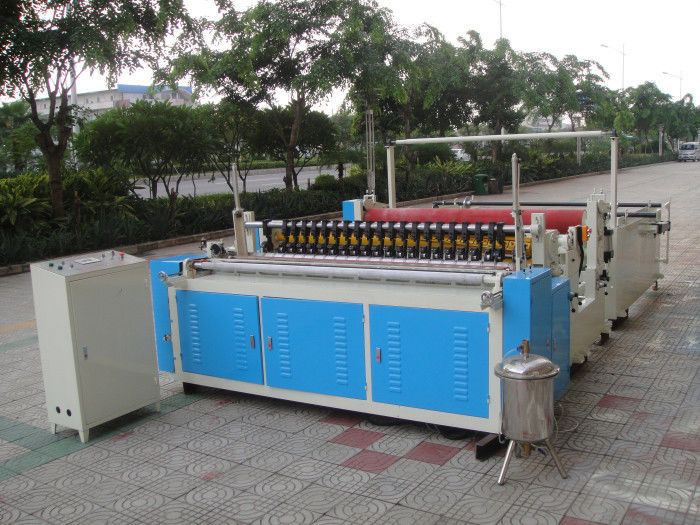

Paper Jumbo Roll Towel And Toilet Tissue Making Machine 2800mm
Description
Hard Wound Jumbo Rolls Towel And Toilet Tissue Making Machine Adopting with advanced PLC programming technology, and variable speed adjustment, electronic brake and human-machine interface operation table. The multi functions mounting on this machine has won the favor and credit among users by their excellent performance.
Specification
|
Max feeding reel length |
2800mm |
|
Finished roll size |
Log dia.:90-160mm (standard dia. will be 110-5mm unless otherwise specified) |
|
Cutting length:50-300mm |
|
|
Log trimming length:25-110mm |
|
|
Driving system |
Servo motor drive feeding belt |
|
Cutting system |
Rotating circular knife movement and continuous tissue forward movement |
|
Designing speed |
150 cuts/min, two stacks per cut |
|
Production speed |
0-120cuts/min, two stacks per cut |
|
Grinding |
Pneumatic grinding, parameter can be set on the control panel |
|
Grinding feeding |
Automatic feeding grinding for circular knife |
|
Knife holding arm height adjustment |
Manually |
|
Dust remove system |
Suction ventilator for dust and hear removal of the two sides grinding wheel |
|
Cooling system |
steady compressed air blowing for cooling |
|
Cutting length adjustment |
On control panel, tolerance ±1mm |
|
Paper cutting vertical tolerance |
±1mm Vertical Tolerance |
|
Power |
12.5W |
|
Mini air pressure requirement |
6Mpa |
|
Gas consumption |
500L/shift |
|
Driving |
Individual motor drive, servo motor, timing belt, flat belt |
|
Protection |
protective cover for the main driving uni |
Functions and Features
1. After unwinding, the paper web will be sent to the calender unit, then to the printing unit for printing, at the end it will rewind into a big jumbo reel again. There is tension controlling unit between the calender unit and rewinding unit.
2. With the professional anilox roller, the ink-apply will be more even, and printing pattern will be more beautiful and precise.
3. The ink-tank will lift and drop synchronized which will simplify the cleaning,. And the external-supply ink-recycle system will make the ink color to be equal.
4. The ink-applying roller will be rotating automatically during break time, so that it can prevent the ink accumulate on the anilox roller, and reduce the wastage of ink when restart machine, which will improve the printing quality.
Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Specification:

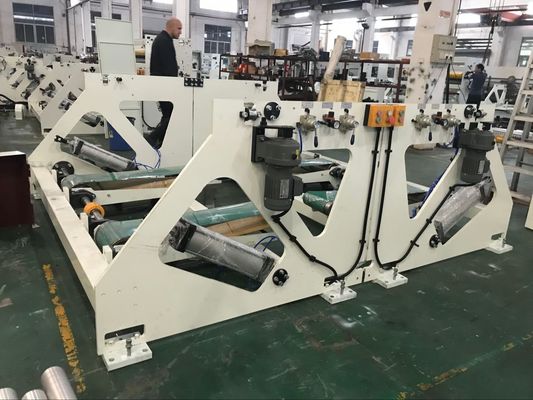

Machine Detail Pictures:
Deco Color Lamination Parts:

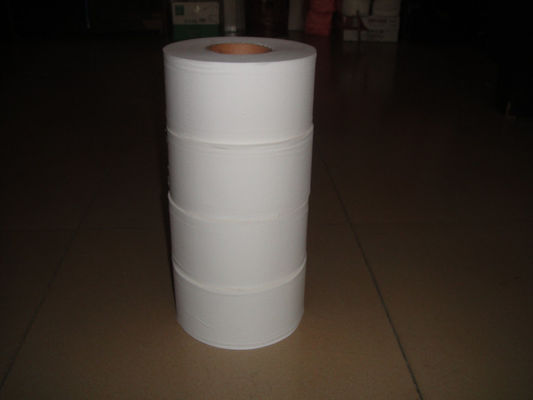

Finished Products:
