Automatic Multi Fold Hand Towel Paper Folding Machine 800 Sheets/min
Description

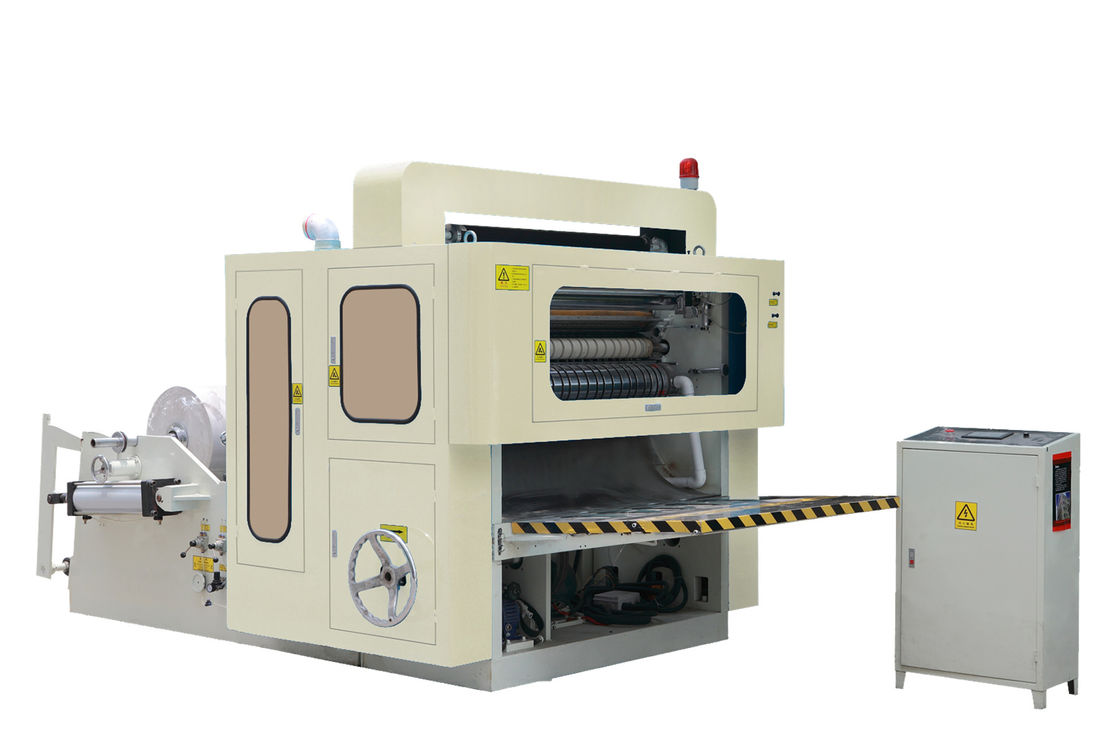

Multifold Hand Towel Paper Folding Embossing Lamination Machine is used to fold paper towel (wet-strength paper)into "N" type crossfolded paper towel after embossingand cutting,
the folded facial tissue can be pulled out one by one by each pulling. The product can widely used in
public place such as hotels and offices etc, and kitchens, for hand cleaning, can be used conveniently
and clean.
Function and Features
-
Production speed: 800 sheets/min.
-
Steel to steel embossing, pneumatic compression.
-
Adopt roots vacuum adsorption of new technology.
-
Automatic pneumatic broken paper separation, convenient to wear paper.
-
Use synchronous belt transmission, the transmission ratio exact, low noise.
-
Paper adapt range, 13-16g/m2 for the facial tissue paper,33-45g/m2 (single ply)
The Main Technical Parameters
|
Production Speed
|
1000pcs/min
|
|
Products Expand Size (mm)
|
190 (length) x130-210 (W adjustable)
|
|
Product folded size (mm)
|
95 (length) x130-210 (W adjustable)
|
|
Maximum production size (mm)
|
630mm
|
|
Equipment, electric power
|
4kw Vacuum fan: 11kw (380v 50hz)
|
|
Weight
|
3.5T
|
|
Dimensions (m)
|
6x2x1.9 (length x width x height)
|
Other Models
|
YD-PT 2L/3L/4L/5L/6L/7L /8L/9L/10L Paper Towel Machine
|
|
Finished Products Unfolded Size (mm)
|
190×200(Other sizes are available)
|
|
|
Raw Material Diameter (mm)
|
Φ1100(Other sizes are available )
|
|
|
Raw Material Core Diameter (mm)
|
76.2mm(Other sizes are available)
|
|
|
Speed
|
600-900Pcs/Line/min
|
|
|
Programmable controller
|
PLC Programmable Controller
|
|
|
Embossing Unit
|
Steel to rubber , steel to steel
|
|
|
Bottom Embossing Roller
|
Felt roller, Paper roller, Rubber roller,steel roller
|
|
|
Edge Embossing
|
Steel to steel, independent adjustment
|
|
|
Automatic Jumbo roll guiding system
|
Option
|
|
|
Slitting unit
|
Pneumatic dot slitting
|
|
|
Lubricating system
|
Automatic key parts regular lubricating
|
|
|
Driving system
|
Timing belt driving system
|
|
|
Counting system
|
Alternate stack by stack
|
|
|
Main Motor Power
|
Frequency conversion speed regulator, 5.5-11 kw
|
|
|
Vacuum suction unit
|
11-32KW
|
|
|
Pneumatic System
|
3 HP air compressor
mini pressure 5kg/cm2 Pa(Provided by client)
|
|
|
Dimension(L×W×H) (mm)
|
6370x(1780-2080)x2130
|
|
|
Weight
|
4500-6500kg
|
|
|
Programmable controller
|
MITSUBSHI Programmable Controller (PLC),
LCD screen operation panel
|
|
|
Power
|
Frequency conversion speed regulator,
Electromagnetic speed-regulation motor
|
|
|
Driving system
|
Timing belt, chain
|
|
|
Embossing Unit
|
Steel to rubber , steel to steel
|
|
|
Bottom Embossing Roller
|
Felt roller, Paper roller, Rubber roller,steel roller
|
|
|
Slitting unit
|
Pneumatic dot slitting
|
|
|
Edge Embossing
|
Steel to steel, independent adjustment
|
|
|
Vacuum suction unit
|
Roots type vacuum pump
|
|
|
Automatic Jumbo roll guiding system
|
Option
|
1.1 Raw tissue paper:
- Parent rolls size: Ø1200mm*1250mm (diameter*width);
- Tissue character: 35-45gsm, single ply wet strengthen wood pulp paper, good air permeability
- Inner core diameter: Ø76mm
1.2. Tissue paper feeding unit:

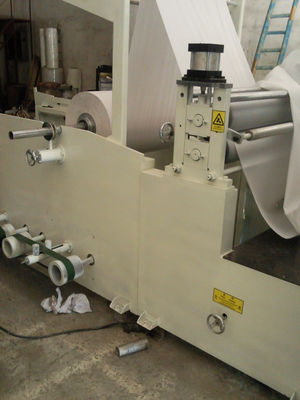

- One set paper stand, flat belt for feeding paper (pneumatic),
- Pneumatic paper-mounting unit
1.3. Embossing unit:
- One set steel roll against steel roll (the pattern as per customer’s requirement.)
- Pneumatic pressing unit
1.4. Folding unit:
- Rotary blade cutting unit (upper blade is fixed)
- Counting function (ink point for counting)
- Folding type: vacuum-absorbing M-fold
- Open size: 240*240±2mm
- Folded size: 240*65±2mm*5lanes
- Capacity: 700 sheets/min*5lanes
- Electrostatic neutralizer unit
1.5. Controlling unit:
- Inverter for main machine
- Roots vacuum pump, includes muffler device
- Emergency function, if tissue is broken, machine stop
- Power supply: 380V, 50Hz, 7.5Kw(main machine) 22Kw(vacuum pump)
- Compressed air: ≥0.55Mpa (supplied by buyer)
N Folding Hand Towel Paper Making Machine process paper material to embossing,cut off and interfold into "N" type. It can be continuous drawing one by one when using.The final products are widely used in hotels, office and kitchen,etc. for hands cleaning. Health and convenient.This machine can apply to folding, slitting, counting together with high speed and output orderliness.
1. Production Speed:(60-100) m/min x3
2. Steel to steel embossing unit
3. Pneumatic broken paper and automatic separation, Convenient to wear paper.
4. Using synchronous belt transmission with lower noise. The transmission ratio is accurate.
5. Base Paper adopt range:33-45g/m2 (single ply).
6. Two layers with glue lamination can be ordered by customers.
|
Model
|
N-2L/3L/4L/5L/6L
|
|
Finished Products Size
|
230L*230±2MM
|
|
Raw Material Width
|
480mm
|
690mm
|
990mm
|
1150mm
|
|
Raw Material Core Diameter
|
76.2mm
|
|
Speed
|
0-100m/min (depending on the machine model)
|
|
Power
|
Frequency conversion speed regulator
|
|
Programmable controller
|
PLC computer controller
|
|
Folding Type
|
Vacuum suction N fold
|
|
Transmission unit
|
Timing Belt
|
|
Counter
|
Ink Marked
|
|
Embossing Unit
|
Steel to steel
|
|
Slitting Unit
|
Pneumatic dot slitting
|
|
Pneumatic System
|
3HP Air Compressoor, mini air pressure 5kg/cm2pm (Provider by customer)
|
|
Total Power
|
11kw
|
15kw
|
15kw
|
22kw
|
|
Dimension
|
4000*(1700-2500) *1900mm ,Depend on the size and configure
|
|
weight
|
2-5 tons, Depend on the size and configure
|
Finished Products Pictures:
Optional Hand Towel Bagging Machine:
Production speed: 6-9 bagss/min
Packing size: length 1150 mm, width 70 mm
Power: 200W 380V 50Hz
Dimensions: 1500*850*700mm
