1400mm Width Paper Napkin Cutting Machine

Large Image : 1400mm Width Paper Napkin Cutting Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-IP-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 Days after Down Payment
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets/Month

Contact Now

Detailed Product Description

Application:	Industrial Roll	Speed:	200m/min
Raw Parent Roll Width:	1400-3500mm	Automation:	Full Automatic
Weight:	3.5Ton	PLC:	Delta
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Toilet Paper Making Machine	Processing Type:	Toilet Paper Making Machine
High Light:	1400mm Width Paper Napkin Cutting Machine , 200m/min Paper Napkin Cutting Machine , 1400mm Width toilet paper production equipment

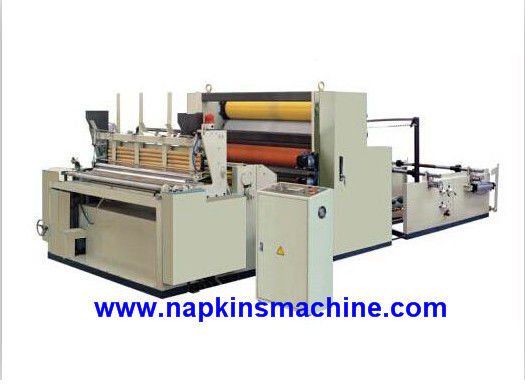

Full Automatic Paper Roll Rewinding Machine For Toilet Tissue Paper

Description

Full Automatic Paper Roll Rewinding Machine For Toilet Tissue Paper is used to slit and rewind the bathroom tissue, non-woven materials. The single ply paper can be slit and rewinded into two, three or four ply paper with various widths, for the production of napkins, hankies, facials or sanitary napkins.

Main Feature

1 . Roll withdraws by air-shaft

2 . Horizontal style paper unwind stand, deliver paper with pneumatic wide belt, with separate web tension control device and sides tension control device in each roll of raw paper.

3 . Steam type on paper greatly reduce the labor intensity.

4 . Edge embossing: with special pneumatic pressing wheel, and high rigidity bottom embossing roller.

Parameter

Machine type	1092	1575	1760	2200	2500	2800	3000	3200
Max width of raw paper	1400mm	1800mm	2000mm	2200mm	2500mm	2800mm	3000mm	3200mm
Outer Dia. of raw paper	1200mm(other size to be specified)
Paper unwinding stand	1-3 layer (The Qty. of raw paper rolls to be specified)(to be ordered)
Inner Dia. of raw paper core	3”(76.2mm)(other size to be specified)
Collect scroll	Roll withdraws by air-shaft
Machine speed	0-200m/min
Operating speed	0-180m/min
Outer Dia. of finished product	90-350mm(other size to be specified)
Inner Dia. of finished product core	3”(76.2mm)(other size to be specified)
Mechanical structure	Wall plate type
Transmission method	Link chain
Perforating	2 pieces of Anvil soft blades
Main transmission	4-22kw Variable Frequency speed regulating
Perforating size	With 4 pieces of blade size:90-140mm
Control of perforating	Pneumatic
Calender roller	Steel to rubber
*Automatic trimming and sealing	Synchronized finished of automatic paper trail trimming,spraying adhensive and sealing
*Edge –embossing	Special pneumatic edge embossing device

Electrical Parts and other Parts brand

NO	Name	Brand	Original Place
1	Frequency Panel	Delta	Taiwan
2	Motor	Jiangcheng	China
3	Pneumatic Parts	Airtac	Taiwan

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

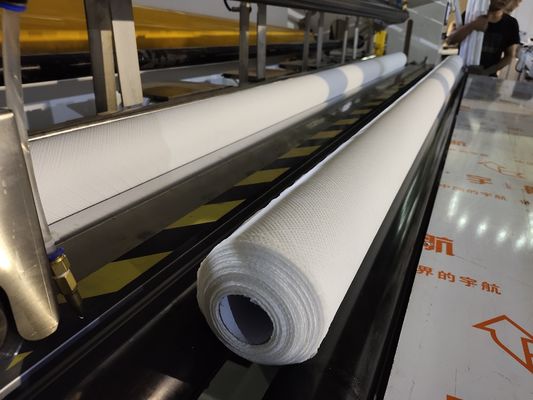

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
