150 m / Min Toilet Roll Making Machine

150 m / Min Toilet Roll Making Machine

150 m / Min Toilet Roll Making Machine
  • 150 m / Min Toilet Roll Making Machine
  • 150 m / Min Toilet Roll Making Machine
  • 150 m / Min Toilet Roll Making Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-IP-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 40 Days after Down Payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets/Month
Contact Now
Detailed Product Description
Application: Industrial Roll Speed: 200m/min
Raw Parent Roll Width: 1400-3500mm Perferation: 2 PCS
Motor: Siemens Touch Screen: Delta
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Toilet Paper Making Machine Processing Type: Toilet Paper Making Machine
Highlight:

150m/Min Toilet Roll Making Machine

,

150m/Min toilet paper roll machine

,

150m/Min tissue paper roll making machine

Steel Embossing Paper Roll Rewinding Machine And Toilet Roll Cutting Machine



Description

High Performance Big Toilet roll Cutting and Rewinding Machine has the function of producing both Jumbo Toilet Tissue(Industrial roll) and normal Toilet roll. The

slitting and rewinding can be synchronized done



Specification



Machine Model

1092

1575

2000

2200

2500

2800

3000

Raw Material Width

1300

1800

2000

2200

2500

2800

3000

Finished Roll Diameter (mm)

Φ90~300 ((Tightness adjustable) )

Raw Material Diameter (mm)

Φ1200 mm (Other sizes are available )

Raw Material Core Diameter

76.2 mm Other sizes are available)

Perforation(mm)

90~160mm

Speed

150-200 m/min

Rewinding

By air-shaft

Embossing Unit

Single ply embossing, double ply embossing, steel to steel embossing

Bottom Embossing Roller

Felt roller, Paper roller, Rubber roller

Unwinding Unit

1-3ply

Calendering

Steel to steel, steel to rubber

Pneumatic System

3 HP air compressor, Mini pressure 5kg/cm2 Pa(Provided by client)

Power

4.5-11 kw

Dimension(mm) (L×W×H)

6200x2600x1800~6200x4000x1800 mm

Weight

depend on the size and configure

Option



Embossing Unit

Single ply embossing, double ply embossing, steel to steel embossing

Bottom Embossing Roller

Felt roller, Paper roller, Rubber roller

Unwinding Unit

1-3 ply

Edge Embossing Unit

Option

Calendering Unit

Steel to steel, steel to rubber

Tail Suction Unit

Vacuum tail suction function, 1.5kw

Tail Sealing Unit

Option

Driving system

Frequency conversion speed regulator



Functions and Features


1 . Rewingding control: automatic pneumatic proportional valve controls linear slide rail lifting,hydraulic servo system controls riding roller, pneumatic grasping rewinding shaft.

2 . Slitting bottom blade: one piece blade shaft or movable double-blade knife; bottom blade easy change function.

3 . Rewinding shaft lifting rail: front & back rewinding rollers roller speed differential + riding roller control final product tension and neatness of both ends.

4 . Bottom blade quick-change function

5 . Spreading auxiliary roller (optional).

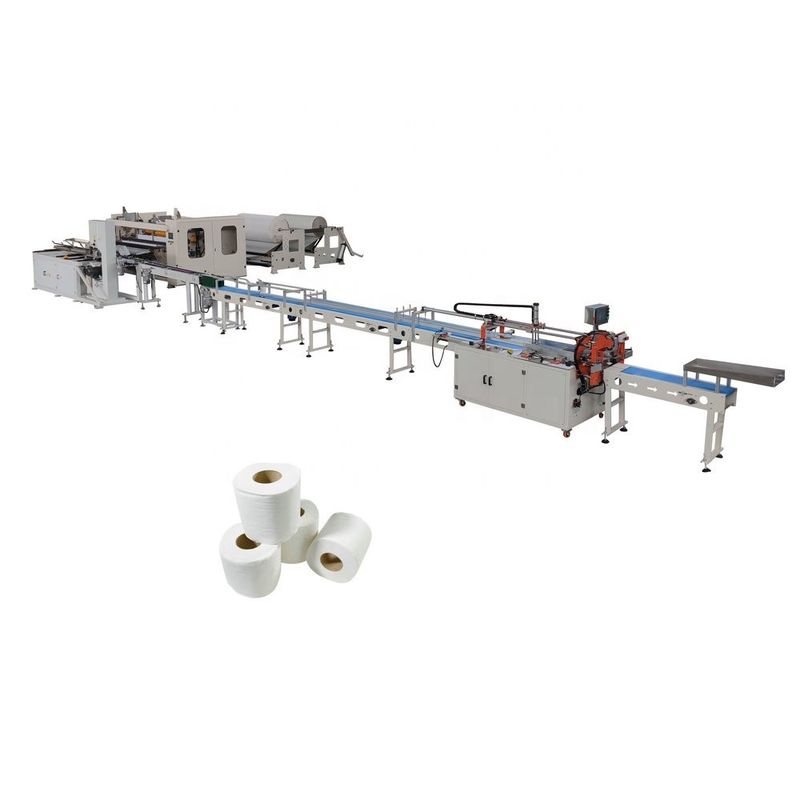

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

150 m / Min Toilet Roll Making Machine 0



Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model
1092B
1575B
1760B
2150B
2200B
2500B
2800B
Jumbo Roll Max. width
1350mm
1750mm
1880mm
2000mm
2150mm
2400mm
2750mm
Max. Jumbo Roll diameter

2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings

Standardφ3"(76.2mm) (Other sizes specified)

Data setting

HMI
Programming controller

PLC, touch screen

Operate Speed

0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
φ90-140mm
Finished Log Inner dia.
φ38-76mm
Perforation Distance
100-150mm
Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 7.5-15KW 380V,50HZ

Embossing unit

Steel to rubber

Dimensions
6x3x1.7 (length x width x height);(m)

Weight
3T-4T(depends on the Model you have )

Options:

Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit

1-2 Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic

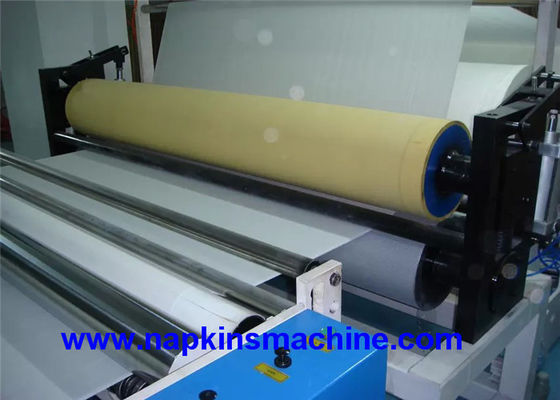

Machine Detail Pictures:

150 m / Min Toilet Roll Making Machine 1
150 m / Min Toilet Roll Making Machine 2
150 m / Min Toilet Roll Making Machine 3

Deco Color Lamination Parts:

150 m / Min Toilet Roll Making Machine 4
150 m / Min Toilet Roll Making Machine 5
150 m / Min Toilet Roll Making Machine 6

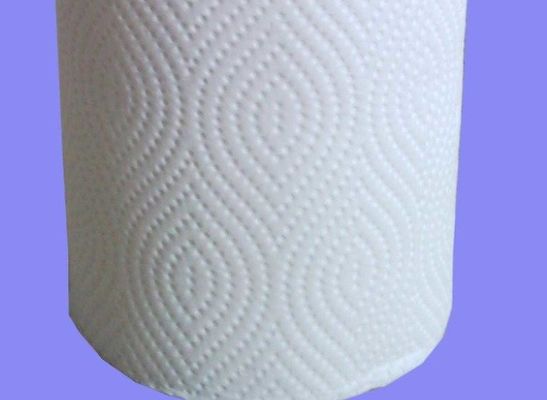

Finished Products:

150 m / Min Toilet Roll Making Machine 7
150 m / Min Toilet Roll Making Machine 8
150 m / Min Toilet Roll Making Machine 9
