15 Packs / Min Napkin Packing Machine , PLC Control Tissue Paper Packaging Machine

15 Packs / Min Napkin Packing Machine , PLC Control Tissue Paper Packaging Machine

15 Packs / Min Napkin Packing Machine , PLC Control Tissue Paper Packaging Machine
video
15 Packs / Min Napkin Packing Machine , PLC Control Tissue Paper Packaging Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-NK-I
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: WOODEN CASE
Delivery Time: 40 DAYS AFTER DOWN PAYMENT
Payment Terms: T/T
Contact Now
Detailed Product Description
Packaging Type: Bag Packaging Material: CPP, PE And So On
Dimension: 3560*5885*1925mm Weight: 1000kgs
Motor: Simens Automatic: Semi Automatic
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 3200*1000*1800mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Type: Multi-Function Packaging Machine, Other, Packaging Line
Function: Sealing, Wrapping, Filling, Gluing Packaging Material: Plastic, CPP, PE
Automatic Grade: Semi Automatic Driven Type: Electrical
Power(w): 2.5KW Product Type: Napkin Packing Machine
Processing Type: Napkin Packing Machine
High Light:

15 packs/min Napkin Packing Machine

,

PLC Control Napkin Packing Machine

,

15 packs/min tissue paper packaging machine

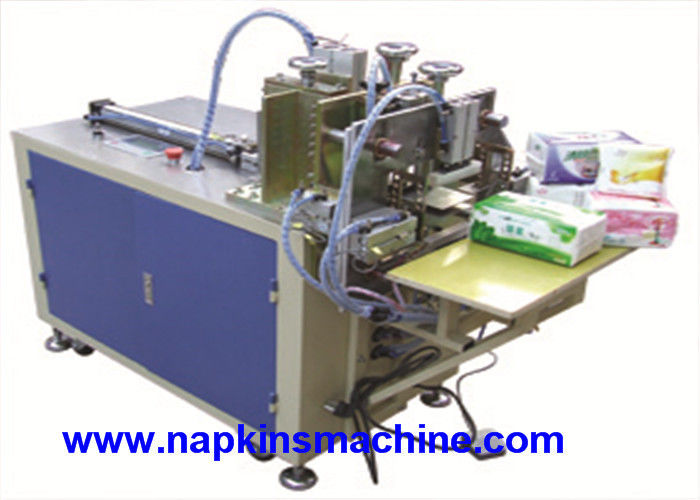

High Speed Paper Napkin Packing Machine 8-15packs / min , PLC Program Control





Description



 Semi Auto Table Dinner Napkin Paper Packaging Machine  adopts PLC program control ,human-machine interface, can operate manually or automatically. Auto pushing tissues into bags and foldingand sealing, at the same time the sealing, and cutting uses double temperature control and formed by machine so the finished products more perfect .It has easy operation and can save more labor effectively..





Main features



1). The machine can link to front-end directly, achieve continuous packaging;

2). Bagging sealing once completed. Improve work efficiency, reduce the production cost.

3). This machine simple operation, low demand for operating workers;

Replace artificial operation, Product appearance more norms.

4). The machine adopts brand PLC computer programming control, control accurate positioning;

Operating parameters settings changes convenient.

5). This machine control parts is imported high quality components, the rest parts is our national quality

standard parts,

machine performance is stable and reliable.

6). One machine one package size.





Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:

Packing Size
≤500x300x110mm (LxWxH)
≥220x120x90mm (LxWxH)
Packing Speed
10-20 bag/min
Gas Pressure
0.5mpa-0.8mpa
Voltage & Frequency
380V,50Hz,3Phase
Total Power
0.8kw
Weight
1000kg
Overall Dimension
4900x1650x1280mm

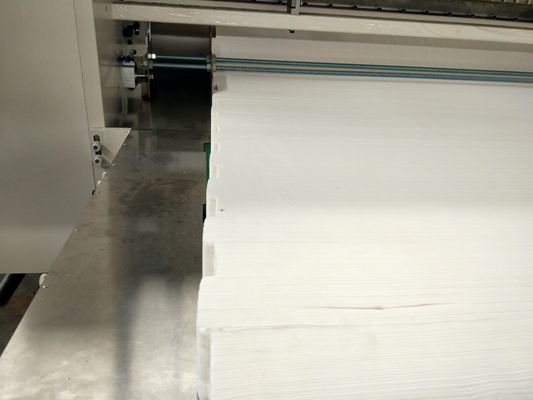

Tissue paper bag (one row/two rows)
Tissue paper bag (one row/two rows)
15 Packs / Min Napkin Packing Machine , PLC Control Tissue Paper Packaging Machine 0

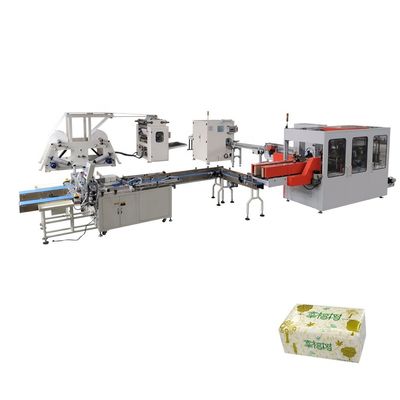

Final Products:

15 Packs / Min Napkin Packing Machine , PLC Control Tissue Paper Packaging Machine 1
