1/4 Fold Beverage Z Fold Paper Folding Machine

1/4 Fold Beverage Z Fold Paper Folding Machine
1/4 Fold Beverage Z Fold Paper Folding Machine 1/4 Fold Beverage Z Fold Paper Folding Machine 1/4 Fold Beverage Z Fold Paper Folding Machine

Large Image :  1/4 Fold Beverage Z Fold Paper Folding Machine

Product Details:

Place of Origin: Dongguan, Guangdong, CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-NP-I

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden packing
Delivery Time: 45days after down payment
Supply Ability: 2 sets per month
Detailed Product Description
Embossing: Steel To Paper Or Steel To Steel Speed: 3000 Sheets Per Min
Lamination: Point To Point Or Point To Nest Color Printing: 1 To 4 Color Printing
Frequency Converter: Delta Motor: Jiang Cheng
Touch Screen: Delta Folding: 4 Fold
Voltage: 380V, 50 HZ OR CUSTOMERIZED Power(w): 5.5KW
Application: Napkin Folding Machine To Produce Napkin Paper After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation
Warranty: One Year Dimension(l*w*h): 3200*1000*1800mm
Condition: NEW
High Light:

1/4 Fold Beverage Z Fold Paper Folding Machine

,

300m/min Z Fold Paper Folding Machine

,

1/4 Fold Beverage tissue paper production line

Napkin Making Machine High Capacity to fold beverage napkin



Description

Napkin Making Machine High Capacity to fold beverage napkin is to manufacture napkin tissue from parent roll. The process includes embossing , folding , cutting and so on process. The size for the machine vary from 200mm to 430mm to be customerized. The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size.





Specification



Folding

1/4 fold

Max machine speed

300m/min

Anilox Roller :

Ceramic mesh roller, 250lpi~600lpi

Registering precision:

Longitudinal:± 0.25 mm (manual)

Lateral:± 0.25 mm (manual)

Unwinding Diameter :

φ1200 mm

Winding/unwinding

paper / rubber tube:

φ76 mm(ID)

Embossing pressure:

mechanical conditioning

Embossing roller:

φ131.3mm(German steel)

Drying mode:

electrical heating

Drying power

10KW

Air blower:

1.0KW,2 pecs

Automatic counting:

 yes

Plain bearing

Japanese NSK

One-Way bearing

Germany ASNU

Main converter

Panasoni, spees adjiust by transducer,Japan







Spare Parts List



NO

ITEM

QUA

1

Plastic male knife

4

2

Band Saw

2

3

Tool Box

1

4

Grinding Stone

4



Feature

  1. Speed: 3000 sheets / min

  2. Folding Type: 1 / 4 and 1 / 8 or 1 / 6 or M fold or Two folding Type

  3. Embossing: steel to steel or steel to paper.

  4. Important parts Bearing: NSK

  5. Important parts Steel: SKD

  6. PLC: Delta

  7.  Frequency Converter Delta

  8.  Pneumatic Parts AIRTACK

  9. Motor: SIEMENS

  10.  Pneumatic Parts AIRTAC

  11.  Photoelectrical switch (magic eye) Omron

  12. 20mm thickness wall board plate for back stand

  13. 40mm thickness wall board plate for embossing unit and color printing unit

  14. 30 mm thickness wall board plate for cylinder folding parts



Introduction of main parts



Paper-feeding part

One Layer and Belt to deliver paper and controlled by Pump

Raw Paper Manual Adjustment



Embossing Part

One unit steel to woolen Roller

Mechanical pressure control

cotton cloth and paraffin oil Cleaning Device



Folding Part

Leading Paper Roll Function , the folding tension of the fore part adjustable

Counting Device: Pneumatic dislocation type



Control Unit

Frequency Conversion Device

Automatic Counting Function

Emergency Device

Voltage: AC380V 50HZ Main Motor 2.2KW,

Air pressure required less than 0.5 MPA

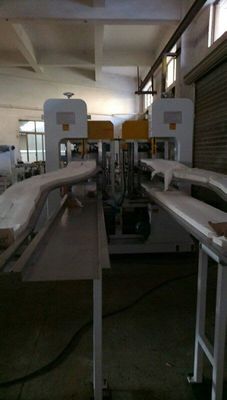

1/4 Fold Beverage Z Fold Paper Folding Machine 0

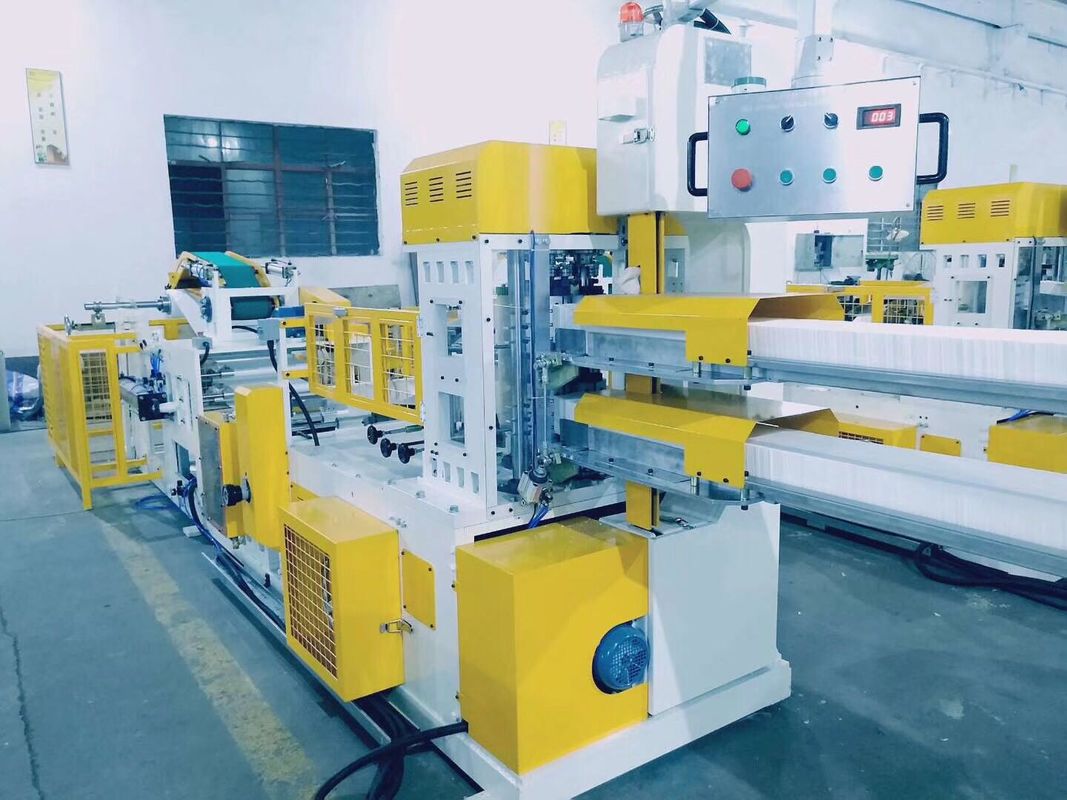

1/4 Fold Beverage Z Fold Paper Folding Machine 1

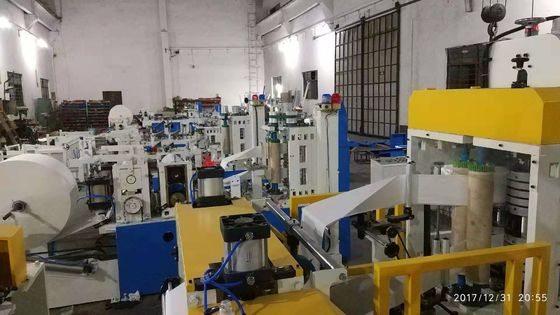

1/4 Fold Beverage Z Fold Paper Folding Machine 2
