| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-TPM-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | We use three-ply board to pack the toilet paper machine into standard export wooden cases and provide you the Fumigation Certificate for free |
| Delivery Time: | 40 Days After Down Payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets Per Month |
| Raw Paper Width: | 2000mm | Speed: | 200m/min |
|---|---|---|---|
| Product Type: | Toilet Tissue | Processing Type: | Paper Slitting And Rewinding |
| Perforating Size: | 90-180mm | Automatic: | Full Automatic Line |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Toilet Paper Making Machine | Processing Type: | Toilet Paper Making Machine |
| High Light: | 200m/Min Perforated Toilet Roll Making Machine,2000mm Width Perforated Toilet Roll Making Machine |
||

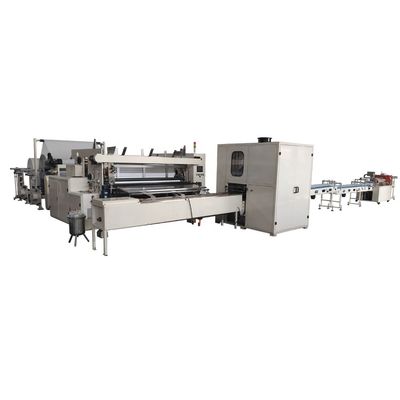

Ten Rolls Toilet Roll Production Line , Rewinding and Perforated Toilet Paper Machine
Description
Ten Rolls Toilet Tissue Paper Roll Making Machine Production Line is used to produce toilet roll. It consists of one set of Rewinding and Perforating Toilet Paper Machine(or can equip with high-speed rewinding and perforated toilet paper and towel paper machine)(it can be 2 or 3 sets according to requirement), 1 set of Automatic Log Saw Machine ,and 1 set of Automatic Toilet Paper Packing Machine for Multiple Rolls and convey belts.
Parameter
|
Parent roll width |
1750mm--2800mm |
|
Parent roll diameter |
Up to Φ1200mm |
|
Core inside diameter of parent roll |
Φ3"(76.2mm)or as requested by customer |
|
Machine speed |
180-220m/min depending on model |
|
Operating speed |
180-200m/min, 3 cycles(logs)/min |
|
Finished roll outside diameter |
Toilet paper:Φ90-110mm |
|
Perforation pitch |
Variable, any size needed |
|
Sheet count |
Increments of one sheet |
|
Inner diameter of core of finished product |
Φ40-60mm |
|
Quality of raw material |
1 or 2 plies ,14-20g |
|
Installed power |
7.5Kw~15Kw |
|
*Please point other specifications |
|
This line includes four parts
l Toilet Paper Log Making (Rewinder)
l Toilet Paper Log Accumulator
l Toilet Paper Log Saw (4 channels)
Design Speed: 600m/minute
Production Speed: 500m/minute
The characteristics of the rewinder
1. Unwind is equipped with closed loop frequency conversion control system.
2. When the webs do not align,you can operate on the touch button screen to move the jumbo roll till
webs align.
3. When the core unit can not detect core or core will use up, the machine will alarm to tell operator or
workers to put some cores on the core bracket.
4. When the machine is running, web break off suddenly for reason of speed change sharply of
problem from jumbo roll.
5. Degree of tightness can be adjusted while a log is rewinding.It can produce different degree of
tightness in one log.
6. When a log is rewinding,the next core is ready.
7. For the reason of using advanced technology:Program Logic Control System; synchronous frequency
conversion drive;integration of mechanics,electrics and photo.
8. When the finished log come to tail sealer, trimming, glue spraying and sealing can be finished at the
same time.
9. embossing unit and glue applicator,edge embossing unit,printing system is order by customer.
Feature
1. Automatic core feeding system, automatic log pusher after rewinding, then rewind the new log again.
2 . Automatic edge-trimming, core feeding; auto edge trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3 . Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4 . Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5 . Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6 . Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Specification:
Machine Detail Pictures:
Deco Color Lamination Parts:
Finished Products:
