200 m / Min 90mm Size Tissue Paper Maker Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-TPM-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	We use three-ply board to pack the toilet paper machine into standard export wooden cases and provide you the Fumigation Certificate for free
Delivery Time:	40 Days After Down Payment
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets Per Month

Contact Now

Detailed Product Description

Raw Paper Width:	2000mm	Speed:	200m/min
Product Type:	Toilet Tissue	Processing Type:	Paper Slitting And Rewinding
Perforating Size:	90-180mm	Automatic:	Full Automatic Line
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Toilet Paper Making Machine	Processing Type:	Toilet Paper Making Machine
High Light:	200m/Min Tissue Paper Maker Machine , 90mm Size Tissue Paper Maker Machine , 200m/Min Tissue Paper Maker Machine

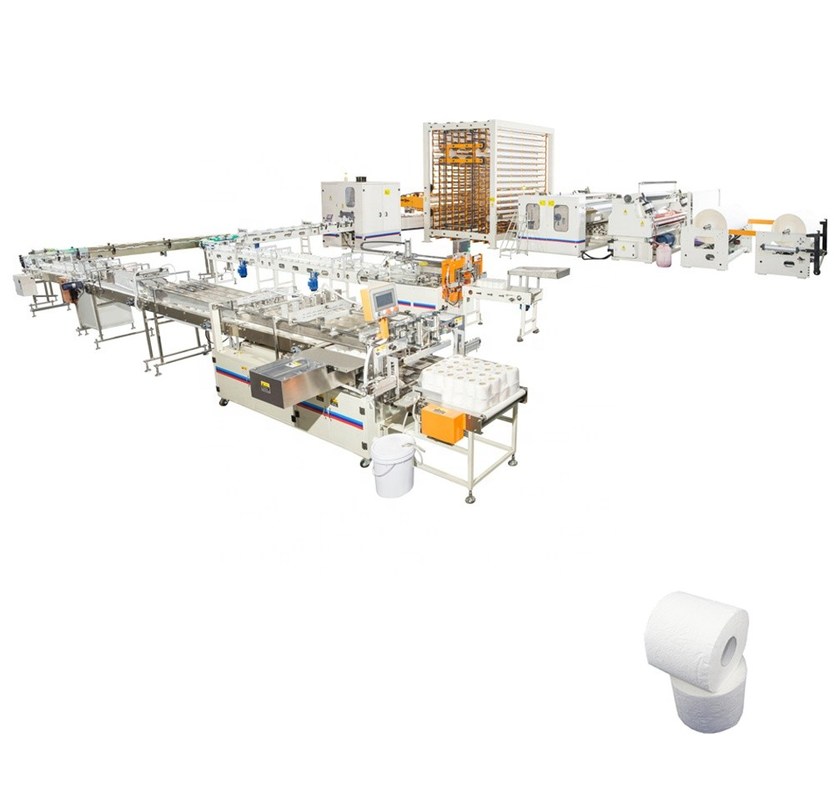

High Capacity Toilet Tissue Paper Roll Making Machine Production Line

Description

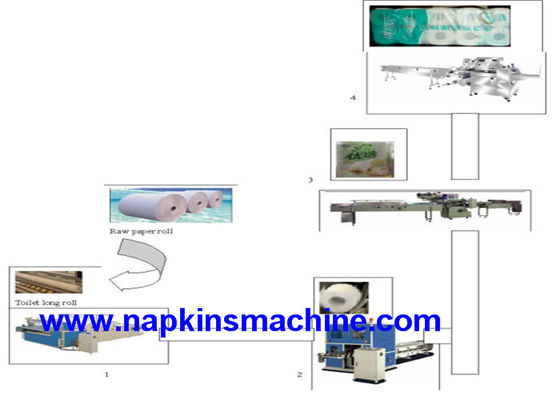

High Capacity Toilet Tissue Paper Roll Making Machine Production Line is the whole line with cutting machine, packing machne to produce toilet roll. It consists of one set of Rewinding and Perforating Toilet Paper Machine(or can equip with high-speed rewinding and perforated toilet paper and towel paper machine)(it can be 2 or 3 sets according to requirement), 1 set of Automatic Log Saw Machine ,and 1 set of Automatic Toilet Paper Packing Machine for Multiple Rolls and convey belts.

Parameter

Specification

full auto toilet paper/ kitchen towel rewinding machine

Machine model		1760	2200	2500	2800	3000	3200	3500
Width (mm)		2000	2200	2500	2800	3000	3200	3500
Finished products diameter		Φ 90~150mm Tightness can be adjustable.
Finished products inner diameter		Φ32~50 mm
Jumbo roll diameter(mm)		Φ 1500mm (Other sizes can be ordered)
Jumbo roll core inner diameter		3”,76.2 mm (Other sizes can be ordered)
Perforation distance (mm)		(4 blades),90~160mm, ( 2 blades),180~320mm
Production speed		250~300 m/ min
Parameter set		Touching Multi-menu Man-machine Interface Operating System
Programmable controller		Mitsubishi PLC program
Driving system		Servo driving system
Jumbo roll stand		1-3 plies (ply quantity is as per order)
Air pneumatic system		3 Pa air-compressor, the lowest pressure 5kg/cm2 Pa (should prepare by the customers themselves)
Power		7.5-25KW (380V,60HZ)
(L×W×H) Overall size		10 X (3-3.5) X 2
Weight of equipment		4000~10000kg (approx)
Chosen items (Should be ordered separately)
Embossment	Single embossment, double embossment, steel to steel embossment
Embossment down roller	Felt roller, paper roller, rubber roller
Jumbo roll stand	1-3 plies
Printing	1-2 colors can be ordered.
Side rolling embossment	be ordered
Kitchen towel	Point-to-point embossment glue laminating system (should be ordered separately), Driven by servo; No counter point embossment glue laminating system (separate order), controlled by servo;
Smooth embossment	Steel to steel, steel to rubber
Remote telecom service system	Order separately

High speed log saw cutting mahcine

High-speed roll cutting / High speed log saw machine
Toilet roll length	1500mm-3500mm
Toilet roll outer diameter	Φ90mm-Φ150mm(standard size:110±5mm)
Cutting length	)(length is changeable, servo control)
Operating speed	150 cuts/min, 2 rolls/ cut
Round blade outer diameter	Φ610mm
Installed power	10KW (380V50HZ)

Log accumulating machine

CL100-200 Log Accumulating Machine
Toilet roll length	2000mm-3500mm
Toilet roll outer diameter	Maximum 150mm, Minimum 90mm
Workable roll storage quantity	Ordered by customers
Storing speed	25 rolls /min
Installed power	AC motor 2HP: 2 sets

Full auto multi roll packing mahcine

Model name	LB300 Multi roll packing machine
Scope of application	toilet roll, kitchen roll
Packing material	CPP,PE packing film
packing film thickness	0.04-0.06mm
Max packing film outer diameter	350mm
packing film core diameter:	75-76mm
packing speed	120 pack/min
dimension	6630mm×1035mm×1700mm
power	6kw
weight	1.5T

Feature

1. Automatic core feeding system, automatic log pusher after rewinding, then rewind the new log again.

2 . Automatic edge-trimming, core feeding; auto edge trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.

3 . Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

4 . Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

5 . Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

6 . Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns

7. Adopt jogging switches for wearing the paper, easy and safe to operate.

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
