200 m / Min Trimming Toilet Roll Making Machine

200 m / Min Trimming Toilet Roll Making Machine
200 m / Min Trimming Toilet Roll Making Machine 200 m / Min Trimming Toilet Roll Making Machine 200 m / Min Trimming Toilet Roll Making Machine

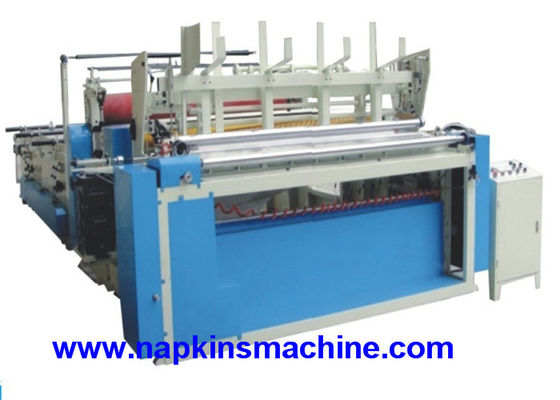

Large Image :  200 m / Min Trimming Toilet Roll Making Machine

Product Details:

Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-TPM-I

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: We use three-ply board to pack the toilet paper machine into standard export wooden cases and provide you the Fumigation Certificate for free
Delivery Time: 40 Days After Down Payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets Per Month
Detailed Product Description
Raw Paper Width: 1800mm Speed: 200m/min
Product Type: Toilet Tissue Processing Type: Paper Slitting And Rewinding
Perforating Size: 90-140mm Edge-Embossing: Specified
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Toilet Paper Making Machine Processing Type: Toilet Paper Making Machine
High Light:

200m/min Trimming Toilet Roll Making Machine

,

200m/Min Trimming tissue paper machinery

,

200m/Min Trimming toilet tissue making machine

High Speed Toilet Tissue Paper Making Machine , Auto Trimming / Gluing And Sealing





Description



 Automatic Toilet Tissue Paper Embossing Perforating Making Machine has been integrated with the internationally advanced PLC technology. It has variable speed adjustment and touch human-machine interface operating system. It adopts newly designed glue applicator unit which makes the gluing more uniform. It can add 1-3 colors’ water ink printing system for printing diversified fine pattern, brand which is with characters of clear and bright printing, exact overprint, high speed and stable running.





Feature



1. Automatic core loading and positioning, after rewinding a roll of paper, paper tube will be placed in the next predetermined position and start to rewinding the paper roll.



2. Automatic trimming, gluing and sealing: After completion of paper roll, automatic cut off the web, and glue spraying, and then automatic sealing,the whole paper roll is finish



3. When the finished log come to tail sealer, trimming, glue spraying and sealing can be finished at the same time.



4. with independent driving accumulator.



5. with band saw, can constitute a simple production line

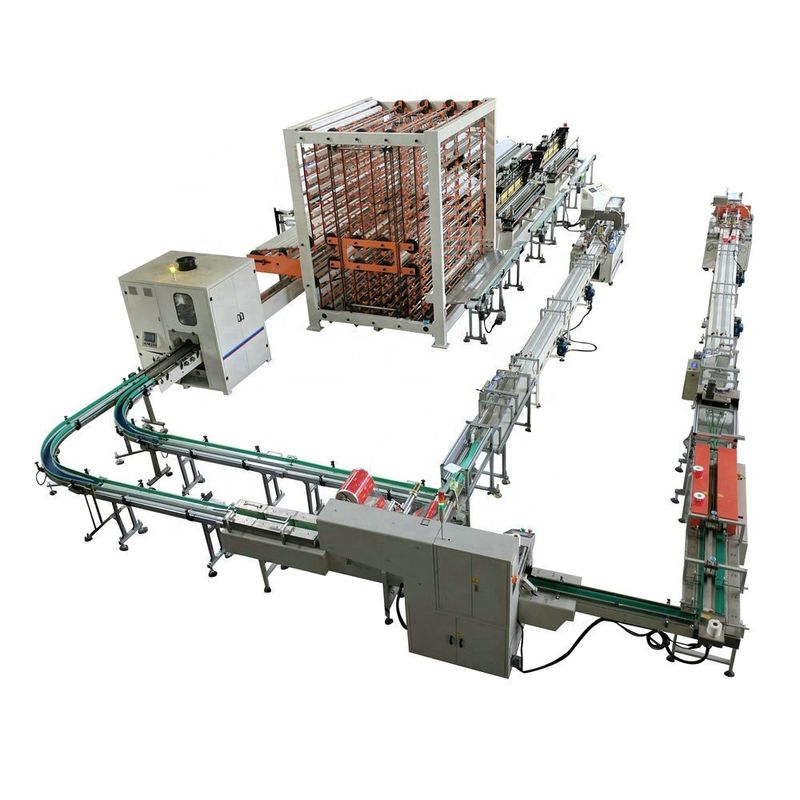

6. full automatic production line DCY50104,This production line is composed of rewinder, Log accumulator, Log saw cutter



7. edge embossing unit,embossing unit,lamination unit is order by customer,Produce different patterns and types of toilet paper, kitchen towel





Parameter



Machine type

1092

1575

1760

2200

2500

2800

3000

3200

Max width of raw paper

1300mm

1800mm

2000mm

2200mm

2500mm

2800mm

3000mm

3200mm

Outer Dia. of raw paper

1200mm(other size to be specified)

Paper unwinding stand

1-3 layer (The Qty. of raw paper rolls to be specified)(to be ordered)

Inner Dia. of raw paper core

3”(76.2mm)(other size to be specified)

Parameter setting

HMI Operation interface/touched screen

Programming control

PLC

Braking

Electronical /Air pressure control

Machine speed

0-200m/min

Operating speed

0-180m/min

Outer Dia. of finished product

90-135mm(other size to be specified)

Inner Dia. of finished product core

25-50mm

Control of the outer Dia. Finished

Electronical /pneumatic

Perforating

4 pieces of Anvil soft blades, size is 108±2mm (other size to be specified)

Perforating size

Be adjustable

Pneumatic system

3HP Air compressor, with the min. pressure is 5kg/cm2pa(supplied by user)

Control voltage

Stable voltageDC24V

Mechanical structure

Wall plate type

Mechanical transmission

Stepless Gearbox

Transmission method

Link Chain

Power

5.5-22kw Variable Frequency speed regulating

Control of perforating



Pneumatic

Additional function(to be ordered)

Embossing

Single embossing, double embossing, steel to steel embossing, pneumatic embossing

Edge –embossing

Special pneumatic edge embossing device

Gluing

Kitchen towel: point to point gluing/point to side gluing

Decorative glueing system

Pattern is as per the embossing design





Optional Equipment:





1. Two embossing units can be equipped with 3 laying paper stand.



2. Electric unit adopts famous brand of China, called “Zheng da” electric unit. This machine also equip with PLC, it has reasonable structure and easy operation.



3. Axletree adopts famous brand of China, called Ha er bin axletree.







The name of spare part of the machine:





1. Use processing, anti-pressure and capable of damage transition of steel axle.



2. Electric unit adopts famous brand of China, called “Zheng da” electric unit. This machine also equip with PLC, it has reasonable structure and easy operation.



3. Axletree adopts famous brand of China, called Ha er bin axletree.





Electrical Parts and other Parts brand



NO

Name

Brand

Original Place

1

Frequency Panel

Siemens

Germany

2

Motor

Siemens

Germany

3

Pneumatic Parts

Schneider

Germany

4

Knife bearing

NSK

Japan

5

Steel

SKD

Japan

6

Touch Screen

Delta

Taiwan



Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

200 m / Min Trimming Toilet Roll Making Machine 0



Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

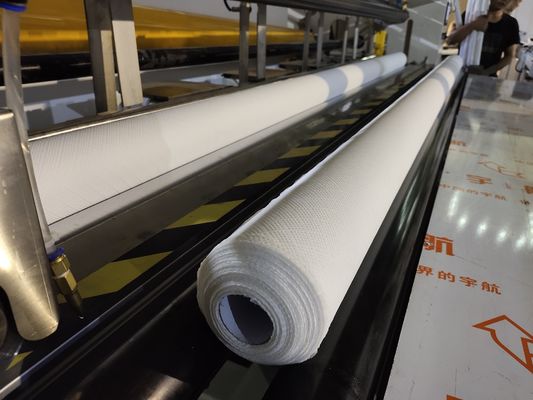

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model
1092B
1575B
1760B
2150B
2200B
2500B
2800B
Jumbo Roll Max. width
1350mm
1750mm
1880mm
2000mm
2150mm
2400mm
2750mm
Max. Jumbo Roll diameter

2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings

Standardφ3"(76.2mm) (Other sizes specified)

Data setting

HMI
Programming controller

PLC, touch screen

Operate Speed

0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
φ90-140mm
Finished Log Inner dia.
φ38-76mm
Perforation Distance
100-150mm
Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 7.5-15KW 380V,50HZ

Embossing unit

Steel to rubber

Dimensions
6x3x1.7 (length x width x height);(m)

Weight
3T-4T(depends on the Model you have )

Options:

Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit

1-2 Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic


Machine Detail Pictures:

200 m / Min Trimming Toilet Roll Making Machine 1
200 m / Min Trimming Toilet Roll Making Machine 2
200 m / Min Trimming Toilet Roll Making Machine 3

Deco Color Lamination Parts:

200 m / Min Trimming Toilet Roll Making Machine 4
200 m / Min Trimming Toilet Roll Making Machine 5
200 m / Min Trimming Toilet Roll Making Machine 6

Finished Products:

200 m / Min Trimming Toilet Roll Making Machine 7
200 m / Min Trimming Toilet Roll Making Machine 8
200 m / Min Trimming Toilet Roll Making Machine 9
