| Place of Origin: | Dongguan, Guangdong, CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-NP-I |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 45days after down payment |
| Supply Ability: | 2 sets per month |
| Embossing: | Steel To Paper Or Steel To Steel | Speed: | 2200 Sheets Per Min |
|---|---|---|---|
| Lamination: | Point To Point Or Point To Nest | Frequency Converter: | Delta |
| Motor: | SIEMENS | Touch Screen: | Delta |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 3200*1000*1800mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Power(w): | 5.5KW | Warranty: | One Year |
| High Light: | 2200 Sheets/Min Napkin Production Machine,1/8 Fold Napkin Production Machine,2200 Sheets/Min tissue napkin making machine |
||

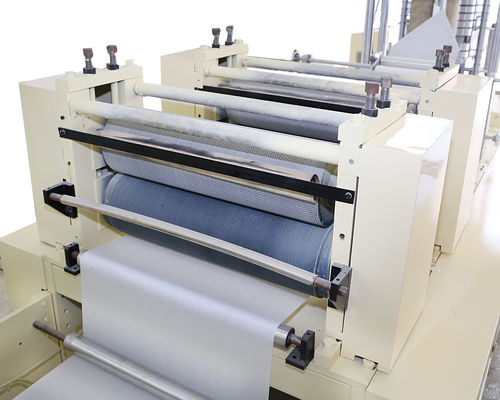

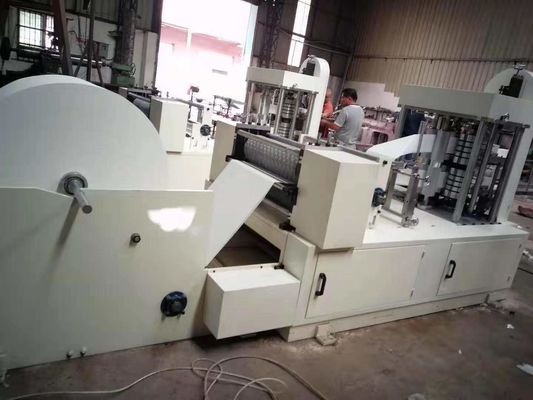

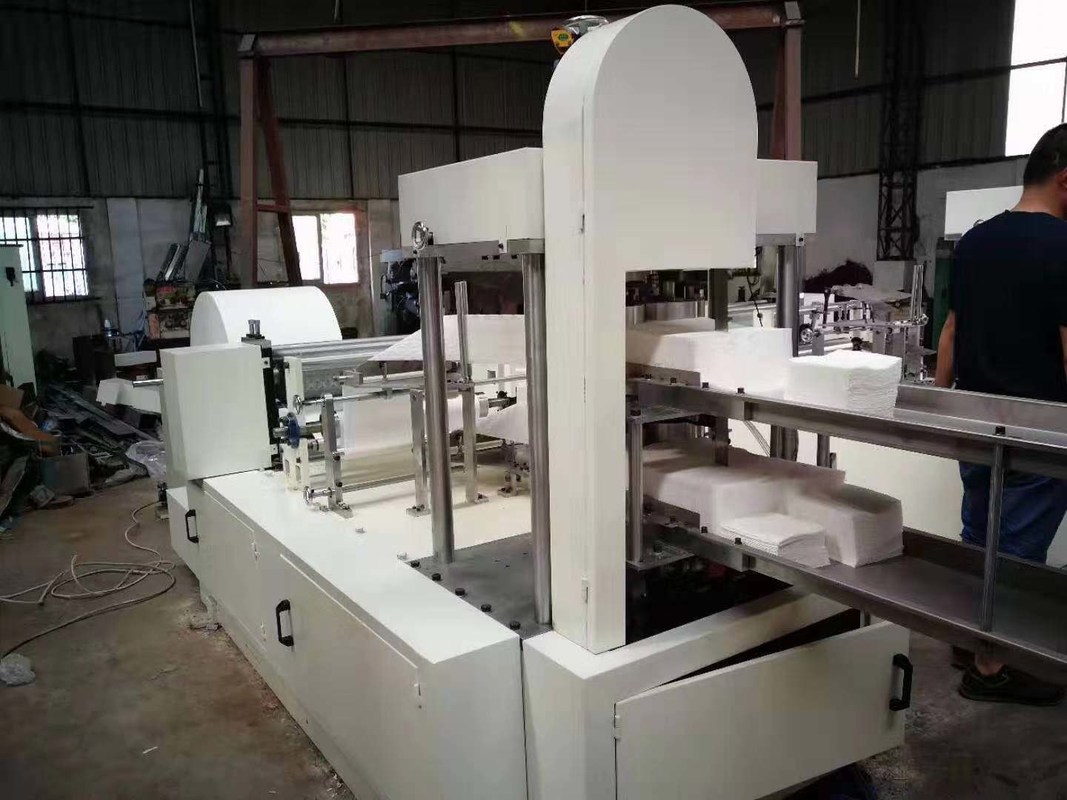

Embossing Automatic Napkin Manufacturing Machine Tissue Paper Machinery
Embossing Automatic Napkin Manufacturing Machine Tissue Paper Machinery is to produce napkin tissue from big roll. The process includes embossing , folding , cutting and so on process. The size for the machine vary from 200mm to 430mm to be customerized. The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size.
|
Unfold size of napkin |
300x300 mm |
330x330 mm |
Other size please point out |
|
Fold size of napkin |
150x150mm |
165x165mm |
|
|
Width of jumbo roll |
600mm |
660mm |
|
|
Speed |
800-1200 sheet/minute (speed varies according to different paper) |
||
|
Embossing Unit |
Full or border embossing |
||
|
Printing Unit |
1-3 color flexo printing As per requirement |
||
|
Core Inner Diameter |
76.2mm |
||
|
Parent Roll Diameter |
1200mm |
||
|
Interfold style |
1/4 folding |
||
|
Installed Power |
4.5 KW 380V 50Hz 3Phase (other Voltage, please point out) |
||
|
Air Pressure Required |
0.5Mra ¼ Hose (Prepared by buyer) |
||
|
Transmission |
Timing Belts |
||
|
Controlling System |
Frequency drive |
||
|
Machine Weight |
2000kg |
||
|
Oversize of machine |
5200x1200x1800mm |
||
