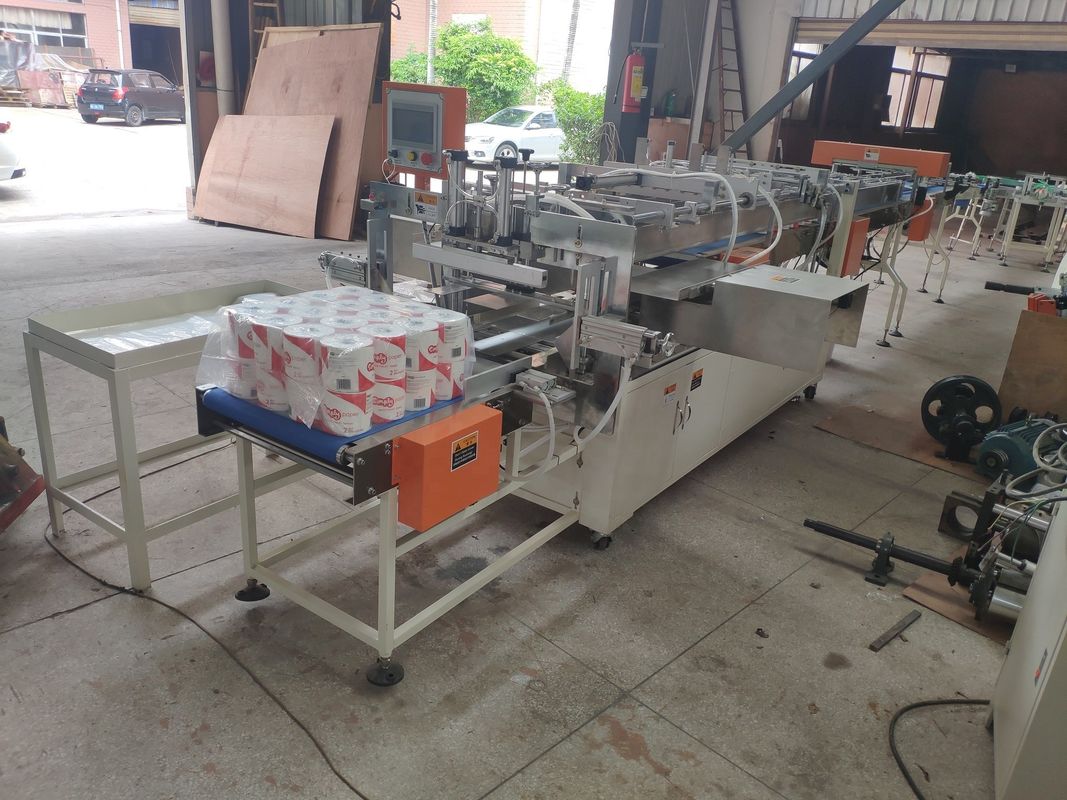

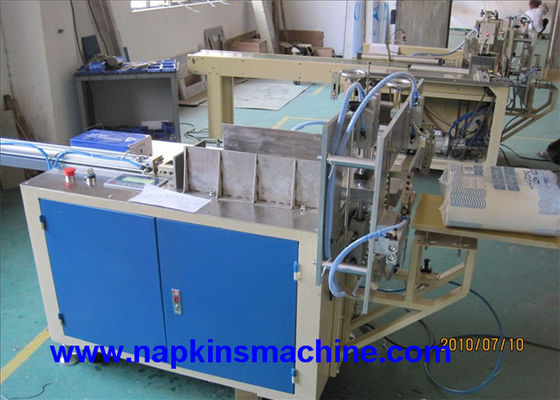

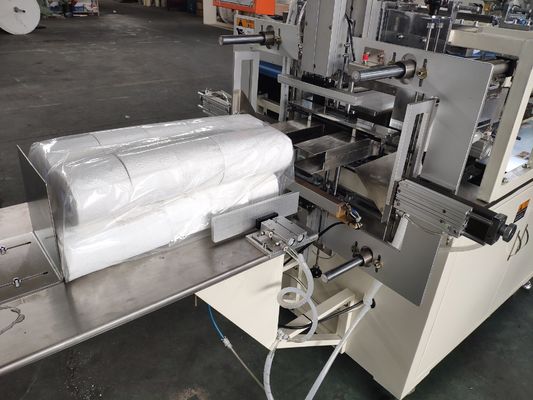

220V 50HZ Conveyor Belt Toilet Roll Packing Machine

220V 50HZ Conveyor Belt Toilet Roll Packing Machine

220V 50HZ Conveyor Belt Toilet Roll Packing Machine
video
220V 50HZ Conveyor Belt Toilet Roll Packing Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-SP-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 40 Days after Down Payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets/month
Contact Now
Detailed Product Description
Application: Single Roll Packing Packing Material: CPP With Thickness Of 40 Microns
Speed: 5-15 Bags/min PLC: SIEMENS
MOTOR: SIEMENS Automatic: Semi Automatic
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 3200*1000*1800mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Type: Multi-Function Packaging Machine, Other, Packaging Line
Function: Sealing, Wrapping, Filling, Gluing Packaging Material: Plastic, CPP, PE
Automatic Grade: Semi Automatic Power(w): 2.5KW
Product Type: Toilet Roll Packing Machine Processing Type: Toilet Roll Packing Machine
High Light:

220V 50HZ Toilet Roll Packing Machine

,

Conveyor Belt Toilet Roll Packing Machine

,

Conveyor Belt Toilet Roll Packing Machine

Multifunctional Toilet Roll Packing Machine 220V 50HZ With Conveyor Belt





Description



This machine is suitable for roll toilet paper packing,it is high efficiency and good performance.



Introduction



1  The toilet roll packing machine has the combined function of setting ,pronghorn, sealing,just artificially

placed rolls, automatic conveyor belt feed conveyor, bagging and sealing pronghorn once.Besides the

machine can be used with manual cutter.

2 The machine adopts advanced PLC computer programming control, liquid crystal display text

parameters,more accurate temperature control, more effective protection and high temperature resistant

tape of heat wire. It is easy to set up and easy to operate. Its sealing part is equipped with water circulation

cooling, sealing more solid, beautiful, and fast.

3 The machine is with a conveyor belt, just to put the roll of lust artificial standard pattern.The machine

automatically feed conveyor rolls, artificial bagging, pronghorn and sealing automatically. It has

advantages of faster speed, more economical labor; lower production costs and higher production

efficiency.

4 Packing speed:5-6 mention /min

5 The machine uses pronghorn form and transverse sealing sealing line for stubby-shaped rolls.

6 Main structure strong point:reasonable structure,stable performance and the material stronger which

make the machine more durable; moreover ,controlled parts of the main pieces is imported high quality

parts, the rest is the national standards of quality parts.





Specification





Air source pressure

0.6Mpa

Supply voltage

220V  50HZ

Packing speed

5-6mention/min

Diameter of the packing size

 80-125mm(single)

Height packing size

100-150mm(one)

Total power

0.4KW+0.8KW

 External size

L3900*W1800*H1200mm

Scope of application

 stubby-shaped rolls





Main functions



1 The toilet roll packing machine has the combined function of setting ,pronghorn, sealing,just artificially

placed rolls, automatic conveyor belt feed conveyor, bagging and sealing pronghorn once.Besides the

machine can be used with manual cutter.

2 The machine adopts advanced PLC computer programming control, liquid crystal display text

parameters,more accurate temperature control, more effective protection and high temperature

resistant tape of heat wire. It is easy to set up and easy to operate. Its sealing part is equipped with

water circulation cooling, sealing more solid, beautiful, and fast.

3 The machine is with a conveyor belt, just to put the roll of lust artificial standard pattern.The machine

automatically feed conveyor rolls, artificial bagging, pronghorn and sealing automatically. It has

advantages of faster speed, more economical labor; lower production costs and higher production

efficiency.

4 Packing speed:5-6 mention /min

5 The machine uses pronghorn form and transverse sealing sealing line for stubby-shaped rolls.

6 Main structure strong point:reasonable structure,stable performance and the material stronger which

make the machine more durable; moreover ,controlled parts of the main pieces is imported high quality

parts, the rest is the national standards of quality parts.



Product Description

High Quality Facial Tissue Machine Paper Product Making Machinery

220V 50HZ Conveyor Belt Toilet Roll Packing Machine 0



Features:

Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.

1.Can order steel to rubber embossing rolls,pneumatically separated.

2.Wallboard rack and Machine running stability and extremely good and fast.

3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.

4.Equipped with roots type vacuum pump for stable running of the machine.

5.Make various products width as requirement.

6.Equipped with edge embossing unit to keep the plise together.

7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.

8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.

1. Specification of Facial Tissue Folding Machine:

Machine Model
SYM-190/6L (Other size to be specified)
Finished Products Unfolded Size
95x(120-210)x2mm
Folding Products Size
190x(120-210)x2mm
Raw Material Width
1260mm
Raw Material Diameter
1200mm
Raw Material Core Diameter
76.2mm
Output Capacity (8 hours)
2000-3000kg
Embossing Unit
Steel to rubber
Edge Embossing
Steel to steel edge embossing, independent pneumatic regulation
Slitting Unit
Pneumatic slitting
Main Servo Moter Power
5.5kw
Unwind Frequency Motor Power
1.5kw (2 units)
Vacuum System
18.5 kw Vacuum pump (Taiwan Roots blower)
Pneumatic System
3HP air compressor,Min. pressure 5kg/cm2PA (Provider by user themselves)
Driving System
Timing belt
Dimension
5870x2800x2207mm
Weight
About 5 tons
220V 50HZ Conveyor Belt Toilet Roll Packing Machine 1
220V 50HZ Conveyor Belt Toilet Roll Packing Machine 2
220V 50HZ Conveyor Belt Toilet Roll Packing Machine 3
220V 50HZ Conveyor Belt Toilet Roll Packing Machine 4

2. Specification of Single Channel Log Saw Cutting Machine:

220V 50HZ Conveyor Belt Toilet Roll Packing Machine 5
Designation
Parameter values
The length of the none cut off facial tissue
minimum 500mm
The Height of tissue
30~130mm
Machine Speed
20~150cut/min
Operating speed
20~120cut/min
Round blade outer diamete
Φ610mm
Paper cutting circular knife top speed
980R/min
Finished products specification
70~300mm
Paper width
70~110mm
Cutting Length
70~300mm
Left-over Length
20~65mm
Power
11KW
Power supply
380V 50Hz
Air source
0.5~0.8MPa
Machine Size
4600*1700*2500mm
Weight of machine
2300~2600kg
Brake
Parameter setting (auto/manual)
Stepping sharpening knife
Parameter setting (auto)
Pneumatic sharpening knife
Parameter setting (auto/manual)
Blow air
without
The total pressure switch
Value (not)
Human-computer interface
DELTA
Frequency changer
DELTA
Servo Drive
DELTA

3. Specification of Facial Tissue Packing Machine:

1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.

Tissue sizes:
L: 150-400mm W: 150-200mm H: 35-150mm
Packing speed:
40-70 bags/min
Air supply:
0.5-0.8MPa
Machine weight:
3300kg
Outer dimensions (LxWxH):
5885x3560x1925(mm)
Heating power:
3.6kw
Motor power:
3.6kw
Packing size:
≤230x190x100(mm)
Working noise:
≤78dB
Packing film:
CPP
Power supply type:
380V, 50Hz
220V 50HZ Conveyor Belt Toilet Roll Packing Machine 6
220V 50HZ Conveyor Belt Toilet Roll Packing Machine 7

Final Products:

220V 50HZ Conveyor Belt Toilet Roll Packing Machine 8

4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:

Packing Size
≤500x300x110mm (LxWxH)
≥220x120x90mm (LxWxH)
Packing Speed
10-20 bag/min
Gas Pressure
0.5mpa-0.8mpa
Voltage & Frequency
380V,50Hz,3Phase
Total Power
0.8kw
Weight
1000kg
Overall Dimension
4900x1650x1280mm
Tissue paper bag (one row/two rows)
Tissue paper bag (one row/two rows)
220V 50HZ Conveyor Belt Toilet Roll Packing Machine 9

Final Products:

220V 50HZ Conveyor Belt Toilet Roll Packing Machine 10
