| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YSD-FP-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50 Days after down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 Sets Per Month |
| Application: | Plastic Soft Bag Packing | Speed: | 25-60Bags Per Min |
|---|---|---|---|
| Packing Material: | CPP And So On Plastic Film | Touch Screen: | SIEMENS |
| Motor: | SIEMENS | PLC: | SIEMENS |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Type: | Multi-Function Packaging Machine, Other, Packaging Line |
| Function: | Sealing, Wrapping, Filling, Gluing | Packaging Material: | Plastic, CPP, PE |
| Automatic Grade: | Automatic | Driven Type: | Electrical |
| Packaging Type: | BAGS, FILMS | Power(w): | 2.5KW |
| Product Type: | Facial Tissue Packing Machine | Processing Type: | Facial Tissue Packing Machine |
| High Light: | 220V 5.75Kw Facial Tissue Packing Machine,Convey Belt Facial Tissue Packing Machine,220V 5.75Kw tissue paper machinery |
||

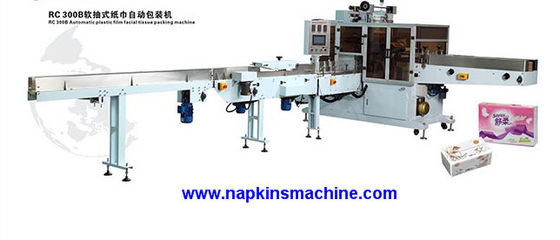

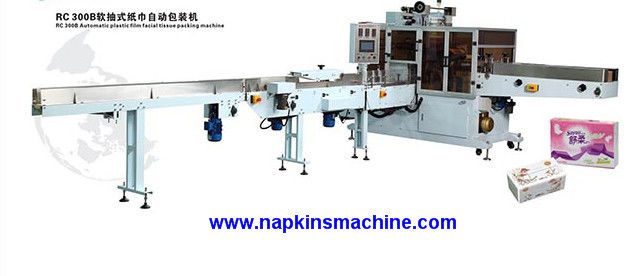

Full Auto Soft Wrapping Facial Tissue Packing Machine With Convey Belt
High speed Box packing machine Specification_20210...
Description
Automatic Facial Tissue Packing Machine Soft Plastic Film Wrapping is mainly use to packing the facial tissue of square shape. And also can punch the window as tear line for easy take out tissues.
It make bag and put facial tissues into bag and finish packaging automatically. This kind of packaging make the products’ surface more beautiful, and save the human cost.
Specification
|
Production capacity |
40-60 packs/min. |
|
Packaging material |
CPP, SPP,etc |
|
Bag size |
L(170)*W(170) *H(95)mm |
|
Power supply |
Two Phase. 220V, 50Hz, 5.75Kw |
|
Weight |
1200kg |
|
Overall dimension (L*W*H, mm) |
6200x2085x1850 |
Specification of Facial Tissue Packing Machine:
1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.
Final Products:
