Product Details:
Payment & Shipping Terms:
|
| Folding Type: | Vacuum 8 FOLD | Embossing: | Steel To Paper Or Steel To Steel |
|---|---|---|---|
| Speed: | 1000 Sheets Per Min | Color Printing: | 1 To 4 Color Printing |
| Frequency Converter: | Delta | Touch Screen: | Delta |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 3200*1000*1800mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Napkin Making Machine | Processing Type: | Napkin Making Machine |
| High Light: | 2400 Sheets/Min Napkin Folding Machine,2400 Sheets/Min tissue paper folding machine,Vacuum 8 FOLD Napkin Folding Machine |
||

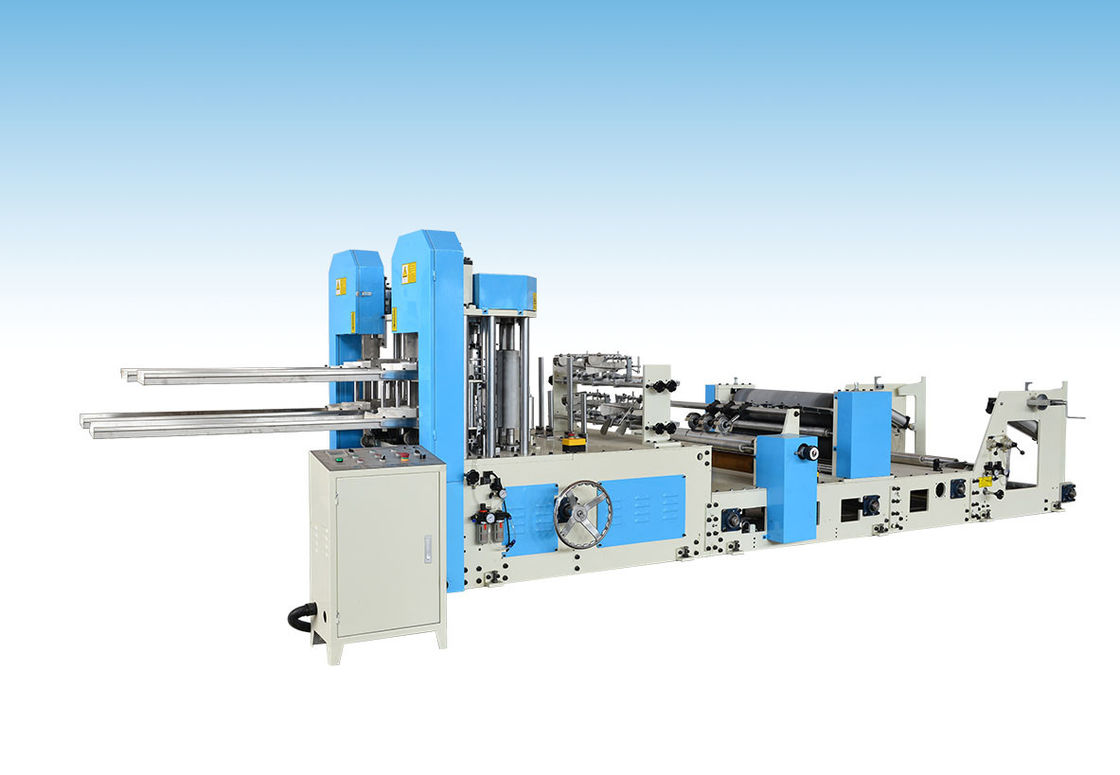

230mm Paper Napkin Machine 2400 Sheets Per Min With Flexo Printing
Description
230mm Paper Napkin Machine 2400 Sheets Per Min With Flexo Printing series take round type jumbo roll as raw material, process to various kind of fixed specification napkin paper.
The machine start from raw material feeding , embossment, folding and cutting.
Specification
|
Output |
2lines output. |
|
Speed |
500 sheet/min/line x 2lines |
|
Raw material |
13-18g/m2 2-ply virgin tissue; 18-35g/m2 single ply tissue and others |
|
Jumbo roll size |
≤ 660mm x Φ 1200mm (Width x Diameter) Or to be customized. |
|
Unfolded size |
330x330mm±2mm (Other sizes 330x330mm, 430x380mm available. please specify your size) |
|
Folded size |
165x82.5mm±2mm |
|
Folding type |
1/8 fold, |
|
Control |
Inverter control |
|
Auto count |
1—999 sheets |
|
Embossing |
steel to paper embossing. Any LOGO, words etc. |
|
|
2 colors printing units. (flexo printing and changeable printing pattern) |
|
Cluster ink net grain roller |
|
|
Printing roller can be adjusted |
|
|
Printing contraposition setting |
|
|
In-phase belt, gear drive |
|
|
Stainless steel |
|
|
Back stand |
Strong steel configuration |
|
One back stand |
|
|
Power |
AC380V 50HZ or 220V 60HZ or customized. |
|
Air pressure |
0.5 Mpa(buyer supply) |
Feature
1. Unfolding size of finished Product:180-500x180-500±2mm(LxW)
2. Folding size of finished Product :90-250x90-250±2mm(LxW)1/4 folding
3.Width of raw material: as per the size of finished product.
4. Max.diameter of raw material:1200mm
5. Size of finished product: 180-500x180-500
6. Inner Diameter of core: 76mm
7. Thickness of raw material:13-20g/m2(2 layers )23-25g/m2(1 layer)
8. Shape of folding:1/4 folding(according to the clients)
9. Way of printing; Flexo printing.
10. Material of printing: water-solubility ink
11. drying system: automatic constant temperature
12. Pneumatic lifter
13. Automatic Accounting (1-999)
14. Finished product come out with finger.
15. Embossing roller: steel to steel
16. Power: 3.7Kw (380V or 220V 50Hz, 3 Phases) (For your reference, it depends on the power situation in your place)
Why needs embossing unit? (Pattern selected by the customer)
1. The products with embossing pattern will enhances hand feel and absorbency, meaning fewer tissue paper used per hand dry.
2. Also to make the toilet paper roll/ kitchen towel looks more soft and loose. With embossing pattern, the roll dia will be more bigger in the same roll weight.
3. For more nice and exclusive embossing patterns, welcome to consulting!!!
Embossing pattern and Printing pattern upon customer's request :
Q1: Can you guarantee your quality?
A: Of course. We are the manufacturer. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production.
Q2: How long is your delivery time?
A: Generally it is 40-60 working days.
Q3: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance, balance before shippment.
Q4: How to place the order?
A: Please send us your purchase order by inquiry, and ask us to send you Proforma Invoice for your order. We need to know the following information for your order:
1) Product information: material, drawings ,sizes ( diameter range and thickness range), Application, Price Item, Destination Port.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
