| Place of Origin: | China |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-PT-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 50 work days after down payment |
| Payment Terms: | L/C, T/T |
| Fold Type: | Z Fold | Embossing: | Steel To Steel |
|---|---|---|---|
| Frequency Converter: | Delta | Pneumatic Parts: | AIRTAC |
| Photoelectrical Switch (magic Eye): | Omron | Motor: | SIEMENS |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Paper Towel Machine | Processing Type: | Paper Towel Machine |
| High Light: | 240mm N Fold Paper Towel Making Machine,3200 Sheets/Min Paper Towel Making Machine,240mm N Fold paper napkin making machine |
||

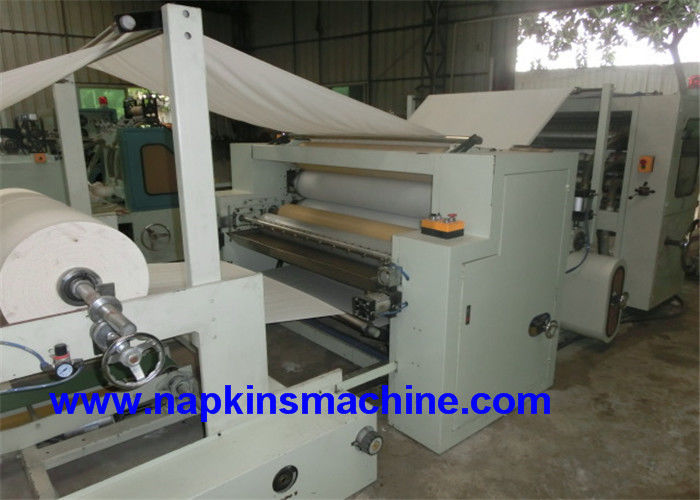

240mm Four Lane N Fold Paper Tissue Towel Making Machine 3200 Sheets Per Min
Specification for N FOLD Paper Towel Machine_20210...
Description

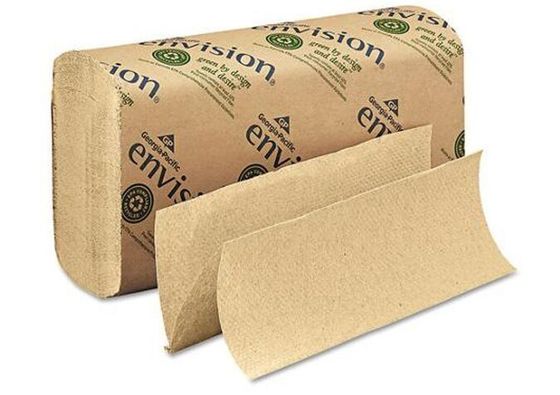

The machine embossing and cutting off the towel paper .The folding of product is “z” type folding and you can draw it one by one .This kind of towel paper is used widely in hotel, office and kitchen etc, that is convenient and sanitation. We adopt original creation full vacuum absorption technology, the adaptability of raw material is so strong .The folding, cutting ,counting etc several processes are going together.
Function and Features
1. Automatic counting sub-bit row of the output
2. Spiral blade shear, vacuum adsorption folding
3. Unwinding stepless speed regulation, can be adapted to high and low tension of the base paper
4. Electronically Controlled Pneumatic, easy to operate,two steel to rubber embossing,edge press device
5. Product width of the range, user-friendly marketing
The Main Technical Parameters
|
Max outer Dia. Of raw paper |
1200mm(other size to be specified) |
|
Inner Dia. Of raw paper core |
3’’(76.2mm) |
|
Drive form |
Frequency speed regulating |
|
Transmission belt |
Synchronous belt |
|
Embossing |
Steel to steel |
|
Counting |
Pneumatic |
|
Machine speed |
800pieces/lane/min |
|
Vacuum System |
Vertex vacuum pump |
|
Finished Products Unfolded Size (mm) |
190×200(Other sizes are available) |
|
|
Raw Material Diameter (mm) |
Φ1100(Other sizes are available ) |
|
|
Raw Material Core Diameter (mm) |
76.2mm(Other sizes are available) |
|
|
Speed |
600-900Pcs/Line/min |
|
|
Programmable controller |
PLC Programmable Controller |
|
|
Embossing Unit |
Steel to rubber , steel to steel |
|
|
Bottom Embossing Roller |
Felt roller, Paper roller, Rubber roller,steel roller |
|
|
Edge Embossing |
Steel to steel, independent adjustment |
|
|
Automatic Jumbo roll guiding system |
Option |
|
|
Slitting unit |
Pneumatic dot slitting |
|
|
Lubricating system |
Automatic key parts regular lubricating |
|
|
Driving system |
Timing belt driving system |
|
|
Counting system |
Alternate stack by stack |
|
|
Main Motor Power |
Frequency conversion speed regulator, 5.5-11 kw |
|
|
Vacuum suction unit |
11-32KW |
|
|
Pneumatic System |
3 HP air compressor mini pressure 5kg/cm2 Pa(Provided by client) |
|
|
Dimension(L×W×H) (mm) |
6370x(1780-2080)x2130 |
|
|
Weight |
4500-6500kg |
|
|
Programmable controller |
MITSUBSHI Programmable Controller (PLC), LCD screen operation panel |
|
|
Power |
Frequency conversion speed regulator, Electromagnetic speed-regulation motor |
|
|
Driving system |
Timing belt, chain |
|
|
Embossing Unit |
Steel to rubber , steel to steel |
|
|
Bottom Embossing Roller |
Felt roller, Paper roller, Rubber roller,steel roller |
|
|
Slitting unit |
Pneumatic dot slitting |
|
|
Edge Embossing |
Steel to steel, independent adjustment |
|
|
Vacuum suction unit |
Roots type vacuum pump |
|
|
Automatic Jumbo roll guiding system |
Option |
