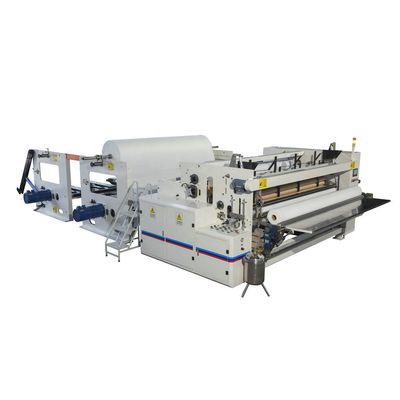

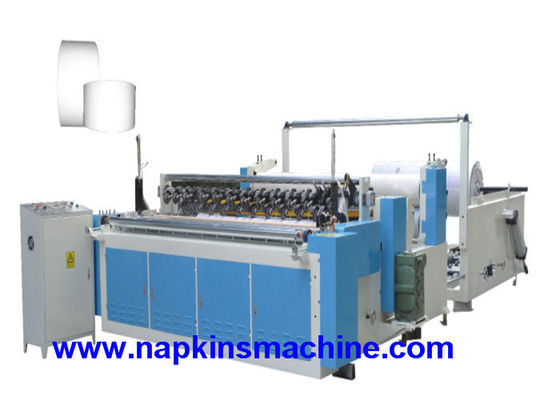

2750mm Width Paper Slitting Machine

2750mm Width Paper Slitting Machine

2750mm Width Paper Slitting Machine
  • 2750mm Width Paper Slitting Machine
  • 2750mm Width Paper Slitting Machine
  • 2750mm Width Paper Slitting Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-JR-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 40 Days after Down Payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets/Month
Contact Now
Detailed Product Description
Application: Jumbo Roll Speed: 200m/min
Raw Parent Roll Width: 1400-3500mm Perferation: 4 PCS
Winding: Auxiliary Rewinding Shaft Motor: Siemens
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Paper Slitting Machine Processing Type: Paper Slitting Machine
Highlight:

2750mm Width Paper Slitting Machinene

,

2750mm Width toilet paper roll machine

,

4 PCS toilet paper roll machine

High Speed Tissue Jumbo Roll Slitting Machine / Paper Slitter Rewinder Machine





Description



Jumbo Roll Bath Tissue Slitting Rewinding Machine for Maxi 3500mm Width  is to perforate and cut the raw paper into various sizes according to the requested.The finished product is neat, in good order and with equality tension.It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 120-160m/min.

This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory. This equipment can process raw paper of 1.75m(75B type) in width. There are two types of this model:

A) is ordinary type, it used one embossed unit for 2 ply paper,

B) other is dot-by-dot type, it used embossed units respectally for each one.

This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system.





Specification



Model 1092B 1575B 2000B 2200B 2400B 2600B 2800B
Width of raw material 1200mm 1750mm 1950mm 2150mm 2350mm 2550mm 2750mm
Dia.of finished product                             ¢60-150mm(the tension is adjustable)
Dia.of core of finished product                                     ¢20-50(core and coreless)
Dia.of raw material 1200mm(can accept customers’ requirement)
Thickness of raw material                                             14g/m2-20g/ m2
Dia of core of raw material                                           ¢76.2mm
Perforation distance 4 knifes 100-150mm(other specifications, please point )
Reeling speed 150-200m/min
Parameter setting Touch screen man-computer interface operation system
PLC PLC
Raw material holder 2 layers(3layer, please order)
Pneumatic system Pressure 5kg/cm2pa( prepared by customers)
Power 5.5-13kw
Overall Dimension (LXWXH):         6100X2650X1800-6100X4050X1800mm
Weight 3.5-7T
Embossment Single embossment, two side embossment and steel to steel embossing(depend on selection)
Embossment bottom roller:             Felt roller, wool roller and rubber roller (depend on selection)





Functions and Features



1. The transducer independent driver is used in the main motor;
2. The cutting knife automatically stops and gives an alarm;
3. When the paper can not be cut down, the equipment will stop and ask you to set the cutting depth.
4. The high precision servo system is used in the feed motor servo system, to ensure the quality of the finished product;
5. The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the length of the finished product;
6. When data input is incorrect, the equipment breaks off and prompts to adjust on the interface;
7. Cut with knife is used in the equipment, which reduce the use cost of the user;
8. The automatic sharpening knife system is used in the equipment, can adjust the sharpening knife system according the requirement of paper being cut, which increase the cutting life;
9. The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency

10. The thickness of paper core should be less 3mm

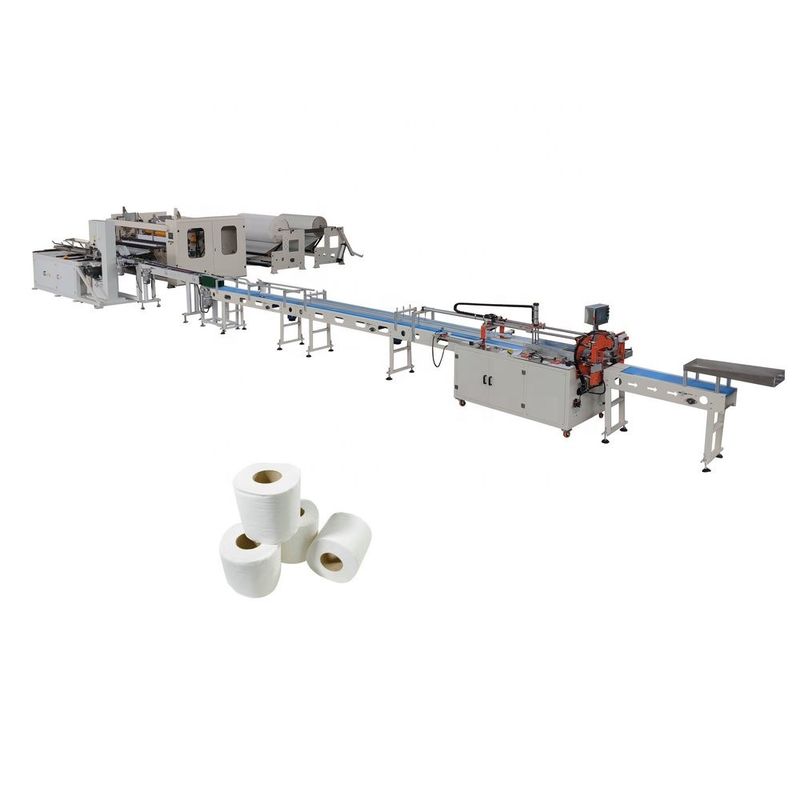

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

2750mm Width Paper Slitting Machine 0



Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model
1092B
1575B
1760B
2150B
2200B
2500B
2800B
Jumbo Roll Max. width
1350mm
1750mm
1880mm
2000mm
2150mm
2400mm
2750mm
Max. Jumbo Roll diameter

2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings

Standardφ3"(76.2mm) (Other sizes specified)

Data setting

HMI
Programming controller

PLC, touch screen

Operate Speed

0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
φ90-140mm
Finished Log Inner dia.
φ38-76mm
Perforation Distance
100-150mm
Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 7.5-15KW 380V,50HZ

Embossing unit

Steel to rubber

Dimensions
6x3x1.7 (length x width x height);(m)

Weight
3T-4T(depends on the Model you have )

Options:

Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit

1-2 Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic


Machine Detail Pictures:

2750mm Width Paper Slitting Machine 1
2750mm Width Paper Slitting Machine 2
2750mm Width Paper Slitting Machine 3

Deco Color Lamination Parts:

2750mm Width Paper Slitting Machine 4
2750mm Width Paper Slitting Machine 5
2750mm Width Paper Slitting Machine 6

Finished Products:

2750mm Width Paper Slitting Machine 7
2750mm Width Paper Slitting Machine 8
2750mm Width Paper Slitting Machine 9
