2850mm Width Toilet Roll Making Machine 200m/ Min 3HP Full Auto

2850mm Width Toilet Roll Making Machine 200m/ Min 3HP Full Auto

2850mm Width Toilet Roll Making Machine 200m/ Min 3HP Full Auto
video
2850mm Width Toilet Roll Making Machine 200m/ Min 3HP Full Auto
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-IP-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 40 Days after Down Payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets/Month
Contact Now
Detailed Product Description
Application: Industrial Roll Speed: 200m/ Min
Raw Parent Roll Width: 1400-3500mm Touch Screen: Delta
Automation: Full Auto PLC: Siemens
Voltage: 380V, 50HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Toilet Paper Making Machine Processing Type: Toilet Paper Making Machine
High Light:

2850mm Width Toilet Roll Making Machine

,

Toilet Roll Making Machine 200m/ Min

,

3HP Toilet Roll Production Line

High Speed Toilet Paper Roll Making Machine Line Can Connect The Cutting Machine And Semi Automatic Packing Machine


Description

Full Automatic Kitchen Towel and Toilet Tissue Paper Roll Making Rewinder Machines can slit and rewind the single ply tissue into two, three or four plies tissue, for the production of paper towels, napkin paper, boxed tissue, facial tissue and so on.

The machine features good mechanical performance, compact structure, pneumatic parts, stable running, and easy operation. The finished products have a compact structure.



Specification





Model

2900

Raw Material Width(mm)

2850

Speed

400-500m/min

Finished products diameter(mm)

diameter 1300

Slitting Width(mm)

adjustable

Finished products core Diameter(mm)

76.2(Please specify other specifications)

Unwinding Unit

1-3 layer(Can be appointed)

Base paper core shaft

Air-shaft

Rewinding System

Pneumatic timing rewinder

Slitting System

Automatic slitting control

Discharging Unit

Automatic discharging

Edge Cutting Unit

Vacuum suction edge cutting 1.5 KW

Power

Frequency conversion speed regulate 11KW

Double embossing frequency conversion speed regulate 15KW

Pneumatic system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Dimensions(L x W x H)(mm)

8500X4000X2100

Weight

5000KG







Functions and Features



1 . Synchronous belt transmission, make it stable-running and less noise even though at high speed operation.





2 . Adopt the widen belt on back-stand to increase the friction when feeding paper.





3 . Equipped with newly fasten unit, making it is convenient to adjust the raw material.





4 . With the function of pneumatic paper loading, edge vacuum suction.





5 . Automatic finished roll discharging, Solve the deformation caused by falls paper phenomenon, save the labor force. (Optional)



6 . Easy operation, the finished products have good winding profiles and clean cutter.




Full Automatic Kitchen Towel and Toilet Tissue Paper Roll Making Rewinder Machines

this equipment is to perforate and cut the raw paper into various sizes according to the requested.
The finished product is neat, in good order and with equality tension.


It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 120-160m/min.


This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory. This equipment can process raw paper of 1.75m(75B type) in width. There are two types of this model:


A) is ordinary type, it used one embossed unit for 2 ply paper,
B) other is dot-by-dot type, it used embossed units respectally for each one.


This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system.

The production process is : unreeling -→ embossing and gluing lamination-→perforating-→furl-→slitting

Product Name
Full Automatic Kitchen Towel and Toilet Tissue Paper Roll Making Rewinder Machines
Production speed
180-240m /min
Power of equipment
5.5kw (380V 50Hz)
Overall size(mm)
6200X2750X1800 (LxWxH)
Weight
About 3.2T
Width of raw paper
1200MM
Diameter of raw paper
700mm-1200mm
Thickness of raw paper
14g/m2-20g/ m2 or 38g/m2
Products Show

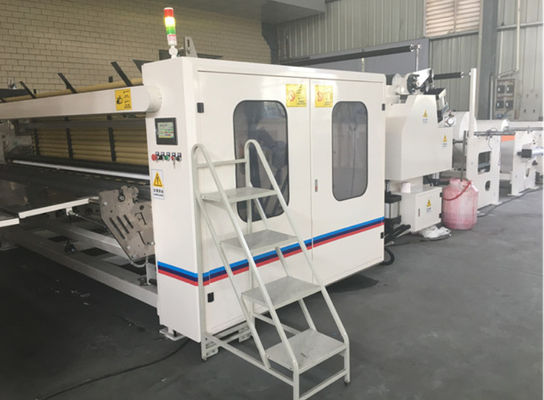

2850mm Width Toilet Roll Making Machine 200m/ Min 3HP Full Auto 0

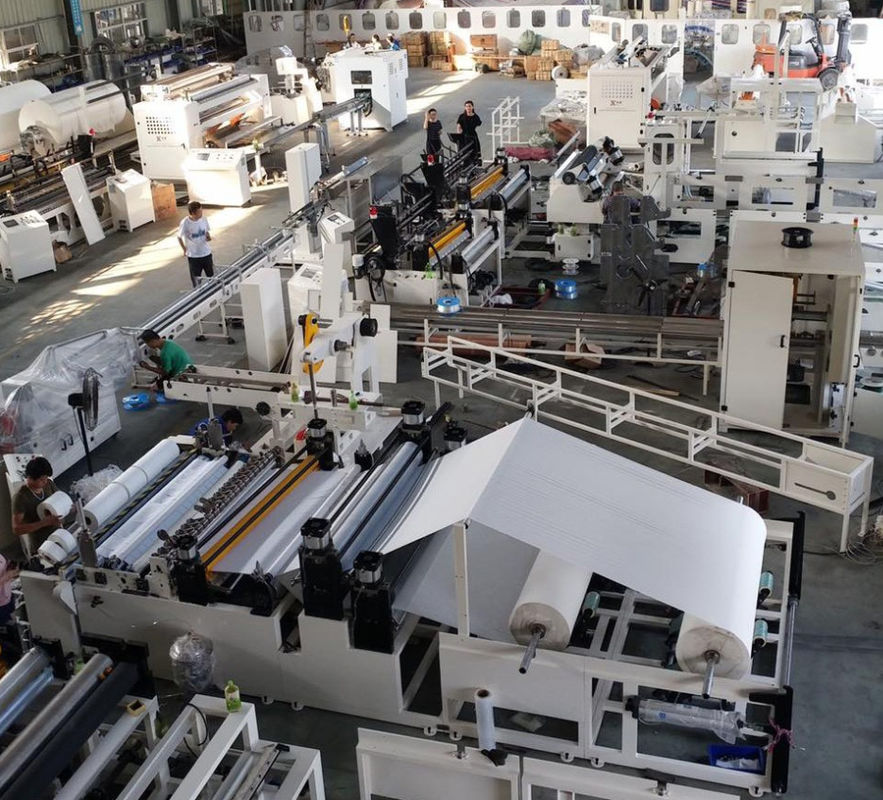

2850mm Width Toilet Roll Making Machine 200m/ Min 3HP Full Auto 1
2850mm Width Toilet Roll Making Machine 200m/ Min 3HP Full Auto 2
