| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-NK-I |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 40 DAYS AFTER DOWN PAYMENT |
| Payment Terms: | T/T |
| Packaging Type: | Bag | Packaging Material: | CPP, PE And So On |
|---|---|---|---|
| Dimension: | 3560*5885*1925mm | Weight: | 2000kgs |
| Speed: | 40-70bags Per Min | Motor: | Simens |
| Frequency Converter: | Siemens | Voltage: | 380V, 50 HZ OR CUSTOMERIZED |
| Dimension(l*w*h): | 3200*1000*1800mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation |
| Condition: | NEW | Warranty: | One Year |
| Type: | Multi-Function Packaging Machine, Other, Packaging Line | Function: | Sealing, Wrapping, Filling, Gluing |
| Packaging Material: | Plastic, CPP, PE | Automatic Grade: | Semi Automatic |
| Power(w): | 2.5KW | Product Type: | Napkin Packing Machine |
| Processing Type: | Napkin Packing Machine | ||
| High Light: | 2.5KW Conveyor Belt Tissue Paper Packing Machine,2 Lane Tissue Paper Packing Machine,2.5KW Conveyor Belt tissue packaging machine |
||

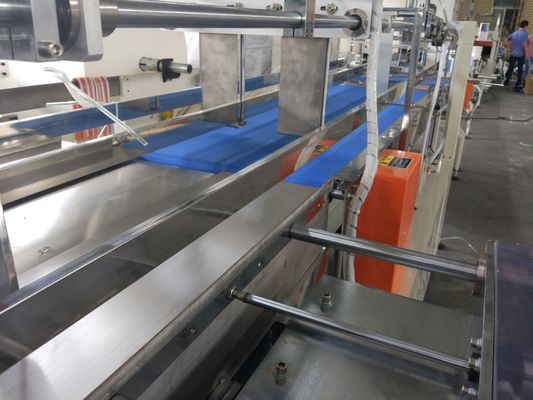

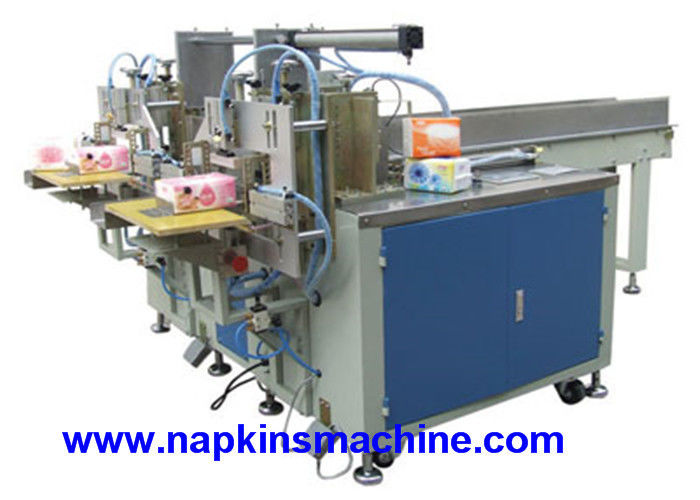

Napkin Folding Tissue Paper Packing Machine With Conveyor Belt , Two Lane
Description
Semi Auto Table Napkin Tissue Paper Packaging Machine Two Lanes is suitable for soft pumping paper / hood / party bag / napkin / towel paper and paper packaging, using advanced PLC computer programming control, folding fork angle, seal as a whole, horizontal flat packing mode of operation , conveyor belt heated to high temperatures, sealing both ends of the flat, packing effects more full.
Main features:
1 . This machine combine with the functions of packing and sealing,adopts PLC computer control ,easy to
operate and precise control.
2 . The good sealing effect,neat and and stable function,and the machine is adjustable .
3 . Semi-automatic control ,the two machine place opposite directions,the cooperation of worker and
machine, achieve the double effect,to save the manpower and reduce the cost .
4 . Packing speed:8 -15bags/min,the combination of two machine can realize the capacity of 20-25bag/min.The specification of the machine can be customed.
Parameters
|
Power Source |
220V 50HZ |
|
Air supply |
0.3-0.6mpa |
|
Machine speed |
7-12bags/min(Matched with single package automata) 7-12 bag/min |
|
Weight |
200Kg |
|
Machine sizes |
3000mm*600mm*1200mm(L×W×H) |
|
Pack size |
280*75*45(L*W*H)mm |
|
Maximum size |
330*105*75(L*W*H)mm |
|
Product range |
Handkerchief paper bag in the packing,production should specify the packing specification |
Final Products:
