| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-IP-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Days after Down Payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets/Month |
| Application: | Industrial Roll | Speed: | 200m/min |
|---|---|---|---|
| Raw Parent Roll Width: | 1400-3500mm | Perferation: | 2 PCS |
| Winding: | Auxiliary Rewinding Shaft | Motor: | Siemens |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Toilet Paper Making Machine | Processing Type: | Toilet Paper Making Machine |
| High Light: | 2 PCS Toilet Roll Making Machine,1400mm Width Rewinding Toilet Roll Making Machine,2 PCS tissue paper machinery |
||

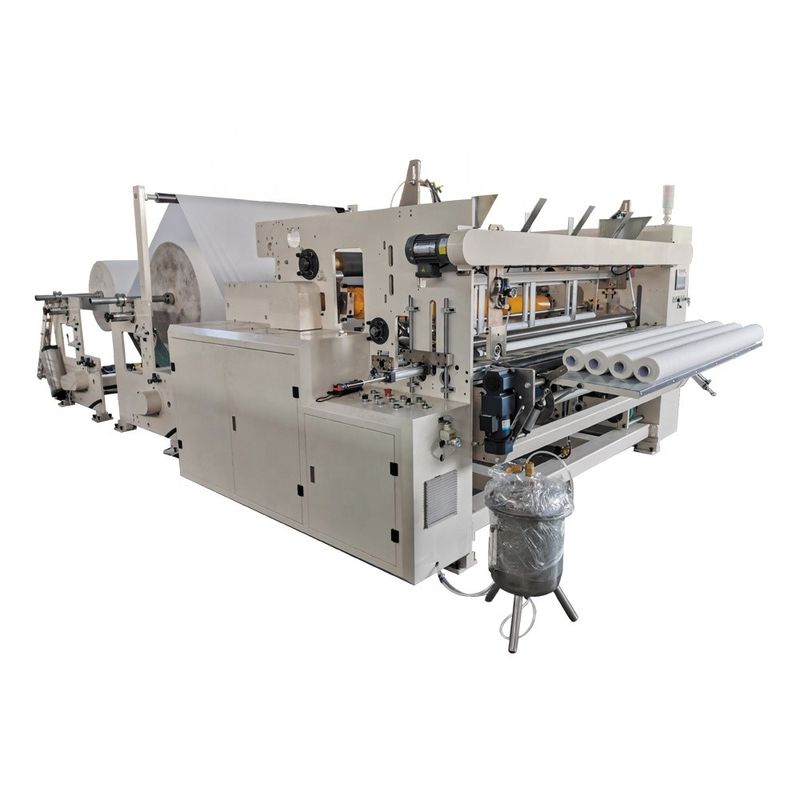

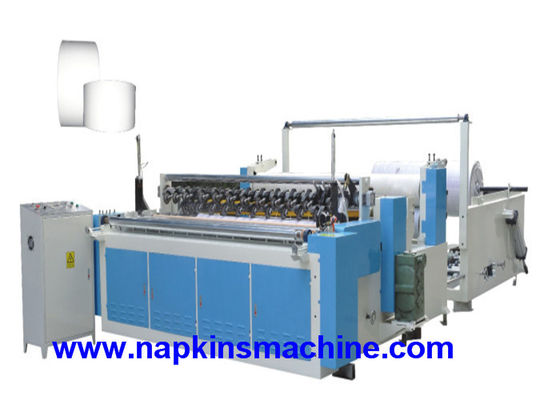

High Speed Fully Auto Paper Roll Rewinding Machine / Paper Slitter Machine
Description
High Speed Full Automatic Big Roll Rewinding and Slitting Machine slitting the raw material at high speed, which introduces advance technology .The operation
situation can be monitored by remote telecom system which greatly improve the productivity. Especially
the calendar system which has achieved the international standard, it is your first choice for slitting
equipment.
Specification
|
Machine Model |
1092 |
1575 |
2000 |
2200 |
2500 |
2800 |
3000 |
|
Raw Material Width |
1300 |
1800 |
2000 |
2200 |
2500 |
2800 |
3000 |
|
Finished Roll Diameter (mm) |
Φ90~300 ((Tightness adjustable) ) |
||||||
|
Raw Material Diameter (mm) |
Φ1200 mm (Other sizes are available ) |
||||||
|
Raw Material Core Diameter |
76.2 mm Other sizes are available) |
||||||
|
Perforation(mm) |
90~160mm |
||||||
|
Speed |
150-200 m/min |
||||||
|
Rewinding |
By air-shaft |
||||||
|
Embossing Unit |
Single ply embossing, double ply embossing, steel to steel embossing |
||||||
|
Bottom Embossing Roller |
Felt roller, Paper roller, Rubber roller |
||||||
|
Unwinding Unit |
1-3ply |
||||||
|
Calendering |
Steel to steel, steel to rubber |
||||||
|
Pneumatic System |
3 HP air compressor, Mini pressure 5kg/cm2 Pa(Provided by client) |
||||||
|
Power |
4.5-11 kw |
||||||
|
Dimension(mm) (L×W×H) |
6200x2600x1800~6200x4000x1800 mm |
||||||
|
Weight |
depend on the size and configure |
||||||
|
Option |
|
||||||
|
Embossing Unit |
Single ply embossing, double ply embossing, steel to steel embossing |
||||||
|
Bottom Embossing Roller |
Felt roller, Paper roller, Rubber roller |
||||||
|
Unwinding Unit |
1-3 ply |
||||||
|
Edge Embossing Unit |
Option |
||||||
|
Calendering Unit |
Steel to steel, steel to rubber |
||||||
|
Tail Suction Unit |
Vacuum tail suction function, 1.5kw |
||||||
|
Tail Sealing Unit |
Option |
||||||
|
Driving system |
Frequency conversion speed regulator |
||||||
Functions and Features
1. It consists of pneumatic lifting device, raw paper unwind system, main machine body rack, calender structure, slitting system, rewinding system etc .It absorbs the advantages of the similar equipments from home and abroad, adopts domestic high grade main parts.
2 . It has good feature, fully use pneumatic devices, running stably at fast speed, has easy operation.
3 . Whole machine adopts superior steel to design and manufacture precisely, the parts which contact the raw paper all are process with advanced metal face dealing craftswork.
4 . It adopts pneumatic lifting device ,so can save the labor to load the raw paper ,also it adopts pneumatic type raw paper unwinding device and pneumatic type holding, rewinding structure.
5 .The slitting blade are all superior ,durable ,wear well, and can be exchanged easily and adjusted slitting specification.
6 .The whole machine has the fan absorbing edge function ,the stepless speed regulating motor is easy to control and adjust. The electrical control box panel is easy and can operate easily.
Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Specification:
Machine Detail Pictures:
Deco Color Lamination Parts:

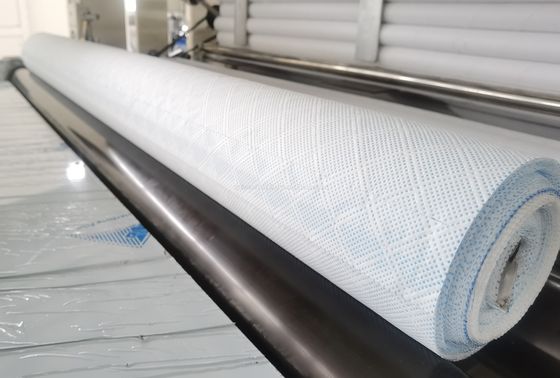

Finished Products:
