Product Details:
Payment & Shipping Terms:
|
| Speed: | 3000 Sheets / Min | Embossing: | Steel To Paper Or Steel To Steel |
|---|---|---|---|
| Important Parts Bearing: | NSK | Thickness Of Back Stand: | 20mm |
| Thickness Of Embossing Parts: | 40mm | Thickness Of Cylinder Head: | 30mm |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 3200*1000*1800mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 5.5KW |
| Product Type: | Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Napkin Making Machine | Processing Type: | Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Napkin Making Machine |
| Application: | Napkin Folding Machine To Produce Napkin Paper | ||
| High Light: | 3000 Sheets/Min Napkin Embossing Machine,3000 Sheets/Min tissue paper production machine,300mm size tissue paper production machine |
||

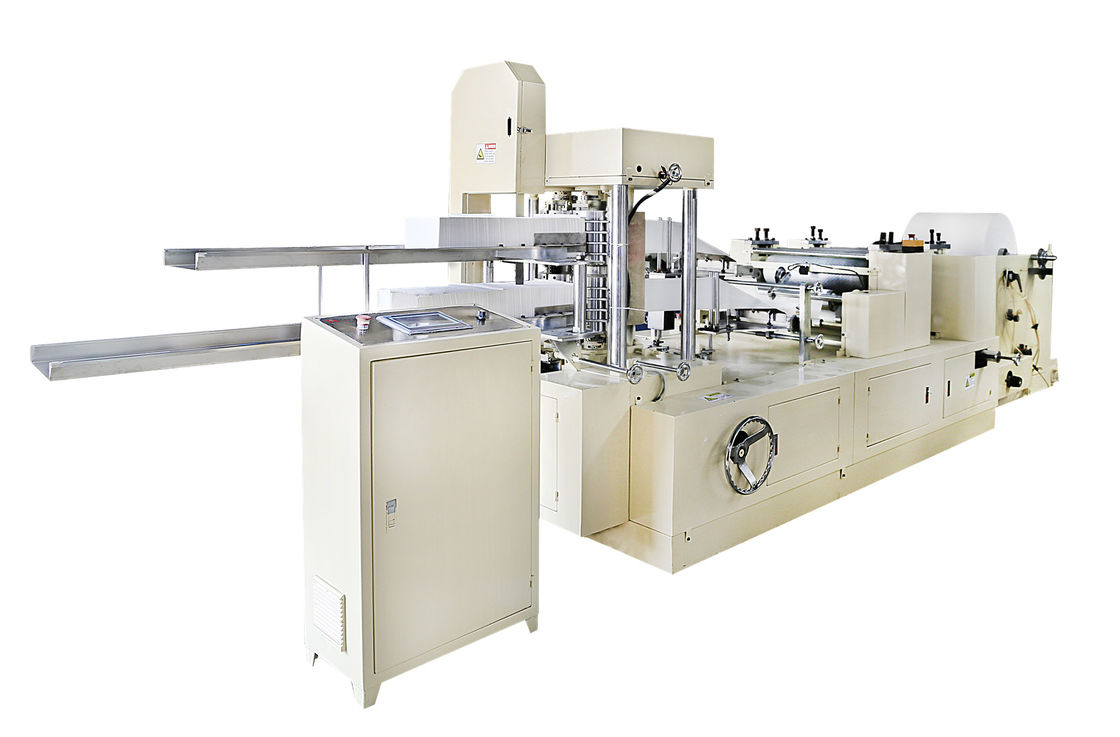

Full Automatic 4 fold Napkin Tissue Making Machine 3000 Sheets Per Min
Description
Full Automatic 4 fold Napkin Tissue Making Machine 3000 Sheets Per Min is used for making rectangle and square by embossing, folding, electronic counting and cutting. Automatic embossing and folding, without manual folding. The machine size varied from 200mm to 430mm to be customerized. The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size.
Specification
|
Open size of finished product |
200*200-430*430mm (to be specified) |
|
Diameter of Raw Paper Roll |
1100mm(other size to be specified) |
|
Inner Diameter of Paper core |
76.2mm(3 inch) (other size to be specified) |
|
Capacity |
3000pieces/min |
|
Counting Device |
Electronic Counting |
|
Embossing Roller |
Woolen Roller |
|
Power |
Frequency Conversion Speed Regulator |
|
Calendaring |
Steel to steel or steel to rubber |
|
Embossing unit |
Felted roller, woolen roller, Rubber roller |
|
Color Printing |
1-2 color |
|
Dry Device |
Hot Wind Heating System |
Spare Parts List
|
NO |
ITEM |
QUA |
|
1 |
Plastic male knife |
4 |
|
2 |
Band Saw |
2 |
|
3 |
Tool Box |
1 |
|
4 |
Grinding Stone |
4 |
Feature
Speed: 3000 sheets / min
Folding Type: 1 / 4 and 1 / 8 or 1 / 6 or M fold or Two folding Type
Embossing: steel to steel or steel to paper.
Important parts Bearing: NSK
Important parts Steel: SKD
PLC: Delta
Frequency Converter Delta
Pneumatic Parts AIRTACK
Motor: SIEMENS
Pneumatic Parts AIRTAC
Photoelectrical switch (magic eye) Omron
20mm thickness wall board plate for back stand
40mm thickness wall board plate for embossing unit and color printing unit
30 mm thickness wall board plate for cylinder folding parts
Introduction of main parts

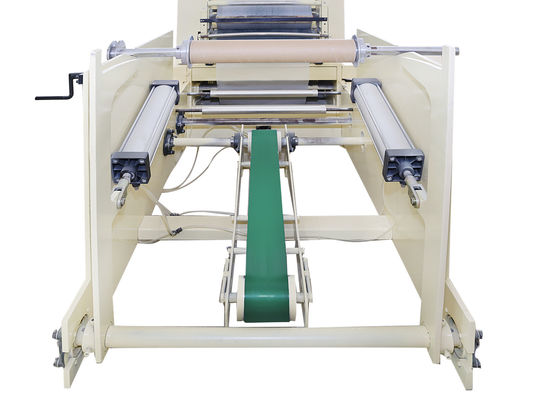

Paper-feeding part
One Layer and Belt to deliver paper and controlled by Pump
Raw Paper Manual Adjustment
Embossing Part
One unit steel to woolen Roller
Mechanical pressure control
cotton cloth and paraffin oil Cleaning Device
Folding Part
Leading Paper Roll Function , the folding tension of the fore part adjustable
Counting Device: Pneumatic dislocation type
Control Unit
Frequency Conversion Device
Automatic Counting Function
Emergency Device
Voltage: AC380V 50HZ Main Motor 2.2KW,
Air pressure required less than 0.5 MPA
Q1: Can you guarantee your quality?
A: Of course. We are the manufacturer. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production.
Q2: How long is your delivery time?
A: Generally it is 40-60 working days.
Q3: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance, balance before shippment.
Q4: How to place the order?
A: Please send us your purchase order by inquiry, and ask us to send you Proforma Invoice for your order. We need to know the following information for your order:
1) Product information: material, drawings ,sizes ( diameter range and thickness range), Application, Price Item, Destination Port.
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
