Name: 300 m / Min Auto Trimming Toilet Roll Making Machine
Brand: YUSHENGDA
SKU: SYM-NPK-II
Price: 28000 USD

Home Products Toilet Roll Making Machine

300 m / Min Auto Trimming Toilet Roll Making Machine

Product Details:

Place of Origin:	China
Brand Name:	YUSHENGDA
Certification:	CE
Model Number:	SYM-NPK-II

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 28000
Packaging Details:	Wooden pallet at the bottom and plastic film packing for the machine Body
Delivery Time:	60 days after down payment
Payment Terms:	T/T
Supply Ability:	20 SETS PER MONTH

Contact Now

Detailed Product Description

Voltage:	380V, 50 HZ OR CUSTOMERIZED	Power(w):	7.5KW
Condition:	NEW	Weight:	6500KGS
Production Capacity:	200-300m/min	Name:	Toilet Paper Making Machine/tissue Paper Manufacturing Machine, Paper Napkin Equipment Converting Machine To Make Square Napkin, Automatic Paper Napkin Making Machine Price, Napkin Tissue Paper Machine, Toilet Paper Making Machine
Speed:	200-300m/min	Processing Type:	Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Napkin Making Machine
Product Type:	Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Napkin Making Machine	Certification:	CE
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Warranty:	One Year
Dimension(lwh):	620022002200mm
High Light:	300m/min Toilet Roll Making Machine , Auto Trimming Toilet Roll Making Machine , Auto Trimming toilet paper roll making machine

High Speed Toilet Tissue Paper Making Machine , Auto Trimming / Gluing And Sealing

Description

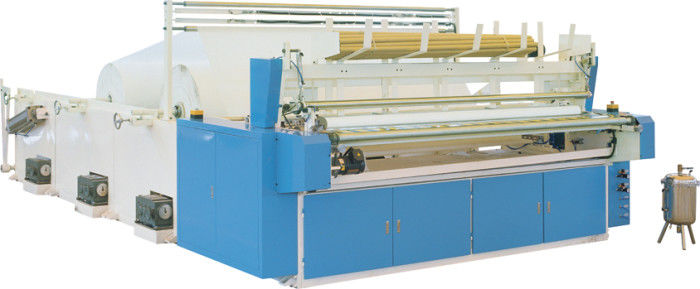

Automatic Toilet Tissue Paper Embossing Perforating Making Machine has been integrated with the internationally advanced PLC technology. It has variable speed adjustment and touch human-machine interface operating system. It adopts newly designed glue applicator unit which makes the gluing more uniform. It can add 1-3 colors’ water ink printing system for printing diversified fine pattern, brand which is with characters of clear and bright printing, exact overprint, high speed and stable running.

Feature

1. Automatic core loading and positioning, after rewinding a roll of paper, paper tube will be placed in the next predetermined position and start to rewinding the paper roll.

2. Automatic trimming, gluing and sealing: After completion of paper roll, automatic cut off the web, and glue spraying, and then automatic sealing,the whole paper roll is finish

3. When the finished log come to tail sealer, trimming, glue spraying and sealing can be finished at the same time.

4. with independent driving accumulator.

5. with band saw, can constitute a simple production line

6. full automatic production line DCY50104,This production line is composed of rewinder, Log accumulator, Log saw cutter

7. edge embossing unit,embossing unit,lamination unit is order by customer,Produce different patterns and types of toilet paper, kitchen towel

Parameter

Machine type	1092	1575	1760	2200	2500	2800	3000	3200
Max width of raw paper	1300mm	1800mm	2000mm	2200mm	2500mm	2800mm	3000mm	3200mm
Outer Dia. of raw paper	1200mm(other size to be specified)

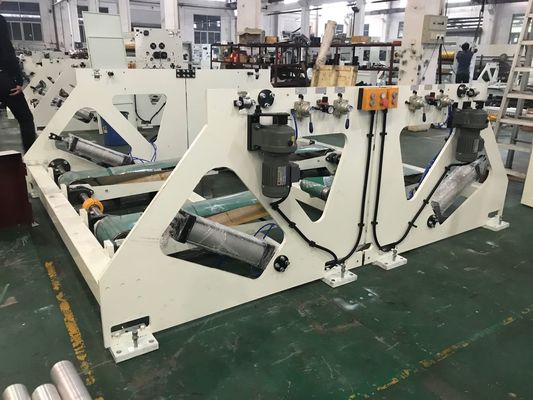

Paper unwinding stand	1-3 layer (The Qty. of raw paper rolls to be specified)(to be ordered)
Inner Dia. of raw paper core	3”(76.2mm)(other size to be specified)
Parameter setting	HMI Operation interface/touched screen
Programming control	PLC
Braking	Electronical /Air pressure control
Machine speed	0-200m/min
Operating speed	0-180m/min
Outer Dia. of finished product	90-135mm(other size to be specified)
Inner Dia. of finished product core	25-50mm
Control of the outer Dia. Finished	Electronical /pneumatic
Perforating	4 pieces of Anvil soft blades, size is 108±2mm (other size to be specified)
Perforating size	Be adjustable
Pneumatic system	3HP Air compressor, with the min. pressure is 5kg/cm2pa(supplied by user)
Control voltage	Stable voltageDC24V
Mechanical structure	Wall plate type
Mechanical transmission	Stepless Gearbox
Transmission method	Link Chain
Power	5.5-22kw Variable Frequency speed regulating
Control of perforating	Pneumatic
Additional function(to be ordered)
Embossing	Single embossing, double embossing, steel to steel embossing, pneumatic embossing
Edge –embossing	Special pneumatic edge embossing device
Gluing	Kitchen towel: point to point gluing/point to side gluing
Decorative glueing system	Pattern is as per the embossing design

Optional Equipment:

1. Two embossing units can be equipped with 3 laying paper stand.

2. Electric unit adopts famous brand of China, called “Zheng da” electric unit. This machine also equip with PLC, it has reasonable structure and easy operation.

3. Axletree adopts famous brand of China, called Ha er bin axletree.

The name of spare part of the machine:

1. Use processing, anti-pressure and capable of damage transition of steel axle.

2. Electric unit adopts famous brand of China, called “Zheng da” electric unit. This machine also equip with PLC, it has reasonable structure and easy operation.

3. Axletree adopts famous brand of China, called Ha er bin axletree.

Electrical Parts and other Parts brand

NO	Name	Brand	Original Place
1	Frequency Panel	Siemens	Germany
2	Motor	Siemens	Germany
3	Pneumatic Parts	Schneider	Germany
4	Knife bearing	NSK	Japan
5	Steel	SKD	Japan
6	Touch Screen	Delta	Taiwan
