| Place of Origin: | Dongguan, Guangdong, CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-NP-II |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 45 days after down payment |
| Supply Ability: | 2 sets per month |
| Speed: | 3000 Sheets / Min | Important Parts Bearing: | NSK |
|---|---|---|---|
| Thickness Of Back Stand: | 20mm | Thickness Of Embossing Parts: | 40mm |
| Thickness Of Cylinder Head: | 30mm | Folding: | Four Fold And Eight Fold And Two Fold |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 3200*1000*1800mm |
| Warranty: | One Year | Product Type: | Napkin Making Machine |
| Processing Type: | Napkin Folding Machine | ||
| High Light: | 300mm size Napkin Folder Machine,1600 Pcs/Min Napkin Folder Machine,1600 Pcs/Min napkin manufacturing machine |
||

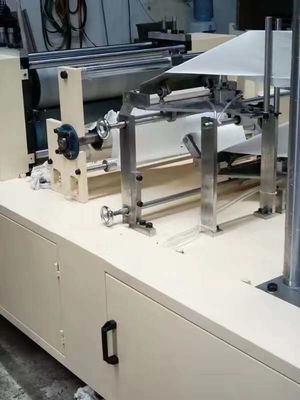

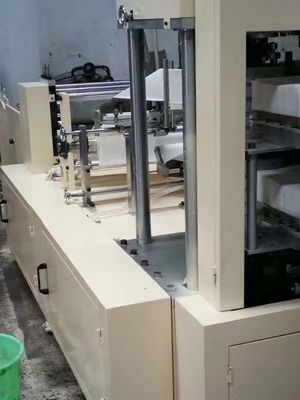

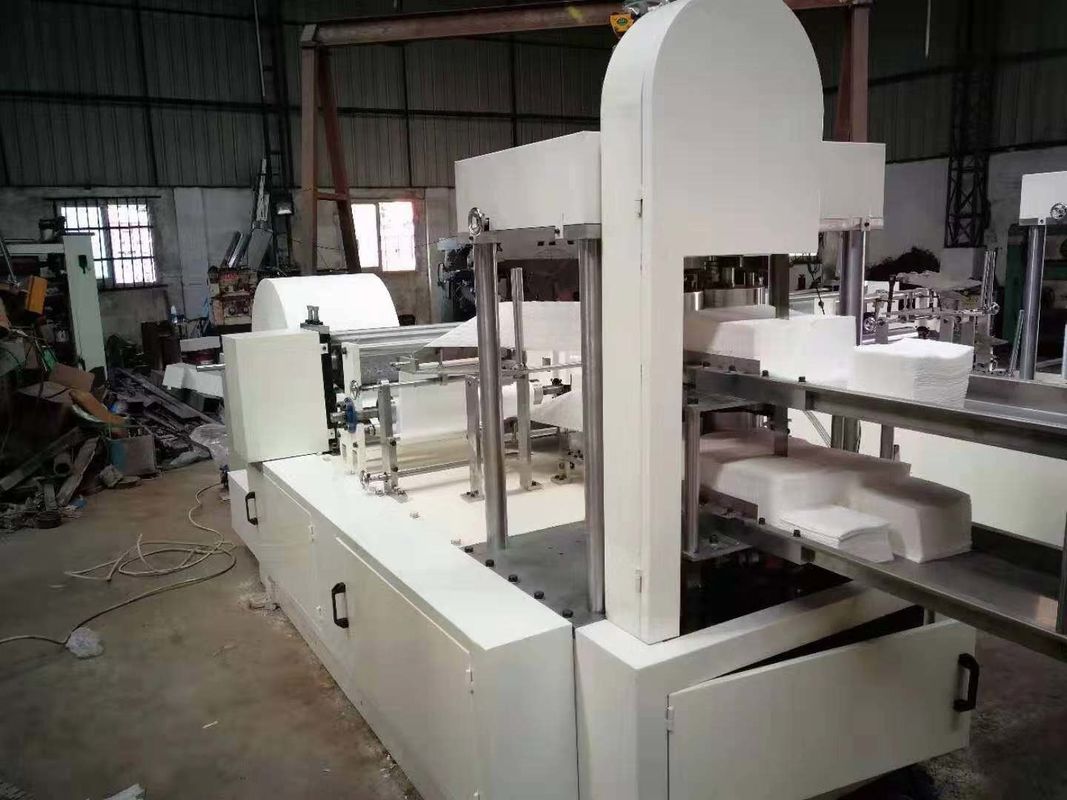

300mm Size 1600 Pcs / Min Napkin Folder Machine / Napkin Manufacturing Machine
Description
300mm Size 1600 Pcs / Min Napkin Folder Machine / Napkin Manufacturing Machine is used for making napkin tissue by embossing, folding, electronic counting and cutting.The machine size varied from 200mm to 430mm to be customerized. The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size.
Specification
|
Folding size |
140*140mm |
|
Unfolded size |
280*280 mm |
|
Specification of raw paper |
<= 560*1200 mm |
|
Machine capcaity |
speed is 1600 pcs/min |
|
Folding way |
double triangle 1/4 folding |
|
Embossing unit |
The buyers should prepare it by themselves,we provide drawing |
|
Paper breakdown device (it is set between embossing unit and forming unit .). |
|
|
One group knives:it automatically cut raw paper. |
|
|
The guide pipe is made from aluminum alloy,which can make sure the concentricity. |
|
|
Feeding part:It adopts belt to control the feeding process ,AP ration geal can adjust stepless. |
|
|
Loading material pneumatically(the buyer should prepare the air compressor by himself ). |
|
|
Sharpen the knives pneumatically . |
|
|
Automatic counting system, |
|
|
Main motor is frequency conversion motor:3kw,380v,50HZ. |
|
|
Machine head transmission |
standard struction commutator. |
|
Output holder is double layer and made from stainless steel. |
|
Spare Parts List
|
NO |
ITEM |
QUA |
|
1 |
Plastic male knife |
4 |
|
2 |
Band Saw |
2 |
|
3 |
Tool Box |
1 |
|
4 |
Grinding Stone |
4 |
