Place of Origin: | CHINA |
Brand Name: | YU SHENG DA |
Certification: | CE |
Model Number: | YSD-FP-I |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Case |
Delivery Time: | 50 Days after down payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 5 Sets Per Month |
Application: | Carton Box Packing Facial Tissue | Speed: | 25-60 Carton Per Min |
---|---|---|---|
Packing Material: | CPP And So On Plastic Film | PLC: | SIEMENS |
Motor: | SIEMENS | Voltage: | 380V, 50 HZ OR CUSTOMERIZED |
Dimension(l*w*h): | 6200*2200*2200mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation |
Condition: | NEW | Warranty: | One Year |
Type: | Multi-Function Packaging Machine, Other, Packaging Line | Function: | Sealing, Wrapping, Filling, Gluing |
Automatic Grade: | Automatic | Product Type: | Box Packing Machine |
Processing Type: | Box Packing Machine | ||
High Light: | 30box/Min Facial Tissue Packing Machine,Servo Motor Facial Tissue Packing Machine,30box/Min facial tissue production line |

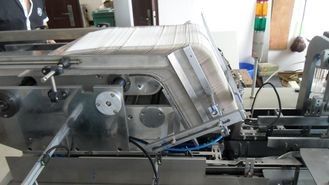

30 box / Min Servo Motor Facial Tissue Packing Machine / Facial Tissue Production Line
Applications:
30 box / Min Servo Motor Facial Tissue Packing Machine / Facial Tissue Production Line is suitable for automatic boxing of napkins, sanitary towels, pads, wet tissues,etc. Our machine has passed CE certification. It has been used by many domestic and international enterprises in such industries as APP,Fine, Nepia, Vinda, Deli, TRUECOLOR, BEIFA, brother, GLAD, etc. Also we can provide personalization design to meet the requirements of different customers. Meanwhile, we can provide resources and technical support to help the customer to build their ideal factory.
Machine Feature
1,High output. The stable speed can reach 80 boxes/minute.
2,Complete functions. The machine is suitable for various applications such as semi-cover/full-cover, or high paper and low box/low paper and high box.
3,Rapid production changing. It only takes 10-20 minutes to change the specifications.
4,Convenient operation. It is easy to control the servo paper feeding and PLC control system.
5,Low cost. The imported glue machine with a nozzle of 0.3mm is adopted and the glue-spread is little.
Application range:
It is suitable for automatic boxing of facial tissues, square tissues, pocket tissues,cotton tissues etc.
Main performances and structure features:
Main technical parameters
Items | Technical parameters |
Packing dimension (mm) | Max:L240mm×W120mm×H100mm |
Packing dimension (mm) | Min:L110mm×W110mm×H30mm |
Paper requirement | 300-400G/M3 |
packing speed(bags/min) | 85pcs/min |
Glue machine power supply(KW) | 2.32 |
Packing machine power supply(KW) | 2.74 |
Totally power supply(KW) | 5.1 |
Electric type | 3phase 4wire |
Machine noise(DB) | ≦80 |
Weight (KG) | 3500 |
Outline dimension (mm) | 3513×3023×1650 |
Air supply(MPA) | 0.5-0.8 |
Machine Configuration
PLC | Panasonic |
Touch screen | Omron |
Frequency converter 1.5KW | Panasonic |
Frequency converter 0.4KW | Panasonic |
Servo 0.75KW | Delta |
Servo 0.75KW | Delta |
Encode 600 wire | Autonics |
Lower pressure | Schneider |
Carton Box Facial Tissue
Automatic facial tissue paper carton box packaging machine
It is suitable for automatic boxing of facial tissues, square tissues, pocket tissues,round box tissue ,cotton tissues etc
Items | Technical parameters |
Packing dimension (mm) | Max:L240mm×W120mm×H100mm |
Packing dimension (mm) | Min:L110mm×W110mm×H30mm |
Paper requirement | 300-400G/M3 |
packing speed(bags/min) | 85pcs/min |
Glue machine power supply(KW) | 2.32 |
Packing machine power supply(KW) | 2.74 |
Totally power supply(KW) | 5.1 |
Electric type | 3phase 4wire |
Machine noise(DB) | less than 80 |
Weight (KG) | 3500 |
Outline dimension (mm) | 3513×3023×1650 |
Air supply(MPA) | 0.5-0.8 |
