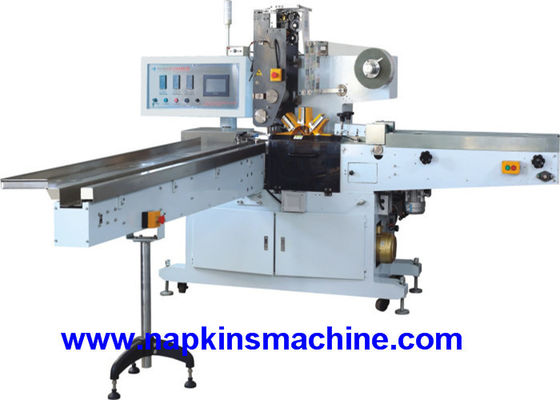

35 bags / Min Napkin Packing Machine

35 bags / Min Napkin Packing Machine
35 bags / Min Napkin Packing Machine 35 bags / Min Napkin Packing Machine 35 bags / Min Napkin Packing Machine

Large Image :  35 bags / Min Napkin Packing Machine

Product Details:

Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-NK-I

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: WOODEN CASE
Delivery Time: 40 DAYS AFTER DOWN PAYMENT
Payment Terms: T/T
Detailed Product Description
Packaging Material: CPP, PE And So On Dimension: 3560*5885*1925mm
Weight: 2000kgs Speed: 40-70bags Per Min
Frequency Converter: Siemens Automatic: Full Automatic
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Type: Multi-Function Packaging Machine, Other, Packaging Line
Function: Sealing, Wrapping, Filling, Gluing Packaging Material: Plastic, CPP, PE
Automatic Grade: Automatic Driven Type: Electrical
Packaging Type: BAGS, FILMS Power(w): 7.5KW
Product Type: Napkin Packing Machine Processing Type: Napkin Packing Machine
High Light:

35bags/Min Napkin Packing Machine

,

35bags/Min paper napkin packing machine

,

CE paper napkin packing machine

Toilet Paper Wet Napkin Packing Machine 25-35 bags / min , Custom Printed





Description



Full Automatic Napkin Packing Machine For Plastic Film Packingis mainly applicable to pack printed napkin and square face-cloth, also applies to three-dimensional transparent film pack other corresponding vierkante size items. This machine with compact structure, attractive appearance, simple operation, easy maintenance, high degree of automation advantage, with moisture protection, durability, improve product quality function. This is an ideal automatic napkin packaging equipment.





Main features



1. This machine is suitable for packing printed napkin.
2. Using multi-functional digital frequency adjustment, PLC programmable control system to make the control more advanced and easier to adjust and maintain;
3. Touch-screen operation interface make human-machine conversation more friendly, the parameter setting is more convenient and faster;
4. No film automatic alarm, fault alarm display makes operation and maintenance more convenient and faster.

5. There are fixed length and label following two methods for controlling pull film length.
6. The electrical components adopt international famous brand, quality is more stable and reliable;
7. Vacuum film feeding system to send film more smoothly, working more stable;
8. Can be equipped with printing devices according to customer's requirements;
9. Specifications changed fast and convenient





Parameters



Capacity

25~35bags/min.

Packing range

L:100-180mm W:100-180mm H:15-50mm

Power

380V 50HZ

driving motor power

0.75KW

Heating power

3KW

total power

6.33KW

Air compressor

0.6MPa

Packing material

CPPOPP the thickness of  two sides heating film 0.035-0.05mm

Machine size(L*W*H)

2544*2600*2020mm

Machine weight

2000kg



Product Description

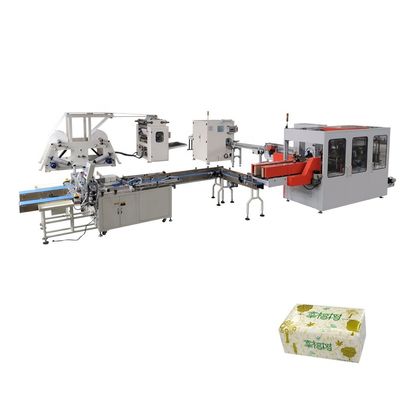

High Quality Facial Tissue Machine Paper Product Making Machinery

35 bags / Min Napkin Packing Machine 0



Features:

Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.

1.Can order steel to rubber embossing rolls,pneumatically separated.

2.Wallboard rack and Machine running stability and extremely good and fast.

3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.

4.Equipped with roots type vacuum pump for stable running of the machine.

5.Make various products width as requirement.

6.Equipped with edge embossing unit to keep the plise together.

7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.

8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.

1. Specification of Facial Tissue Folding Machine:

Machine Model
SYM-190/6L (Other size to be specified)
Finished Products Unfolded Size
95x(120-210)x2mm
Folding Products Size
190x(120-210)x2mm
Raw Material Width
1260mm
Raw Material Diameter
1200mm
Raw Material Core Diameter
76.2mm
Output Capacity (8 hours)
2000-3000kg
Embossing Unit
Steel to rubber
Edge Embossing
Steel to steel edge embossing, independent pneumatic regulation
Slitting Unit
Pneumatic slitting
Main Servo Moter Power
5.5kw
Unwind Frequency Motor Power
1.5kw (2 units)
Vacuum System
18.5 kw Vacuum pump (Taiwan Roots blower)
Pneumatic System
3HP air compressor,Min. pressure 5kg/cm2PA (Provider by user themselves)
Driving System
Timing belt
Dimension
5870x2800x2207mm
Weight
About 5 tons
35 bags / Min Napkin Packing Machine 1
35 bags / Min Napkin Packing Machine 2
35 bags / Min Napkin Packing Machine 3
35 bags / Min Napkin Packing Machine 4

2. Specification of Single Channel Log Saw Cutting Machine:

35 bags / Min Napkin Packing Machine 5
Designation
Parameter values
The length of the none cut off facial tissue
minimum 500mm
The Height of tissue
30~130mm
Machine Speed
20~150cut/min
Operating speed
20~120cut/min
Round blade outer diamete
Φ610mm
Paper cutting circular knife top speed
980R/min
Finished products specification
70~300mm
Paper width
70~110mm
Cutting Length
70~300mm
Left-over Length
20~65mm
Power
11KW
Power supply
380V 50Hz
Air source
0.5~0.8MPa
Machine Size
4600*1700*2500mm
Weight of machine
2300~2600kg
Brake
Parameter setting (auto/manual)
Stepping sharpening knife
Parameter setting (auto)
Pneumatic sharpening knife
Parameter setting (auto/manual)
Blow air
without
The total pressure switch
Value (not)
Human-computer interface
DELTA
Frequency changer
DELTA
Servo Drive
DELTA

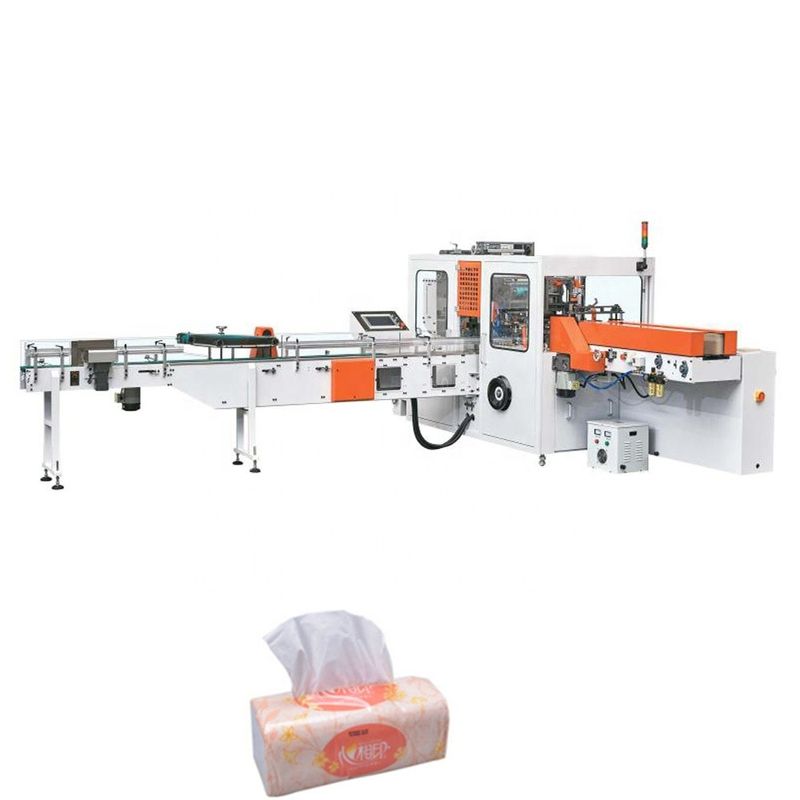

3. Specification of Facial Tissue Packing Machine:

1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.

Tissue sizes:
L: 150-400mm W: 150-200mm H: 35-150mm
Packing speed:
40-70 bags/min
Air supply:
0.5-0.8MPa
Machine weight:
3300kg
Outer dimensions (LxWxH):
5885x3560x1925(mm)
Heating power:
3.6kw
Motor power:
3.6kw
Packing size:
≤230x190x100(mm)
Working noise:
≤78dB
Packing film:
CPP
Power supply type:
380V, 50Hz
35 bags / Min Napkin Packing Machine 6
35 bags / Min Napkin Packing Machine 7

Final Products:

35 bags / Min Napkin Packing Machine 8

4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:

Packing Size
≤500x300x110mm (LxWxH)
≥220x120x90mm (LxWxH)
Packing Speed
10-20 bag/min
Gas Pressure
0.5mpa-0.8mpa
Voltage & Frequency
380V,50Hz,3Phase
Total Power
0.8kw
Weight
1000kg
Overall Dimension
4900x1650x1280mm
Tissue paper bag (one row/two rows)
Tissue paper bag (one row/two rows)
35 bags / Min Napkin Packing Machine 9

Final Products:

35 bags / Min Napkin Packing Machine 10
