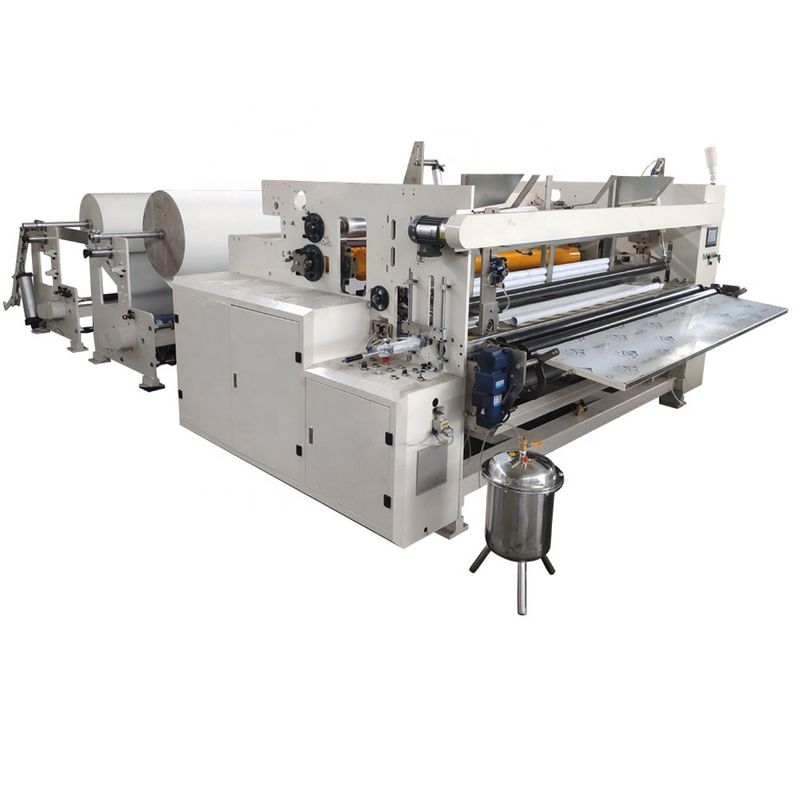

380V 50 HZ Toilet Paper Manufacturing Equipment

380V 50 HZ Toilet Paper Manufacturing Equipment
380V 50 HZ Toilet Paper Manufacturing Equipment 380V 50 HZ Toilet Paper Manufacturing Equipment 380V 50 HZ Toilet Paper Manufacturing Equipment

Large Image :  380V 50 HZ Toilet Paper Manufacturing Equipment

Product Details:

Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-JR-I

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 40 Days after Down Payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets/Month
Detailed Product Description
Application: Jumbo Roll Speed: 200m/min
Raw Parent Roll Width: 1400-3500mm Perferation: 4 PCS
Brake: Electric And Pneumatic Control Embossing: Steel To Rubber
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Paper Slitting Machine Processing Type: Paper Slitting Machine
High Light:

380V 50 HZ Toilet Paper Manufacturing Equipment

,

200m/min Toilet Paper Manufacturing Equipment

,

7.5KW toilet paper production equipment

Automatic Jumbo Roll Paper Slitting Machine , Toilet Roll Processing Slitter Machine



Description



Automatic Centre Pull Towel Slitting Rewinding and Perforating Machine is mainly used for rewinding the jumbo roll into two-layer or three-layer toilet paper.

This rewinding take advanced PLC computer programming technology, frequency control, electric brake and equip with touch screen man-machine interface operating system. System upgrades and realizes rewinding paper without core. Application of PLC computer programming technology can get effect of rewinding toilet paper without core and steel tube. It has function of automatic rewinding, automatic glue, trimming, put welled roll out and flatten. New design, perfect matching, let rewinding machine comprehensive upgrade to meet the demand of the markets; the technical application is faster and more convenient.





Specification



Machine model

1760

2200

2500

2800

3000

3200

3500

Width(mm)

2000

2200

2500

2800

3000

3200

3500

Finished products Diameter(mm)

Φ 90~150mm (other size can be ordered) Tightness can be adjustable

Finished products inner core diameter(mm)

Φ 32-50mm (Other sizes can be ordered)

Jumbo roll diameter(mm)

Φ 1200 (Other sizes can be ordered)

Jumbo roll inner diameter

3", 76.2mm(other size should be order)

Perforation distance (mm)

4 blades 90~160mm;adjustable

2 blades 180~320mm;adjustable

Production speed

200-220m/min

Parameter set

Touching multi-menu man-machine interface operating system

Programmable controller

Mitsubishi PLC program

Jumbo roll stand

1-3 plies (ply quantity can be ordered)

Air pneumatic system

3 Pa (air-compressor), the minimum pressure 5kg/cm² pa (customers should be prepared by themselves)

Power

7.5-25 KW(380V,60HZ)

Overall size(m) L*W*H (m)

10*(3-3.5)*2

Weight of machine

Approx. 4000-10000kgs

Chosen items(should be separately)

Embossment

Single embossment, double embossment, steel to steel embossment





Functions and Features



1. PLC (computer) control production, degree of full-automatic of production process is high, the function

of machine is complete, and production efficiency is high.

2. Load and change the core, spray glue, seal can be done without stop the machine. When changing the

core, the machine will low the speed and up the speed automatically.

3. When change the core to rewind, it will be tight first and then loose, to avoid the core loose.

4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically

stopped when there is no core pipes.

5. When raw material broken, the machine will stop automatically.

6. Each raw material unreel separately , equip with tension control.

7. Easy to adjust in order to suitable different paper core.

8. There is tail after the finished product sealed with glue , easy to use.

9. There is pneumatic jack to load the raw material on machine





Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

380V 50 HZ Toilet Paper Manufacturing Equipment 0



Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model
1092B
1575B
1760B
2150B
2200B
2500B
2800B
Jumbo Roll Max. width
1350mm
1750mm
1880mm
2000mm
2150mm
2400mm
2750mm
Max. Jumbo Roll diameter

2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings

Standardφ3"(76.2mm) (Other sizes specified)

Data setting

HMI
Programming controller

PLC, touch screen

Operate Speed

0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
φ90-140mm
Finished Log Inner dia.
φ38-76mm
Perforation Distance
100-150mm
Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 7.5-15KW 380V,50HZ

Embossing unit

Steel to rubber

Dimensions
6x3x1.7 (length x width x height);(m)

Weight
3T-4T(depends on the Model you have )

Options:

Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit

1-2 Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic

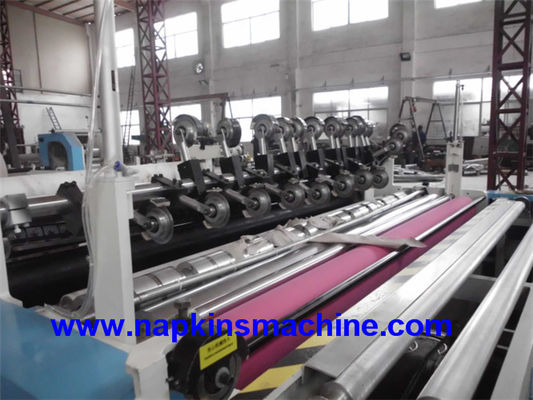

Machine Detail Pictures:

380V 50 HZ Toilet Paper Manufacturing Equipment 1
380V 50 HZ Toilet Paper Manufacturing Equipment 2
380V 50 HZ Toilet Paper Manufacturing Equipment 3

Deco Color Lamination Parts:

380V 50 HZ Toilet Paper Manufacturing Equipment 4
380V 50 HZ Toilet Paper Manufacturing Equipment 5
380V 50 HZ Toilet Paper Manufacturing Equipment 6

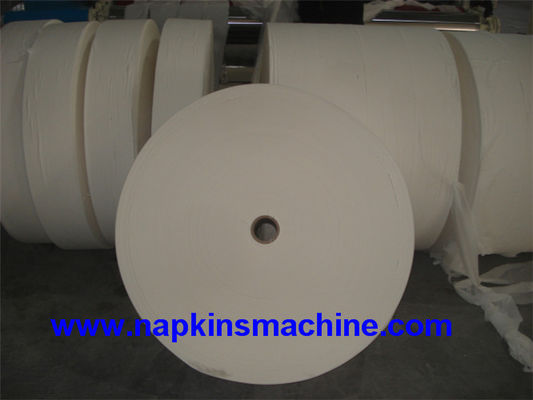

Finished Products:

380V 50 HZ Toilet Paper Manufacturing Equipment 7
380V 50 HZ Toilet Paper Manufacturing Equipment 8
380V 50 HZ Toilet Paper Manufacturing Equipment 9
