Place of Origin: | Dongguan, Guangdong, CHINA |
Brand Name: | YU SHENG DA |
Certification: | CE |
Model Number: | YD-NP-II |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden packing |
Delivery Time: | 45 days after down payment |
Supply Ability: | 2 sets per month |
Speed: | 3000 Sheets / Min | Embossing: | Steel To Paper Or Steel To Steel |
---|---|---|---|
Important Parts Bearing: | NSK | Thickness Of Back Stand: | 20mm |
Folding: | Four Fold And Eight Fold And Two Fold | Motor: | Siemens |
Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 3200*1000*1800mm |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
Warranty: | One Year | Power(w): | 5.5KW |
Product Type: | Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Napkin Making Machine | Processing Type: | Paper Folding Machine, Pulp Molding Machine, Embossing Machine, Paper Making Machine, Napkin Making Machine |
High Light: | 1/8 Fold Dispenser Napkin Printer Machine,1/8 Fold Dispenser Napkin Printer Machine,380V 50HZ Tissue Paper Production Machine |
380V 50HZ 1 / 8 Fold Dispenser Napkin Printer Machine
Description

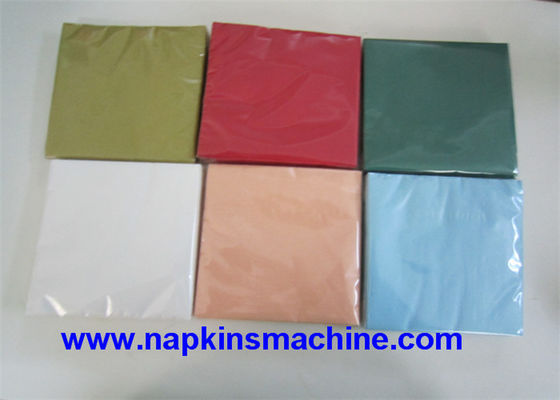

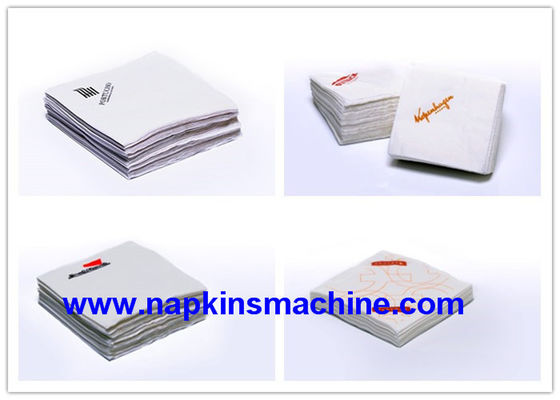

380V 50HZ 1 / 8 Fold Dispenser Napkin Printer Machine is for the production of square or rectangular napkin paper. The parent jumbo rolls which have been slit into the desired width are embossed,automatically folded into finished products of napkins . The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size.
Specification
Open size of finished product |
200*200-430*430mm (to be specified) |
Diameter of Raw Paper Roll |
1100mm(other size to be specified) |
Inner Diameter of Paper core |
76.2mm(3 inch) (other size to be specified) |
Capacity |
3000pieces/min |
Counting Device |
Electronic Counting |
Embossing Roller |
Woolen Roller |
Power |
Frequency Conversion Speed Regulator |
Calendaring |
Steel to steel or steel to rubber |
Embossing unit |
Felted roller, woolen roller, Rubber roller |
Color Printing |
1-2 color |
Dry Device |
Hot Wind Heating System |
Spare Parts List
NO |
ITEM |
QUA |
1 |
Plastic male knife |
4 |
2 |
Band Saw |
2 |
3 |
Tool Box |
1 |
4 |
Grinding Stone |
4 |
