380V 50Hz 3PH Single Toilet Roll Making Machine

Single Roll Toilet Paper Roll Making Machine Production Line 380V 50Hz , 3 PH





Description

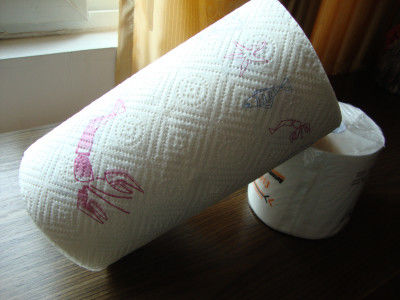

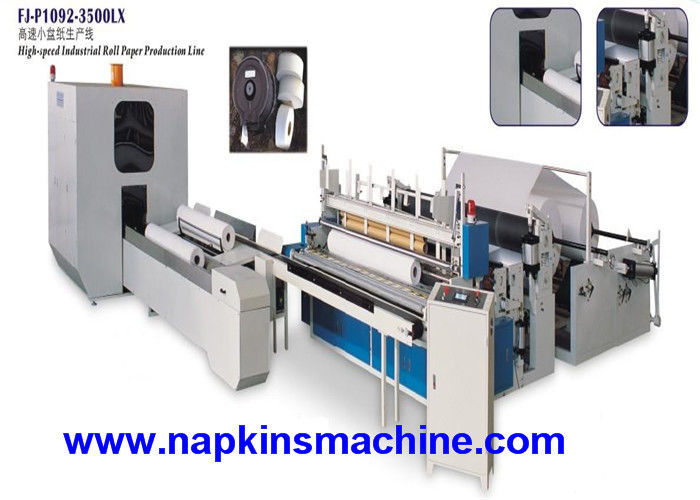

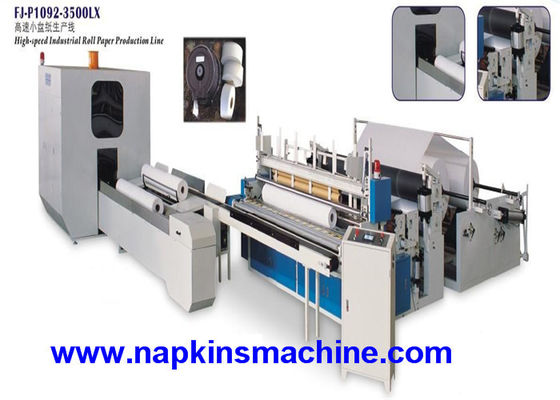

Single Roll Toilet Tissue Paper Roll Making Machine Production Line consists of one set of  Rewinding and Perforating Toilet Paper Machine(or can equip with high-speed rewinding and perforated toilet paper and towel paper machine)(it can be 2 or 3 sets according to requirement), 1 set of  Automatic Log Saw Machine ,and 1 set of Automatic Toilet Paper Packing Machine for Multiple Rolls and convey belts.



Parameter





First Part



Rewinder Machine



Main Technical Parameter
Electric source	380V, 50Hz, 3 PH
Finished Roll Diameter	90-150mm
Finished Roll Core Diameter	Φ 48 mm
Raw Material Diameter	≤Φ 1100 mm (Other sizes can be customized)
Raw Material Core Diameter	3”(76.2 mm) (Other sizes are available )
Width Of Raw Material	1750mm, only for producing kitchen paper roll
GSM of raw paper	19-25g
Perforating Pitch	105~160mm
Speed	120-150 meters/min
Parameter Setting	Touch button LCD Screen operation panel
Program Controller	Programmable Controller (PLC)
Mechanism Driving	synchronous belt drive
Embossing Roller	Polyurethane embossing roller
Embossing type	Point to point
Color unit	Without color printing
Lamination unit	With lamination
accumulator	One set
	40 pieces shelves which can be store 20 pieces of finished roll
Unwinding Paper Stand	2
Power	Variable frequency speed control, 32KW
Machine Size	9500×3100×2200mm(L×W×H)
Weight	12000kg



Second Part



 Paper storage rack



toilet roll length	1800mm( Other specifications need to custom-made )
toilet roll diameter	Φ95mm~Φ140mm
Store paper quantity	150~160 rolls
Store speed	25 rolls/min
Store paper quantity	Optional 40 to 400 paper roll (Specifications need to be custom-made)
Machine size	4000*3000*5500mm (Specifications according to the actual size)
PLC	PLC(Delta)



Third Part



Log Saw machine





Length of toilet roll	1750mm ( Other specifications need to custom-made )
toilet roll diameter	Φ105~φ115mm ( Other specifications need to custom-made )
design speed	120 cut /min
stable speed	100 cut /min
Sharpen system	Pneumatic, grinding time interval is adjustable
Driving system	Delta servo motors
power	11KW
machine size	6500*2500*2000mm ( Other specifications according to the actual size )
blade size	φ610*4.7(mm)
voltage	380V 50HZ
machine weight	4.5T



Fourth Part



Rolls/pack packing machine



power	220V  50HZ
The main circuit power	0.74KW
The sealing seal cutting power transformer	0.45KW
total power	1.19KW
air pressure	0.4---0.5MPA





Feature



1 the machine with Automatic core loading and replacing. The logs are automatically pushed out after

finishing winding, and then start winding again. The cores can be adjusted to any size of cores within

one minute.After finished winding the roller pushed out automatically. It’s adopt machanism arm pusher

to push the roller out. The minimum diameter of finished roll is 60mm.

2 Automatic trimming, gluing and sealing: it has replaced the traditional sealing of rolls with the

international popular trimming and sealing, which can have 10~18mm tails to facilitate to start pulling out

the paper. At the same time,

it can greatly cut down the wastage of the paper, thus to cut down the production cost.

3 Advanced PLC programmable control technology: the winding profiles can be tight at the beginning

of winding, and then getting loose, to avoid the problems that the cores are loose from the rolls after

long time storage.

4 Automatic detection of paper break and paper wrap up: to guarantee the high quality of the finished

rolls evenin the high speed operation.

5 Coreless rewinding system has changed the traditional mathod to take out the core to make with quality

solid coreless roller. Reducing the manpower.With high precision screwy perforation knife.

6 With 4 perforation blades to make clear perforating. The perforating pitch controlled by

gear box. Three backstands, pneumatic jumbo roll loading, and pneumatically wide belt paper unwinding

driving, and individual web tension control unit for each jumbo roll.

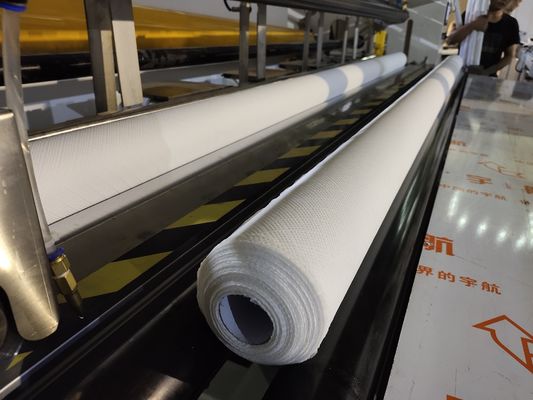

7 point to point embossing unit: the paper are embossed on both sides and feel softer. It make

embossing more clearer

and better. The finished rolls compared to the same diameter rolls with less paper.The web can be

threaded on the machine by the two jog buttons. It’s more safety and easier to feed the web.
