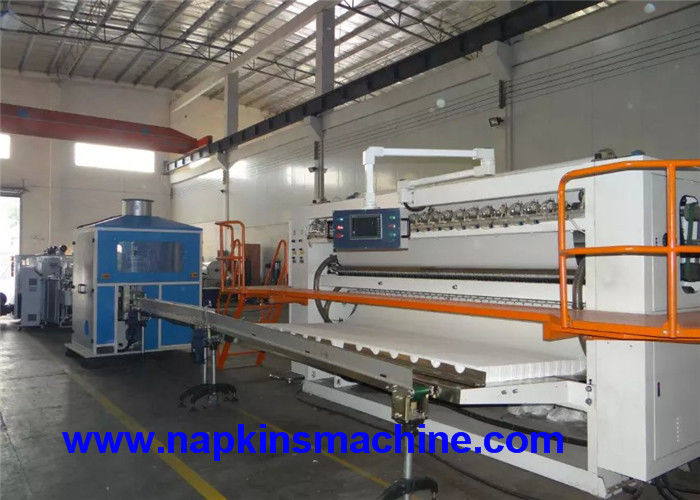

380V Box Drawing Jumbo Roll Facial Tissue Making Machine

380V Box Drawing Jumbo Roll Facial Tissue Making Machine

380V Box Drawing Jumbo Roll Facial Tissue Making Machine
video
380V Box Drawing Jumbo Roll Facial Tissue Making Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-FTM-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden packing
Delivery Time: 40 Days after down payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets Per Month
Contact Now
Detailed Product Description
Bearing: Made In Japan Speed: 4800 Sheets/min
Motor: Siemens Touch Screen: Siemens
Structure: Wall Board PLC: Delta
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Facial Tissue Making Machine Processing Type: Facial Tissue Making Machine
High Light:

380V Box Drawing Facial Tissue Making Machine

,

Jumbo Roll Facial Tissue Making Machine

,

380V Box Drawing tissue paper maker machine

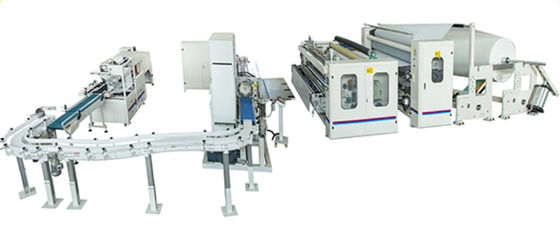

Full Auto Box Drawing Facial Tissue Production Line With Paper Cutting Machine




Description

Siemens Brand PLC  Facial Tissue Machine Complete Production Line is composed of one set   full-automatic box-drawing facial tissue machine, one set   Facial tissue cutting machine, one set  Full-automatic cardboard sealing machine and convey belt.

It gather embossment, folding, counting ,match with high-speed paper cutting machine, convey, automatic boxed and automatic sealing box in one body. This equipment adopt PLC, frequency control and equip with touch type multi-picture man and computer interface operation system. Adopt synchronization belt driving, speed-change machine driving for complete machine, which make the machine can suitable for various kind of raw material’s requirement , and improve the quality and efficiency.


Specification



 facial tissue folding machine



 Finished products size

(17-220)×210mm (width is adjustable) (other sizes can be designated )

 Jumbo roll size (mm)

Maximum width 420-2100mm  12~18g/m2×2(ply)     Jumbo roll diameter ≤1200mm

Jumbo roll core inner diameter

76.2mm(Other sizes can be designated)

 machine speed

800-1000draws/min (set as per how many lines)

 Embossment unit

Steel to rubber roller, steel to steel embossment, steel to felt roller, steel to paper roller.

Embossment down roller

 Felt roller, paper roller, rubber roller, steel roller

 Side rolling embossment

 Steel to steel, independent adjustment

 Slitting system

Pneumatic mode point-cutting

Vacuum system

7.5-30KW

Pneumatic system

3Pa air-compressor, minimum pressure 5kg/cm2 Pa (customer should prepare by themselves)

 Machine power

10-40kw, (380V, 50Hz)

 Overall size

L×W×H =7× (1.2~2.8) ×1.8m

 Weight of machine

2~4T

Chosen items ( should be ordered separately)

 Embossment unit

 steel to rubber roller, steel to steel roller, steel to felt roller, steel to paper roller;

 Embossment down roller

 Felt roller, paper roller, rubber roller, steel roller

 Slitting system

 Pneumatic point-cutting,  full cutting

Side rolling embossment

 Steel to steel, independent adjustment



 facial tissue log saw cutting machine



Model

CS-DH150A

Cutting dimension L×W×H

L=90-250,W=60-150,H=60-150

Max feeding reel length

1800mm

Driving system

Servo motor drive feeding belt

Cutting system

Rotating circular knife movement and continuous tissue forward

movement

Designing speed

150 cuts/min, two stacks per cut

Production speed

0-120 cuts/min, two stacks per cut ( length = 100mm)

Grinding

Pneumatic grinding, parameter can be set on the control panel

Grinding feeding

Automatic feeding grinding for circular knife

Knife holding arm height adjustment

Manually

Dust remove system

Suction ventilator for dust and hear removal of the two sides grinding

wheel

Cooling system

steady compressed air blowing for cooling

Cutting length adjustment

On control panel, tolerance ±1mm

Cutting Vertical Tolerance

±1mm Vertical Tolerance

Power

12.5W

Mini air pressure requirement

6Mpa

Gas consumption

500L/shift

Driving

protective cover for the main driving unit

Protection

Individual motor drive, servo motor, timing belt, flat belt



 facial tissue plastic film packaging machine



Model

RB-60

Packing specifications length (mm)

100-230

Width (mm)

100-150

Height (mm)

30-100

Packing speed (envelope/min)

25-60 pack/min

Total power (kw)

6.83

Total weight (kg)

3440

Outline dimensions (L×W×H)(mm)

3885*3200*1900

Heating power (kw)

3.35

Motor power (kw)

3.48

Max. packing dimensions (mm)

200*120*100

Noise

78DB

Packing materials

Double-sided heat sealing membrane such as CPP, PE, OPP/CPP,

PT/PE, KOP/CP, etc.

Power supply

380V 50HZ





Main Specification


Face Tissue Paper Production Flow Chart : unrewinding jumbo roll --embossing unit ---folding unit ----slitting (cutting) ---counting ---output.





1. Jumbo roll stands: 2 : Wallboard type strcutuer, 20mm thickness steel plate



2. Mian machine structure: Wallboard type strcutuer, 50mm thickness steel plate



3. Equipped with pneumatic type wide belt to convey paper,each jumbo roll has independent tension adjustor and left-right adjusting device.



4. Pneumatic lifting jumbo roll unit to reduce the labor strength.



5. Auto stop when paper breaks to decrease the waste of paper



6. Cutting width is adjustable from 100-210mm freely.



5. Optional Units: embossing unit and edge embossing unit.



8. Roots vacuum bump absorbing system with strong suction,negative pressure is stable.



9. adopts advanced Siemens PLC computor program control, Siemens frequency invertor to adjust speed ,



10. auto counting and arrange piles,with touching screen Parameter Settings



11. Embossing unit: Steel to Steel





Electrical Parts and other Parts brand




NO

Name

Brand

Original Place

1

Motor

Siemens

China

2

Pneumatic Parts

Omron

Germany

3

Vacuum Pump

Longtech

Taiwai

3

Frequency converter

Delta

Taiwai





Product Description

High Quality Facial Tissue Machine Paper Product Making Machinery

380V Box Drawing Jumbo Roll Facial Tissue Making Machine 0



Features:

Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.

1.Can order steel to rubber embossing rolls,pneumatically separated.

2.Wallboard rack and Machine running stability and extremely good and fast.

3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.

4.Equipped with roots type vacuum pump for stable running of the machine.

5.Make various products width as requirement.

6.Equipped with edge embossing unit to keep the plise together.

7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.

8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.

1. Specification of Facial Tissue Folding Machine:

Machine Model
SYM-190/6L (Other size to be specified)
Finished Products Unfolded Size
95x(120-210)x2mm
Folding Products Size
190x(120-210)x2mm
Raw Material Width
1260mm
Raw Material Diameter
1200mm
Raw Material Core Diameter
76.2mm
Output Capacity (8 hours)
2000-3000kg
Embossing Unit
Steel to rubber
Edge Embossing
Steel to steel edge embossing, independent pneumatic regulation
Slitting Unit
Pneumatic slitting
Main Servo Moter Power
5.5kw
Unwind Frequency Motor Power
1.5kw (2 units)
Vacuum System
18.5 kw Vacuum pump (Taiwan Roots blower)
Pneumatic System
3HP air compressor,Min. pressure 5kg/cm2PA (Provider by user themselves)
Driving System
Timing belt
Dimension
5870x2800x2207mm
Weight
About 5 tons

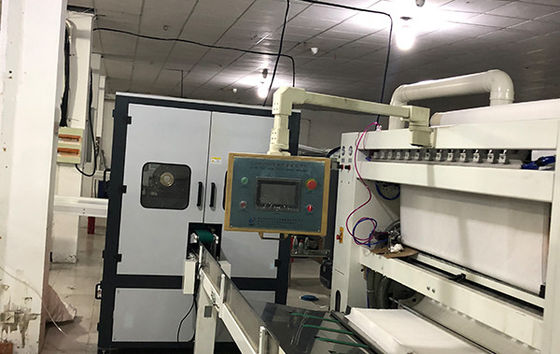

380V Box Drawing Jumbo Roll Facial Tissue Making Machine 1
380V Box Drawing Jumbo Roll Facial Tissue Making Machine 2
380V Box Drawing Jumbo Roll Facial Tissue Making Machine 3
380V Box Drawing Jumbo Roll Facial Tissue Making Machine 4

2. Specification of Single Channel Log Saw Cutting Machine:

380V Box Drawing Jumbo Roll Facial Tissue Making Machine 5
Designation
Parameter values
The length of the none cut off facial tissue
minimum 500mm
The Height of tissue
30~130mm
Machine Speed
20~150cut/min
Operating speed
20~120cut/min
Round blade outer diamete
Φ610mm
Paper cutting circular knife top speed
980R/min
Finished products specification
70~300mm
Paper width
70~110mm
Cutting Length
70~300mm
Left-over Length
20~65mm
Power
11KW
Power supply
380V 50Hz
Air source
0.5~0.8MPa
Machine Size
4600*1700*2500mm
Weight of machine
2300~2600kg
Brake
Parameter setting (auto/manual)
Stepping sharpening knife
Parameter setting (auto)
Pneumatic sharpening knife
Parameter setting (auto/manual)
Blow air
without
The total pressure switch
Value (not)
Human-computer interface
DELTA
Frequency changer
DELTA
Servo Drive
DELTA

3. Specification of Facial Tissue Packing Machine:

1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.

Tissue sizes:
L: 150-400mm W: 150-200mm H: 35-150mm
Packing speed:
40-70 bags/min
Air supply:
0.5-0.8MPa
Machine weight:
3300kg
Outer dimensions (LxWxH):
5885x3560x1925(mm)
Heating power:
3.6kw
Motor power:
3.6kw
Packing size:
≤230x190x100(mm)
Working noise:
≤78dB
Packing film:
CPP
Power supply type:
380V, 50Hz
380V Box Drawing Jumbo Roll Facial Tissue Making Machine 6
380V Box Drawing Jumbo Roll Facial Tissue Making Machine 7

Final Products:

380V Box Drawing Jumbo Roll Facial Tissue Making Machine 8

4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:

Packing Size
≤500x300x110mm (LxWxH)
≥220x120x90mm (LxWxH)
Packing Speed
10-20 bag/min
Gas Pressure
0.5mpa-0.8mpa
Voltage & Frequency
380V,50Hz,3Phase
Total Power
0.8kw
Weight
1000kg
Overall Dimension
4900x1650x1280mm
Tissue paper bag (one row/two rows)
Tissue paper bag (one row/two rows)
380V Box Drawing Jumbo Roll Facial Tissue Making Machine 9
