| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-NK-I |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 40 DAYS AFTER DOWN PAYMENT |
| Payment Terms: | T/T |
| Packaging Material: | CPP, PE And So On | Dimension: | 3560*5885*1925mm |
|---|---|---|---|
| Weight: | 2000kgs | Speed: | 40-70bags Per Min |
| Motor: | Simens | Automatic: | Full Automatic |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Type: | Multi-Function Packaging Machine, Other, Packaging Line |
| Function: | Sealing, Wrapping, Filling, Gluing | Packaging Material: | Plastic, CPP, PE |
| Automatic Grade: | Automatic | Driven Type: | Electrical |
| Packaging Type: | BAGS, FILMS | Power(w): | 7.5KW |
| Product Type: | Napkin Packing Machine | Processing Type: | Napkin Packing Machine |
| High Light: | 380V tissue paper cutting and packing machine,CPP paper napkin packing machine,380V paper napkin packing machine |
||

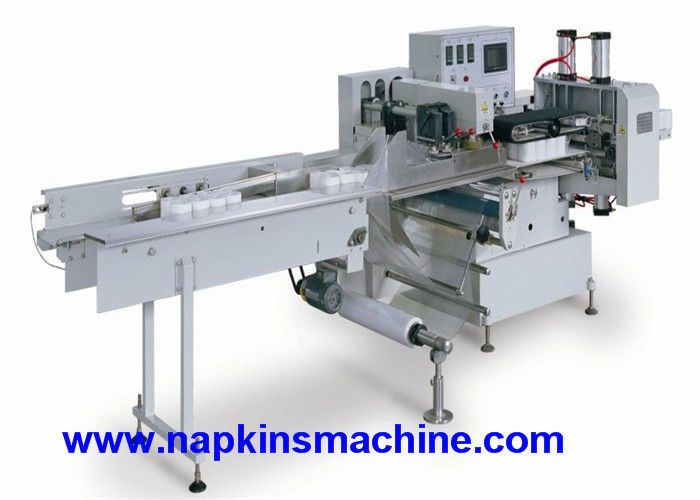

High Efficiency Napkin Packing Machine For Paper Box And Plastic Bag
High Capacity Napkin Packing Machine Full Automatic For Plastic Film Packing is used to pack the napkin paper in Plastic bag as the picture shown above automatically with high speed.
Main features
1. Adopt packing ways of wrapping, hemming and sealing with compact structure suitable for packing regular square objects such as paper towel and paper box with relatively low tightness. Adopt frequency inverter infinite variable speed control system, touch panel and PLC and clearer Human-machine interface with easier maintenance.
2. Adopt automatic ordering and conveying tail stock easy to be connected with automatic production line and significantly labor empty envelope, which is high automation, high professional, high efficiency and low troubles.
3. Broad packing scope and rapid change among different sizes.
4. Applicable Scope:
Applicable for the outer package of regular square objects such as soft drawing paper towel, napkin, general rectangular paper towel, paper box, etc.
Parameters
|
Packing Specification |
L/140-220MM, W/100-150MM, H/45-100MM |
|
Packing Speed |
25-60Bags/min |
|
Total Weight |
3000kgs |
|
Outside Dimension |
3885×3200×1900mm |
|
Heating Power |
3.35KW |
|
Drive Power |
3.48KW |
|
Total Power |
6.83KW |
|
Packing Materials |
double-sided heat sealing membrane such as CPP,PE,PE/CPP |
