380V Full Cover PLC Control Facial Tissue Packing Machine

380V Full Cover PLC Control Facial Tissue Packing Machine

380V Full Cover PLC Control Facial Tissue Packing Machine
380V Full Cover PLC Control Facial Tissue Packing Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YSD-FP-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 50 Days after down payment
Payment Terms: L/C, T/T
Supply Ability: 5 Sets Per Month
Contact Now
Detailed Product Description
Application: Carton Box Packing Facial Tissue Speed: 25-60 Carton Per Min
Packing Material: CPP And So On Plastic Film PLC: SIEMENS
Motor: SIEMENS Voltage: 380v
Dimension(l*w*h): 6200*2200*2200mm After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation
Condition: NEW Warranty: One Year
Type: Multi-Function Packaging Machine, Other, Packaging Line Function: Sealing, Wrapping, Filling, Gluing
Automatic Grade: Automatic Product Type: Box Packing Machine
Processing Type: Box Packing Machine
High Light:

380V Full Cover Facial Tissue Packing Machine


PLC Control Facial Tissue Packing Machine


380V Full Cover tissue packaging machine

Tissue Boxer , Facial Tissue Packing Machine With Glue System , High Output



It is suitable for automatic boxing of napkins, sanitary towels, pads, wet tissues,etc. Our machine has passed CE certification. It has been used by many domestic and international enterprises in such industries as APP,Fine, Nepia, Vinda, Deli, TRUECOLOR, BEIFA, brother, GLAD, etc. Also we can provide personalization design to meet the requirements of different customers. Meanwhile, we can provide resources and technical support to help the customer to build their ideal factory.


Machine Feature

1,High output. The stable speed can reach 80 boxes/minute.

2,Complete functions. The machine is suitable for various applications such as semi-cover/full-cover, or high paper and low box/low paper and high box.

3,Rapid production changing. It only takes 10-20 minutes to change the specifications.

4,Convenient operation. It is easy to control the servo paper feeding and PLC control system.

5,Low cost. The imported glue machine with a nozzle of 0.3mm is adopted and the glue-spread is little.


Application range:

It is suitable for automatic boxing of facial tissues, square tissues, pocket tissues,cotton tissues etc.


Main performances and structure features:

  1. Packing forms such as automatic feeding, box opening, boxing, batch No. printing, glue spreading, box sealing, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
  2. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
  3. The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.
  4. The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.
  5. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
  6. Change of specifications does not need change of molds, but can be realized through adjustment.
  7. Automatic stopping is available when the material boxing is not in place, and the main driving motor overload protection device is used, so that the machine is safer and more reliable.
  8. According to customer requirements, the upturning type safety protective cover is adopted, which is featured by simple operation and beautiful appearance.


Main technical parameters

Items Technical parameters
Packing dimension (mm) Max:L240mm×W120mm×H100mm
Packing dimension (mm) Min:L110mm×W110mm×H30mm
Paper requirement 300-400G/M3
packing speed(bags/min) 85pcs/min
Glue machine power supply(KW) 2.32
Packing machine power supply(KW) 2.74
Totally power supply(KW) 5.1
Electric type 3phase 4wire
Machine noise(DB) ≦80
Weight (KG) 3500
Outline dimension (mm) 3513×3023×1650
Air supply(MPA) 0.5-0.8


Machine Configuration

PLC Panasonic
Touch screen Omron
Frequency converter 1.5KW Panasonic
Frequency converter 0.4KW Panasonic
Servo 0.75KW Delta
Servo 0.75KW Delta
Encode 600 wire Autonics
Lower pressure Schneider





Carton Box Facial Tissue

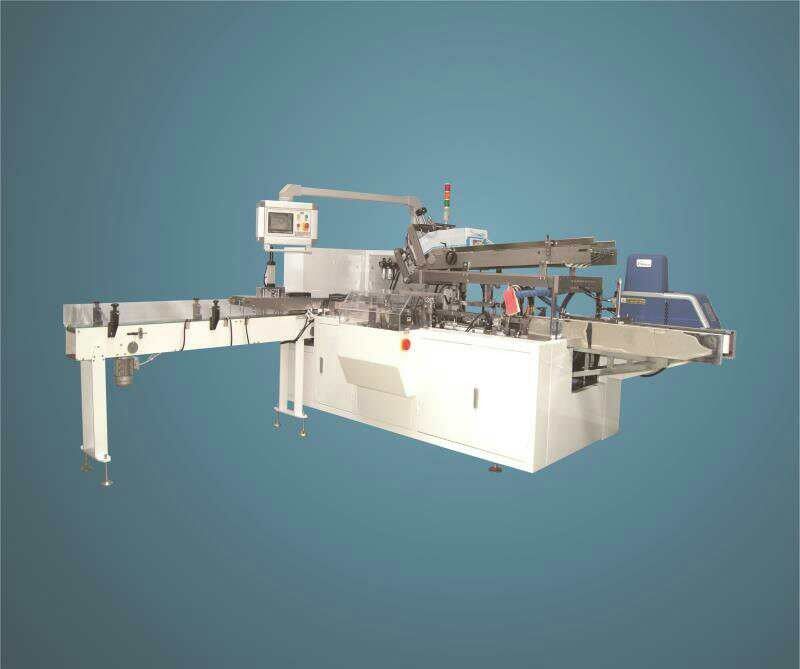

380V Full Cover PLC Control Facial Tissue Packing Machine 0

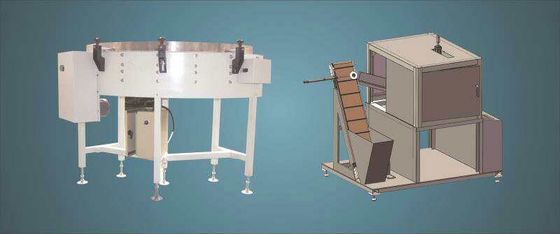

380V Full Cover PLC Control Facial Tissue Packing Machine 1

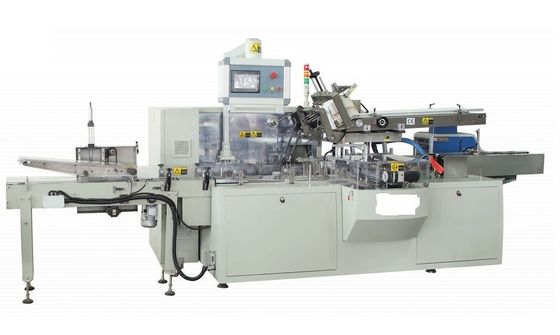

380V Full Cover PLC Control Facial Tissue Packing Machine 2
