380V N Fold 7.5KW Laminated Towel Folding Machine

Product Details:

Place of Origin:	China
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-PT-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Packing
Delivery Time:	50 work days after down payment
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Fold Type:	N Fold	Speed:	1000 Sheets Per Min
Embossing:	Steel To Steel	Frequency Converter:	Delta
Pneumatic Parts:	AIRTAC	Photoelectrical Switch (magic Eye):	Omron
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620020001800mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Power(w):	7.5KW
Product Type:	Paper Towel Machine	Processing Type:	Paper Towel Machine
High Light:	380V N Fold Towel Folding Machine , 7.5KW Laminated Towel Folding Machine , 7.5KW Laminated automatic towel folder

N Fold Tissue Paper Towel Making Machine , Laminated Hand Towel Folding Machine

Specification for N FOLD Paper Towel Machine_20210...

Description

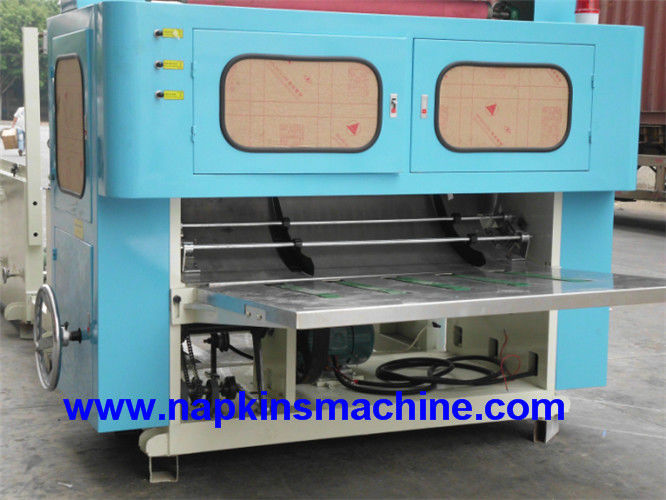

N Fold Tissue Paper Towel Making Machine , Laminated Hand Towel Folding Machine is used to make N Fold Hand Towel with embossing and cutting off the towel paper .

1. It is designed to produce laminated hand towel with high speed, nice folding and easy operation. It will

count the paper automatically and output in order.

2. And adopting screw turning knife to cut and vacuum absorption to fold and frequency invertor to adjust

speed to roll and fix different tension of raw paper, adopts advanced PLC computer program control, with

human-machine interface data input. It has wide range of production width for selection.

Specification:

Model	N-2L/3L/4L/5L/6L
Finished Products Size	230L*230±2MM
Raw Material Width	480mm	690mm	990mm	1150mm
Raw Material Core Diameter	76.2mm
Speed	0-100m/min (depending on the machine model)
Power	Frequency conversion speed regulator
Programmable controller	PLC computer controller
Folding Type	Vacuum suction N fold
Transmission unit	Timing Belt
Counter	Ink Marked
Embossing Unit	Steel to steel
Slitting Unit	Pneumatic dot slitting
Pneumatic System	3HP Air Compressoor, mini air pressure 5kg/cm2pm (Provider by customer)
Total Power	11kw	15kw	15kw	22kw
Dimension	4000(1700-2500) 1900mm ,Depend on the size and configure
weight	2-5 tons, Depend on the size and configure
