40 Bags / Min Paper Towel Making Machine

Product Details:

Place of Origin:	China
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-PT-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Packing
Delivery Time:	50 work days after down payment
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Fold Type:	Single Fold	Speed:	1000 Sheets Per Min
Embossing:	Steel To Steel	Frequency Converter:	Delta
Pneumatic Parts:	AIRTAC	Photoelectrical Switch (magic Eye):	Omron
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Type:	Multi-Function Packaging Machine, Other, Packaging Line
Function:	Sealing, Wrapping, Filling, Gluing	Packaging Material:	Plastic, CPP, PE
Automatic Grade:	Automatic	Driven Type:	Electrical
Packaging Type:	BAGS, FILMS	Power(w):	7.5KW
Product Type:	Paper Towel Packing Machine	Processing Type:	Paper Towel Packing Machine
Highlight:	40 Bags/Min Paper Towel Making Machine , 40 Bags/Min tissue paper maker , 300mm length tissue paper maker

Full Automatic Plastic Bag Paper Towel Packing Machine

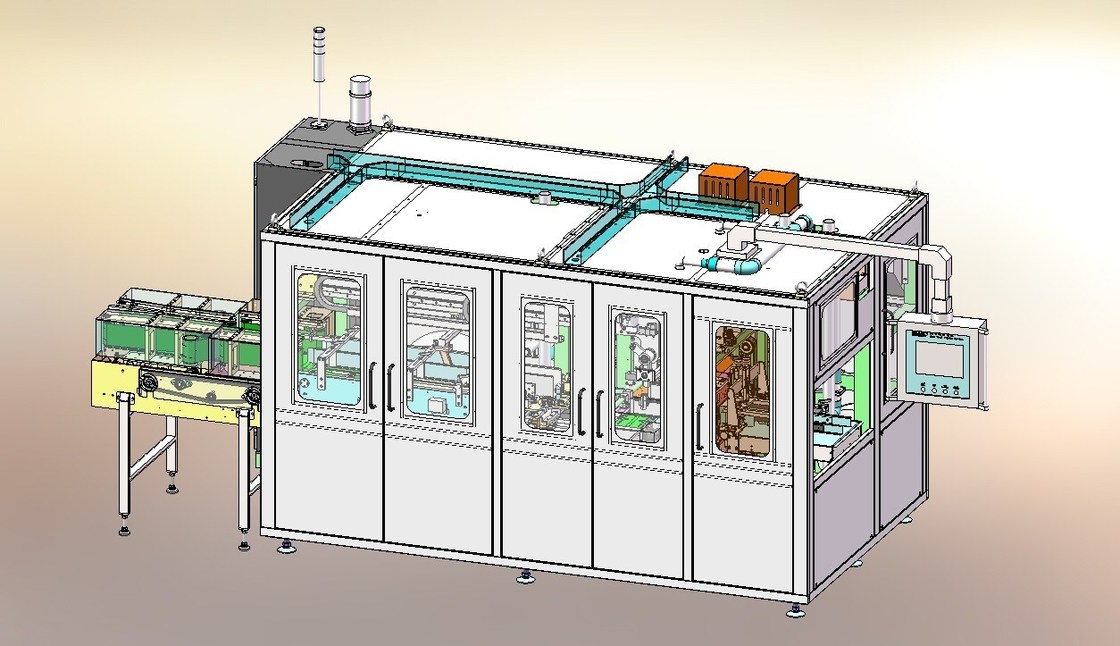

Main Features and Advantages

Capable of wrapping M-Fold hand paper towel tissues. Stable capacity of up to 25 bags per minute. Main features and advantages as shown below:

COMPONENT	FUNCTION	CONFIGURATIONS	REMARK
Infeed	Sorting Device	Servo driven	Servo driven dual stages time belt infeed. Photo cell auto control infeed position. With overflow jam protection and pusher paper jam alarm function
Infeed	Conveyor Device	Servo driven	Infeed conveying by flight bars driven by servo. Smart infeed ensure good timing of the bars matching the paper speed.
Main Pusher Component	Pushing Device	Dual pusher moved by servo motor, aided by vertically reciprocal movement of the cylinders for up and down swing	Dual pusher moved by servo motor, speed controlled by intelligent multi-arcs, with pusher overload protection and sealing limit protection function
Main Pusher Component	Forming Mould	GOORUI blower	Adopting negative pressure forming. Each product has its own specific mold, seal ends neatly aligned
Bag forward transmission and forming	Bag opening device	Servo driven	Bag opening with up and down motion suckers driven by servo, speed and position adjustable.
	Forward infeed and bag distracting claw	Forward infeed driven by servo. Claws distracting left and right sides of the bag are driven by air cylinder	Forward infeed driven by servo. Speed and postion adjustable. Claws distracting left and right sides of the bag are driven by air cylinder
	Clamping device	clamp driven by left and right air cylinder	Paper clamping driven by left and right air cylinder, reshaping the paper before bagging
Tube Film	Tube film loading device	air expansion shafts,inverter motor	Roll tube film loaded on air shaft, and film released by inverter motor.
	Tube film accumulating device	Floating roll, guider	film tension controlled by floating roll, and film leveling controlled by guider
	Tube film bag making device	Bag drawing by servo,color mark photo cell,cylinder cutter	Bag drawing by servo,cutting position controlled by color mark photo cell, cutting made by cylinder vertically reciprocation motion.
Bag Transmission	Bag Conveying Device	Servo driven	Transmitted by belt driven by servo motor, speed and position adjustable. Defect bag auto removal function.
Sealing Device	Seal jaw motion	Servo driven	Sealing jaw up and down motion are driven by servo motor. With film anti-lock function, auto alarm or stop when torque limiter overload
	Seal heating plate	Nuopai Intelligent temperature Controlling Module	Germany Nuopai intelligent temperature controlling module is adopted, constant temperature heating and instant temperature heating devices optional, conveniently adjusted
	Trim cutting	Cylinder cutter	The trim are cut by linear motion cylinder embedding blade
Negative Pressure System	Negative Pressure System	GOORUI blower, cylinder valve	GOORUI blower is used for bag opening, bag conveying, molding and negative pressure suction for the trims. The angle and sequence of each motion are controlled by using cylinder valve.

Machine Performance and Parameters

ITEMS	DESCRIPTIONS
Scope of application	Single soft pack N Fold hand towels
Infeed	ASF Automatic Smart Feeding
Design Speed	30 packs/min
Stable Operation Speed	25 packs/min

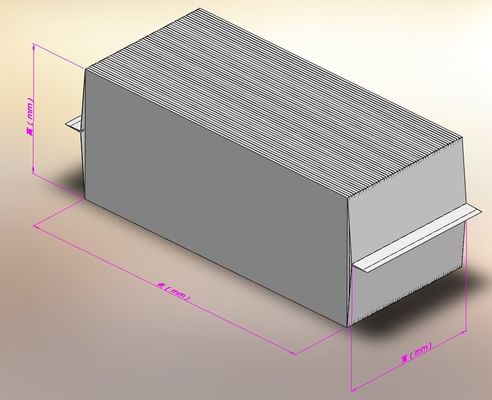

Product Dimension	Length: 200mm-300mm Width: 110mm-250mm Height: 60mm-115mm
Packing Film	Roll Prebag film
Max Film Dia.	≥600mm
Machine Size	4120mm x 2030 mm x 1930 mm (LxWxH)
Machine Weight	2600 KG
Prebag Film	CPP,PE
Compression Air	Air Pressure ≥ 0.6 MPA/ Air consumption≥ 30 L/min
Power Supply Voltage	380V/50HZ
Motor Total Power	14.8 KW
Heating Power	1.2 KW
Variation range of adaptive voltage	+/-10%
I/O Input (VDC)	24VDC
I/O Output(VDC)	24VDC
Device Color and Surface Finishing	Dark Grey,Static Spraying & Baking Painting
Gusset Fold	By vacuum mould

N Folding Hand Towel Paper Making Machine process paper material to embossing,cut off and interfold into "N" type. It can be continuous drawing one by one when using.The final products are widely used in hotels, office and kitchen,etc. for hands cleaning. Health and convenient.This machine can apply to folding, slitting, counting together with high speed and output orderliness.

Production Speed:(60-100) m/min x3

Steel to steel embossing unit

Pneumatic broken paper and automatic separation, Convenient to wear paper.

Using synchronous belt transmission with lower noise. The transmission ratio is accurate.

Base Paper adopt range:33-45g/m2 (single ply).

Two layers with glue lamination can be ordered by customers.

Specification:

Model	N-2L/3L/4L/5L/6L
Finished Products Size	230L*230±2MM
Raw Material Width	480mm	690mm	990mm	1150mm
Raw Material Core Diameter	76.2mm
Speed	0-100m/min (depending on the machine model)
Power	Frequency conversion speed regulator
Programmable controller	PLC computer controller
Folding Type	Vacuum suction N fold
Transmission unit	Timing Belt
Counter	Ink Marked
Embossing Unit	Steel to steel
Slitting Unit	Pneumatic dot slitting
Pneumatic System	3HP Air Compressoor, mini air pressure 5kg/cm2pm (Provider by customer)
Total Power	11kw	15kw	15kw	22kw
Dimension	4000(1700-2500) 1900mm ,Depend on the size and configure
weight	2-5 tons, Depend on the size and configure
