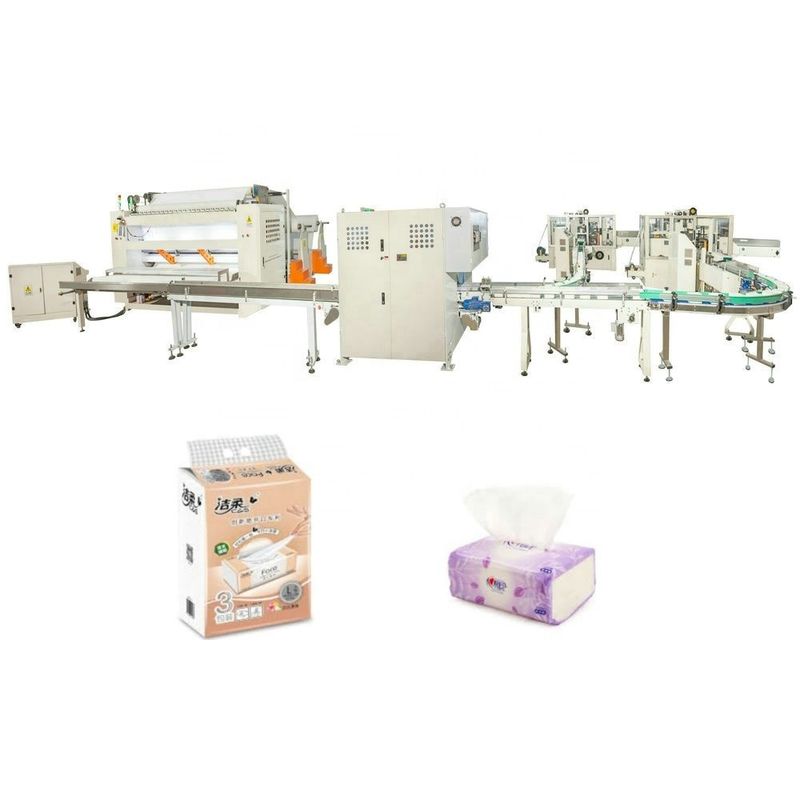

4800 Sheets / Min PLC Controller Facial Tissue Making Machine

4800 Sheets / Min PLC Controller Facial Tissue Making Machine

4800 Sheets / Min PLC Controller Facial Tissue Making Machine
video
4800 Sheets / Min PLC Controller Facial Tissue Making Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-FTM-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden packing
Delivery Time: 40 Days after down payment
Payment Terms: L/C, T/T
Supply Ability: 10 Sets Per Month
Contact Now
Detailed Product Description
Speed: 4800 Sheets/min Motor: Siemens
Steel: NO 45 Steel Structure: Wall Board
Embossing: Steel To Steel Edge-Embossing: Optional
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Facial Tissue Making Machine Processing Type: Facial Tissue Making Machine
High Light:

4800 Sheets/Min Facial Tissue Making Machine

,

PLC Controller Facial Tissue Making Machine

,

4800 Sheets/Min facial tissue machine

Automatic Paper Folding Machine , Facial Tissue Paper Making Machine




Description

Automatic Paper Folding Machine Box drawing Facial Tissue Paper Making Machine is the production of the removable boxed tissues, removable soft packing equipment of facial tissue paper. Advanced electronic testing system, PLC computer program control, frequency control of motor speed, customers can choose steel on steel calender (steel to plastic, steel wool roll) device, the pressure boundary lines device (controllable double tissue layers) width adjustable, paper USES wide belt synchronous feeding, speed regulating hand wheel control tension, automatic counting function, neatly folding products, high production efficiency, reached the international advanced level, exported to Europe, Africa, Asia countries, received high praise from customers both at home and abroad.


Specification



Max.jumbo roll width 200mm*(2Lanes-8Lanes)
Max.jumbo roll diameter Standard φ1100mm unless otherwise specified
Qty of unwind stand 2 stands
Jumbo roll core’s inner diameter   Standardφ3”(76.2mm) unless otherwise specified
Data setting HMI
Programming controller PLC
Operate speed 60-160m/min/Lane   300-800sheets/min/lane
Tissue Paper Expand size Φ170x130-210mm
Tissue Paper Folding size Φ85x130-210mm  V fold
Power 5.5kw 380V 50HZ 3P
Mechanical driving Driving by Step less gear box
Transmission  by belt and chain
Vacuum fan 18.5kw 380V 50HZ 3P
Counting Electronic counting
Embossing unit Two sets steel to rubber embossing
Dimensions 6x2.4x2 (length x width x height);(m)
Weight 5 T



Feature




1. This machine is to mutually fold the cut paper to the face-cloth paper, which is

   put into the box becoming the economic drawing style box face tissue.

2. The cutting system of Boxed tissue machine is composed of saw belt,

   belt wheel and work board.There is product size adjustment device on the work board.

3. The product is automatically counted and output fold by fold.

4. Folding forming technology, with the running of main motor , folding

 manipulator arm rod body, cooperate to produce, the deflection Angle,

 the position of the adjustable crank arm and change the length of

 the connecting rod to adjust (after folding forming is solid, don't need to adjust).

Product Description

High Quality Facial Tissue Machine Paper Product Making Machinery

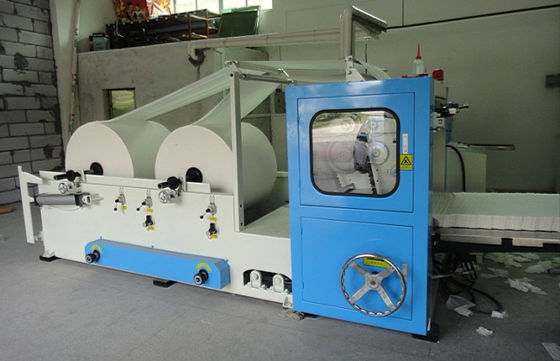

4800 Sheets / Min PLC Controller Facial Tissue Making Machine 0



Features:

Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.

1.Can order steel to rubber embossing rolls,pneumatically separated.

2.Wallboard rack and Machine running stability and extremely good and fast.

3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.

4.Equipped with roots type vacuum pump for stable running of the machine.

5.Make various products width as requirement.

6.Equipped with edge embossing unit to keep the plise together.

7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.

8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.

1. Specification of Facial Tissue Folding Machine:

Machine Model
SYM-190/6L (Other size to be specified)
Finished Products Unfolded Size
95x(120-210)x2mm
Folding Products Size
190x(120-210)x2mm
Raw Material Width
1260mm
Raw Material Diameter
1200mm
Raw Material Core Diameter
76.2mm
Output Capacity (8 hours)
2000-3000kg
Embossing Unit
Steel to rubber
Edge Embossing
Steel to steel edge embossing, independent pneumatic regulation
Slitting Unit
Pneumatic slitting
Main Servo Moter Power
5.5kw
Unwind Frequency Motor Power
1.5kw (2 units)
Vacuum System
18.5 kw Vacuum pump (Taiwan Roots blower)
Pneumatic System
3HP air compressor,Min. pressure 5kg/cm2PA (Provider by user themselves)
Driving System
Timing belt
Dimension
5870x2800x2207mm
Weight
About 5 tons

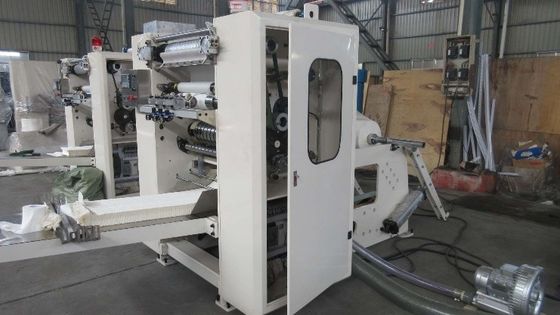

4800 Sheets / Min PLC Controller Facial Tissue Making Machine 1
4800 Sheets / Min PLC Controller Facial Tissue Making Machine 2
4800 Sheets / Min PLC Controller Facial Tissue Making Machine 3
4800 Sheets / Min PLC Controller Facial Tissue Making Machine 4

2. Specification of Single Channel Log Saw Cutting Machine:

4800 Sheets / Min PLC Controller Facial Tissue Making Machine 5
Designation
Parameter values
The length of the none cut off facial tissue
minimum 500mm
The Height of tissue
30~130mm
Machine Speed
20~150cut/min
Operating speed
20~120cut/min
Round blade outer diamete
Φ610mm
Paper cutting circular knife top speed
980R/min
Finished products specification
70~300mm
Paper width
70~110mm
Cutting Length
70~300mm
Left-over Length
20~65mm
Power
11KW
Power supply
380V 50Hz
Air source
0.5~0.8MPa
Machine Size
4600*1700*2500mm
Weight of machine
2300~2600kg
Brake
Parameter setting (auto/manual)
Stepping sharpening knife
Parameter setting (auto)
Pneumatic sharpening knife
Parameter setting (auto/manual)
Blow air
without
The total pressure switch
Value (not)
Human-computer interface
DELTA
Frequency changer
DELTA
Servo Drive
DELTA

3. Specification of Facial Tissue Packing Machine:

1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.

Tissue sizes:
L: 150-400mm W: 150-200mm H: 35-150mm
Packing speed:
40-70 bags/min
Air supply:
0.5-0.8MPa
Machine weight:
3300kg
Outer dimensions (LxWxH):
5885x3560x1925(mm)
Heating power:
3.6kw
Motor power:
3.6kw
Packing size:
≤230x190x100(mm)
Working noise:
≤78dB
Packing film:
CPP
Power supply type:
380V, 50Hz
4800 Sheets / Min PLC Controller Facial Tissue Making Machine 6
4800 Sheets / Min PLC Controller Facial Tissue Making Machine 7

Final Products:

4800 Sheets / Min PLC Controller Facial Tissue Making Machine 8

4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:

Packing Size
≤500x300x110mm (LxWxH)
≥220x120x90mm (LxWxH)
Packing Speed
10-20 bag/min
Gas Pressure
0.5mpa-0.8mpa
Voltage & Frequency
380V,50Hz,3Phase
Total Power
0.8kw
Weight
1000kg
Overall Dimension
4900x1650x1280mm
Tissue paper bag (one row/two rows)
Tissue paper bag (one row/two rows)
4800 Sheets / Min PLC Controller Facial Tissue Making Machine 9

Final Products:

4800 Sheets / Min PLC Controller Facial Tissue Making Machine 10
