| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-FTM-I |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 40 Days after down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets Per Month |
| Bearing: | Made In Japan | Speed: | 4800 Sheets/min |
|---|---|---|---|
| Motor: | PLC | Touch Screen: | Siemens |
| Steel: | NO 45 Steel | Voltage: | 380V, 50 HZ OR CUSTOMERIZED |
| Dimension(l*w*h): | 6200*2200*2200mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation |
| Condition: | NEW | Warranty: | One Year |
| Power(w): | 7.5KW | Product Type: | Facial Tissue Making Machine |
| Processing Type: | Facial Tissue Making Machine | ||
| High Light: | PLC Soft Bag Facial Tissue Making Machine,4800 Sheets/Min Facial Tissue Making Machine,PLC Soft Bag facial tissue production line |
||
Soft Bag Packing Facial Tissue Production Line With Tissue Cutting Machine
Description
Soft Bag Packing Facial Tissue Production Line With Tissue Cutting Machine is with the functions of embossing, slitting, folding, counting, and dividing,auto-taking, auto-transporting, auto packing in one, which the whole production process is fullfiled automatically. this production line has the advantages of simple operation,high production efficiency, and keeping the consistent of the finished products, with the fully automatic production, the amount of production labour can be reduce, so to save the production and managing cost greatly.
It is consists of the following THREE parts:
1. Automatic High Speed Facial Tissue Paper Folding Machine
2. Automatic Single Lane Log Saw Cutting Machine
3. Automatic Facial Tissue Paper Packing Machine
It converts the jumbo roll into folded facial tissue paper. The whole line work smoothly and run stable, saving the labor cost. It’s best choice for the producing facial tissue paper.
Specification

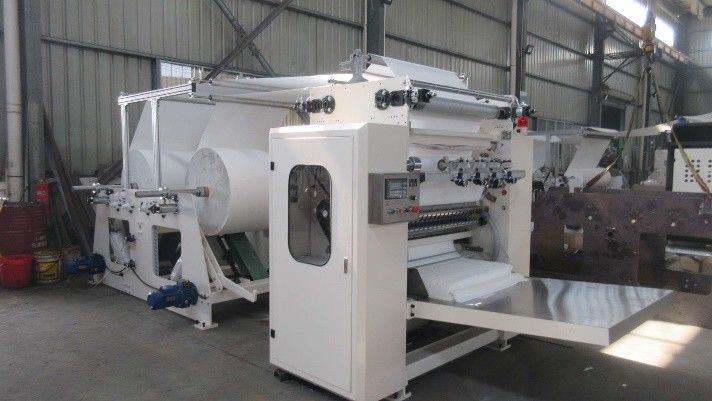

Facial tissue folding machine
|
Max width of raw paper |
1500/2050 |
|
Output direction cutting length |
180/190/200/210, other sizes to be specified |
|
Speed |
130m/min(1300sheets/min/lane) |
|
Operation speed |
100m/min (1000sheets/min/lane) |
|
Max outer diameter of raw paper |
1500mm, other sizes to be specified |
|
Web feeding protection |
Automatic web thickness monitor |
|
Upper blade structure |
Patent-tech spiral blade cutting structure |
|
Bottom blade structure |
Patent-tech with suction holes at the blade edge |
|
Drive type |
separated drive |
|
Procedure control |
PLC |
|
Folding type |
V fold |
|
Options |
|
|
*Backstand |
2~4 ply (plies), to be specified |
|
*Embossing |
steel to steel steel to felted , steel to paper woolen , steel to rubber , to be specified |
|
*Lamination |
multiple type, please specify |
|
*Side trimming system |
Patented trimming top blade structure,vacuum system removes trimming paper |
|
*Counting |
Malposition/ink counting, please specify |
|
*Edge-embossing |
pneumatic,integrated counter-roller |
|
*Web-tension control |
Dancing roller,fully automatic control |

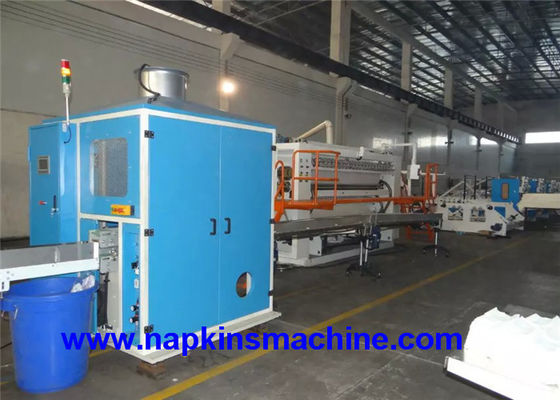

Log saw for cutting facial tissue
|
Slitting length |
Variable, servo control, tolerance: +-1 mm |
|
Lane |
2 lane |
|
Machine speed |
0-150 cuts/min, 2 lane/cut |
|
Operation speed |
110-120 cuts/min, 2 lane/cut |
|
Driving control of pusher |
Driven by servo motor |
|
Blade grinding |
Pneumatic grinding wheel, the grinding time can be programming controlled by operating panel |
|
Blade greasing |
Greasing by spraying oil reek, the greasing time can be programming controlled by operating panel |
|
Diameter of blade |
610 mm |
|
Clamp |
Changeable (the outer diameter of products to be specified) |
|
Power |
10 kw |
|
Machine size |
7000*1500*2500 |
|
Machine weight |
3000 kg |
|
Packing size |
1 pc in one 20’ container |
facial tissue plastic film packaging machine
|
Packing specifications length (mm) |
100-230 |
|
Width (mm) |
100-150 |
|
Height (mm) |
30-100 |
|
Packing speed (envelope/min) |
25-60 pack/min |
|
Total power (kw) |
6.83 |
|
Total weight (kg) |
3440 |
|
Outline dimensions (L×W×H)(mm) |
3885*3200*1900 |
|
Heating power (kw) |
3.35 |
|
Motor power (kw) |
3.48 |
|
Max. packing dimensions (mm) |
200*120*100 |
|
Noise |
78DB |
|
Packing materials |
Double-sided heat sealing membrane such as CPP, PE, OPP/CPP, PT/PE, KOP/CP, etc. |
|
Power supply |
380V 50HZ |
Main Specification
1. equipped with steel to steel or steel to rubber embossing roller, pneumatically separating.
2 . pneumatic jumbo roll loading, pneumatic paper driving, stepless speed additionustment, and web tension control.
3 . equipped with Roots Type vacuum pump for stable running of the machine.
4 . pneumatic dot slititng and full slitting are available to make various products width.
5 . equipped with edge embossing device to keep the plies together
6 . jumbo roll guiding system available.
7 . the machine will stop when the paper borken, it avoid waste caused by no paper or paper broken.
8 . the web can be threaded on the machine by the two jug buttons, it's more safety and easier to thread the web.
9.Key part regularly lubricating automatically.
10. the facial tissue log saw cutting machine is an orbital saw machine specially designed for inter-fold products, as inter-fold facial tissues and inter- fold toilet tissue,etc, this facial tissue log saw cutitng machine has been built with the latest technology on the electronic and servo drive system, toincrease the stability and quality of the cuts.
11.the folded facial tissue can be feed into the packing machine by the conveyor, and then packing automatically.
Electrical Parts and other Parts brand
|
NO |
Name |
Brand |
Original Place |
|
1 |
Motor |
Siemens |
China |
|
2 |
Pneumatic Parts |
Omron |
Germany |
|
3 |
Vacuum Pump |
Longtech |
Taiwai |
|
3 |
Frequency converter |
Delta |
Taiwai |
High Quality Facial Tissue Machine Paper Product Making Machinery

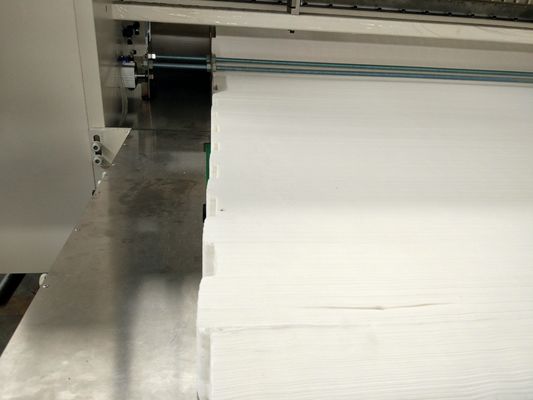

Facial tissue making machine working flow:The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders,and then interfolded into interoverlapped rectangular facial tissue sheets.
This machine adopts independent servo motor drive,and automatic paper tension control automatic marking functings.It featurse of high speed,nice folding and easy operation.
1.Can order steel to rubber embossing rolls,pneumatically separated.
2.Wallboard rack and Machine running stability and extremely good and fast.
3.Pneumatic jumbo roll loading,pneumatic paper driving,stepless speed additionstment,and web tension control.
4.Equipped with roots type vacuum pump for stable running of the machine.
5.Make various products width as requirement.
6.Equipped with edge embossing unit to keep the plise together.
7.The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8.The web can be threaded on the machine by the two jog buttons,It's more safer and easier to thread the web.
1. Specification of Facial Tissue Folding Machine:
2. Specification of Single Channel Log Saw Cutting Machine:
3. Specification of Facial Tissue Packing Machine:
1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.
Final Products:
4.Specifications of Semi Automatic Two Outlets Multi Bags Packing Machine:
Final Products:
