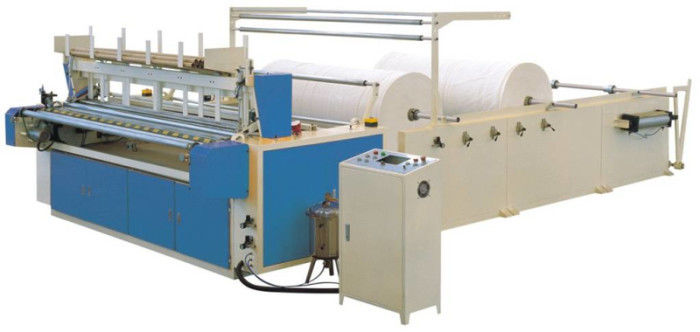

500mm Size 3 In 1 Rewinding Toilet Roll Making Machine

Automatic Laminated Toilet Paper Making Machine , 3 In 1 Roll Rewinding Machine



Description



1575 Type Toilet Paper Machine Germany Siemens Brand PLC For Toilet Roll is 3 in 1 rewinding machine. It can produce laminated toilet paper / laminated kitchen paper / laminated JRT. Finished roll diameter is up to 300mm.

.



Fetures



1. PLC (computer) control production, degree of full-automatic of production process is high, the function of machine is complete, and production efficiency is high.

2. Load and change the core, spray glue, seal can be done without stop the machine. When changing the core, the machine will low the speed and up the speed automatically.

3. When change the core to rewind, it will be tight first and then loose, to avoid the core loose.

4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.

5. When raw material broken, the machine will stop automatically.

6. Each raw material unreel separately , equip with tension control.

7. Easy to adjust in order to suitable different paper core.

8. There is tail after the finished product sealed with

9. There is pneumatic jack to load the raw material on machine

As required, the machine can equip with single color or double colors printing device, the pattern is vivid.

The machine can equip with two sets of embossing device according to requirements



Parameter





Jumbo Roll Width	Maximum 1800
No.of Back Stand	1~3 Stands (Please specify )
GSM of Jumbo Roll	14~30g/m2
Jumbo Roll Diameter	Maximum 1200mm (Other Sizes Please Specify)
Jumbo Roll Core Inner Diameter	76.2mm  (Ohter Size Please Specify)
Toilet Roll Diameter	90mm~300mm
Toilet Roll Core Inner Diameter	30mm~50mm
Perforating Pitch	90mm~150mm; (4 Blades);
	180mm~320mm; (2 Blades);
Speed	0~200M/min
Lamination	Double embossing units & glue application unit
Parameters Setting	Touch Screen Operating Interface
Counting System	By sheets or diameter
Pneumatic System	5 HP Air Compressor, Minimum Pressure 5kg/cm2pa ( Provided By User)
Power	Power: 380V, 60Hz
	Motor: 7.5Kw~25Kw
Machine Size(L*W*H)	According to configurations
Machine Weight	4000Kg~10000Kg
Guarantee	12 Months Under Normal Use After Machine Arrived At Customer's Plant
Certificate	CE
Service	Engineers Are Available To Service Machinery In Oversea Market





Technical Requirement



Raw Paper



(1)Size:  Diameter≤1100mm, (Raw Paper Diameter*Width);

(3)Inner Diameter:  76.2mm

Paper-feeding part



(1)Three Layers and Belt to deliver paper and controlled by Pump;

(2)Three pieces original axis with Tension clamp (3 inch paper core and Shaft sleeve); Size adjustable;

(3)Pneumatic Loading Paper Device

(4)Raw Paper Manual Adjustment



Automatic coreless device

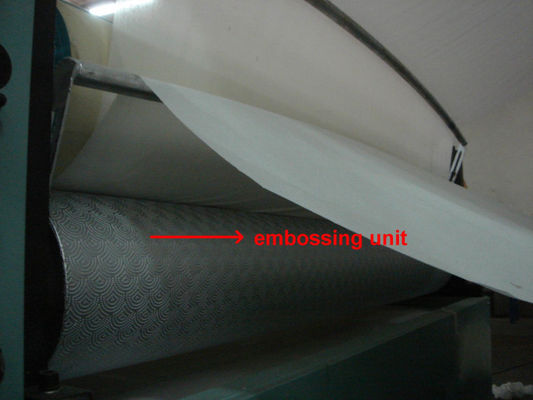

Embossing Part



(1)One set steel to rubber embossing unit (Embossing pattern offered by buyer)



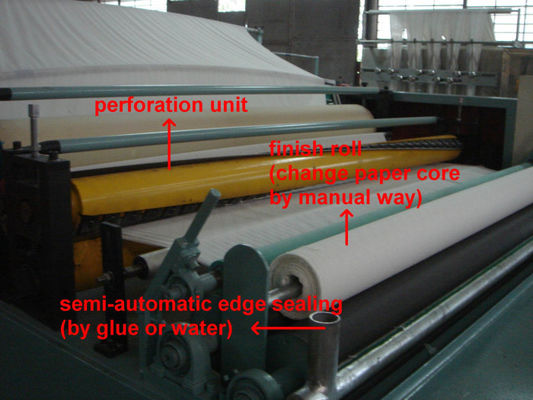

Rewinding Part



(1) Inner Diameter Adjustable Rang:  15mm-60mm

(2) Diameter of finished products:  90-130 mm

(3) Full automatic adjust rewinding perforation size

(4) Using Upper leading paper type rewinding finished products and jog button to lead raw paper

(5) Using the international advanced PLC computer programming technology, Variable frequency speed regulation and HMI interface

(6) Sealing:  automatic trimming, adhesive, sealing



Control part



(1) Emergency Device;

(2) Voltage: AC380V 50HZ Main Motor 7.5KW,

(3) Air pressure required less than 0.5 MPA (Supplied by the user)

(4) Electromagnetic speed regulating device





Electrical Parts and other Parts brand

NO	Name	Brand	Original Place
1	Frequency Panel	Siemens	Germany
2	Motor	Siemens	Germany
3	Pneumatic Parts	Schneider	Germany
4	Knife bearing	NSK	Japan
5	Steel	SKD	Japan
6	Touch Screen	Delta	Taiwan
