55 Bags / Min PE Horizontal Toilet Paper Converting Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	YU SHENG DA
Certification:	CE
Model Number:	YD-SP-I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	40 Days after Down Payment
Payment Terms:	L/C, T/T
Supply Ability:	10 Sets/month

Contact Now

Detailed Product Description

Application:	Single Roll Packing	Packing Material:	CPP With Thickness Of 40 Microns
Speed:	25-55 Bags/min	PLC:	SIEMENS
MOTOR:	SIEMENS	Pneumatic Parts:	Omoron
Voltage:	380V, 50 HZ OR CUSTOMERIZED	Dimension(lwh):	620022002200mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation	Condition:	NEW
Warranty:	One Year	Type:	Multi-Function Packaging Machine, Other, Packaging Line
Function:	Sealing, Wrapping, Filling, Gluing	Packaging Material:	Plastic, CPP, PE
Automatic Grade:	Automatic	Driven Type:	Electrical
Packaging Type:	BAGS, FILMS	Power(w):	7.5KW
Product Type:	Toilet Roll Packing Machine	Processing Type:	Toilet Roll Packing Machine
High Light:	55 bags/min Toilet Paper Converting Machine , PE Horizontal Toilet Paper Converting Machine , PE Horizontal tissue paper production machine

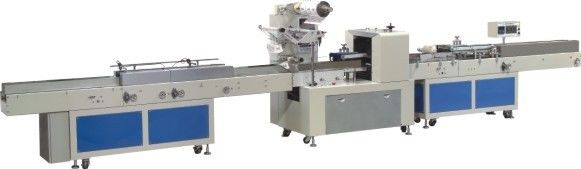

Horizontal Toilet Roll Paper Packing Machine / Toilet Paper Converting Machine

Description

Single Roll Toilet Roll Packing Machine adopt MCU for master control circuit, display on LCD screen, control by the inverter, excellent person-computer interface, easy to pack.

And the length of product adopt double frequency converter, stepless speed change, various range adjustment,, automatic clear up the packing product, and make it enter packaging machine.

This machine can match with front-end production very well. The length of finished bag will be accurate tracked by high sensitivity sensor. It will not need to adjust by manual as soon as set. Individual control temperature for each sealing.It suitable for many kind of wrapping material.

Specification

Packing speed (pcs/min)			80-120
Packing specification(mm)			85≤Φ≤130
			85≤H≤180
Overall dimension(mm)			7600X1140X1500
Weight (kg)			900
Air compressor (Mpa)			0.5
Total power			3.2 (380v 50Hz)
Center distance (mm)			192
Max.width of package film (mm)			600
The noise of machine (Db)			≤78
Sealing pressure(N/mm)			15
Raw material of wrapping film			CCP,SPP,PVC Single-sided thermal bonding film

Main functions

1 The roll tissue single packing machine is especially designed for the package of roll tissue. It can achieve the process automatically from feeding, packing to side sealing. So that it averts the second pollution of hand operation in the process of package.
2 The whole line consists of three parts; the material delivery part, roll tissue packing part and side sealing part.
3 Servo motor controlling system, flexible bag length cutting, easy operation and step-less speed regulation.
4 Super large LCD screen with human-machine interface for intuitive operation, automatic setting inspection system, clear failure display.
5 High precision photoelectric cell correctly preforms color code
tracking digital inputing, make the sealing and cutting position more correctly .
6 It can select the automatic film connecting device.

Electric Assembly Parts

No	Part name	Brand	Remarks
1	Main control panel	Soontrue
2	Inverter	Panasonic	1.5kw
3	Inverter	Panasonic	0.4kw
4	Solid relay	Shanghai Chaocheng
5	Power switch	FUJI	30A
6	Photocell	SUNX
7	Touch screen	HITECH
8	Temp. controller	OMRON
9	Motor	VTV
10	Bearing	NSK

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

Features:

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model	1092B	1575B	1760B	2150B	2200B	2500B	2800B
Jumbo Roll Max. width	1350mm	1750mm	1880mm	2000mm	2150mm	2400mm	2750mm
Max. Jumbo Roll diameter	2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2
Jumbo Roll Standings	Standardφ3"(76.2mm) (Other sizes specified)
Data setting	HMI
Programming controller	PLC, touch screen
Operate Speed	0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.	φ90-140mm
Finished Log Inner dia.	φ38-76mm
Perforation Distance	100-150mm
Mechanical driving	Driving by Stepless gear box
Air -system	3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
Main driving	Frequency conversion speed regulation 7.5-15KW 380V,50HZ
Embossing unit	Steel to rubber
Dimensions	6x3x1.7 (length x width x height);(m)
Weight	3T-4T(depends on the Model you have )
Options:
Embossment Roller	Plane, Single Set, Double Sets Can be ordered
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be Ordered
Edge-Embossing Line	Steel to Steel Operate by Pneumatic
