| Place of Origin: | CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-SP-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 40 Days after Down Payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets/month |
| Application: | Single Roll Packing | Packing Material: | CPP With Thickness Of 40 Microns |
|---|---|---|---|
| Speed: | 25-55 Bags/min | PLC: | SIEMENS |
| MOTOR: | SIEMENS | Pneumatic Parts: | Omoron |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2200*2200mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Type: | Multi-Function Packaging Machine, Other, Packaging Line |
| Function: | Sealing, Wrapping, Filling, Gluing | Packaging Material: | Plastic, CPP, PE |
| Automatic Grade: | Automatic | Driven Type: | Electrical |
| Packaging Type: | BAGS, FILMS | Power(w): | 7.5KW |
| Product Type: | Toilet Roll Packing Machine | Processing Type: | Toilet Roll Packing Machine |
| High Light: | 55 Bags/Min Toilet Roll Packing Machine,SIEMENS MOTOR Toilet Roll Packing Machine,55 Bags/Min tissue paper production machine |
||

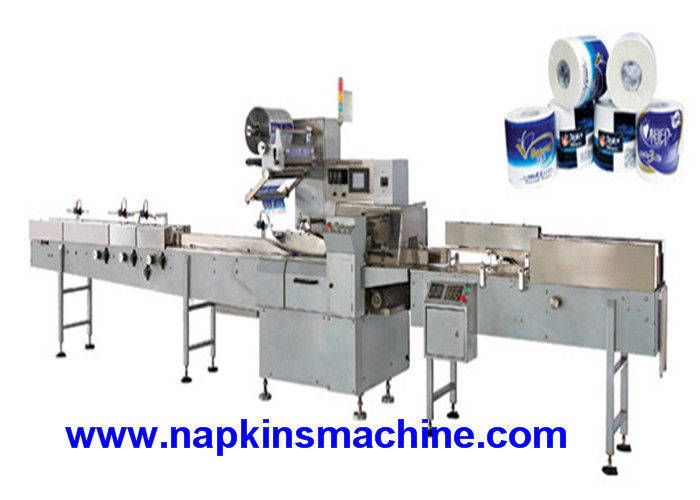

Automatic Single Toilet Roll Packing Machine For Plastic Soft Bag Wrapping
Description
Full Automatic Single Toilet Roll Packing Machine For Plastic Soft Bag Wrapping is suitable for packing rectangular and square objects, such as non-highly tight tissue, square tissue,
napkins, etc.
And the length of product adopt double frequency converter, stepless speed change, various range adjustment,, automatic clear up the packing product, and make it enter packaging machine.
This machine can match with front-end production very well. The length of finished bag will be accurate tracked by high sensitivity sensor. It will not need to adjust by manual as soon as set. Individual control temperature for each sealing.It suitable for many kind of wrapping material.
Specification
|
End sealers diameter (mm) |
114 |
|
|
Packing speed (pack/min) |
35-120 |
|
|
Film width (mm) |
430/330 |
|
|
Bagging size range |
Roll diameter |
113/93 |
|
|
Bagging length |
adjustable |
|
Total Power k) |
3.2 |
|
|
Main motor power (kw) |
0.75+0.2 |
|
|
Net weight (k) |
900 |
|
|
Noise (dB) |
≤78dB |
|
|
Percentage of pass (%) |
≥97% |
|
|
Sealing pressure (N/mm²) |
15 |
|
|
Outer dimensions (L×W×H) (mm) |
4240x1005x1750 |
|
|
Power supply type |
220V 50HZ |
|
|
Packing material |
BOPP,PE/OPP,CPP, PP |
|
|
Packing material thickness |
0.020-0.035 (mm) |
|
Main functions
1. Capacity: 50 to 80 packs/minute (subject to the material and thickness of film as well as product size)
2. Product size limits:
Length: 70 to 400mm, Width: 32 to 200mm, Height: 5 to 105mm
3. Floor space (L x W): packaging machine 4400 x 1085mm
4. Power consumption: packaging machine 2.8kw
5. Total weight: Packaging machine 1200kg
6. Packing material: all kinds of film such as PVC, CPP and OPP
Electric Assembly Parts
|
No |
Part name |
Brand |
Remarks |
|
1 |
Main control panel |
Soontrue |
|
|
2 |
Inverter |
Panasonic |
1.5kw |
|
3 |
Inverter |
Panasonic |
0.4kw |
|
4 |
Solid relay |
Shanghai Chaocheng |
|
|
5 |
Power switch |
FUJI |
30A |
|
6 |
Photocell |
SUNX |
|
|
7 |
Touch screen |
HITECH |
|
|
8 |
Temp. controller |
OMRON |
|
|
9 |
Motor |
VTV |
|
|
10 |
Bearing |
NSK |
Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

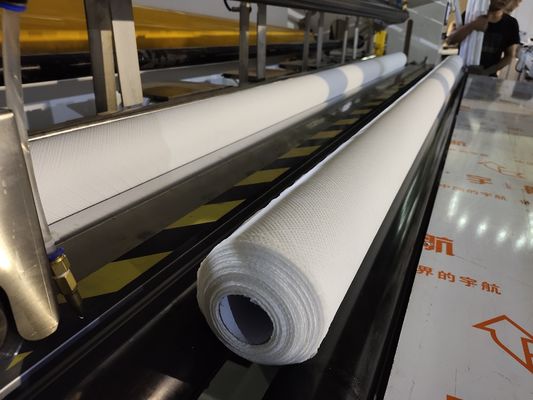

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Specification:
Machine Detail Pictures:
Deco Color Lamination Parts:

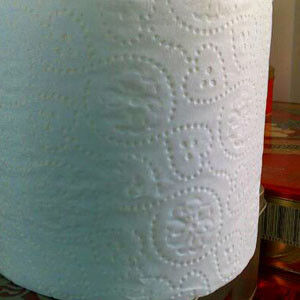

Finished Products:
