| Place of Origin: | China |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-PT-I |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 50 work days after down payment |
| Payment Terms: | L/C, T/T |
| Fold Type: | W Fold | Speed: | 6000 Sheets/Min |
|---|---|---|---|
| Embossing: | Steel To Steel | Frequency Converter: | Delta |
| Pneumatic Parts: | AIRTAC | PLC: | Siemens |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 6200*2000*1800mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Paper Towel Machine | Processing Type: | Paper Towel Machine |
| High Light: | 6000Sheets/Min Automatic Tissue Paper Making Machine,380V Automatic Tissue Paper Making Machine,6000Sheets/Min tissue manufacturing machine |
||

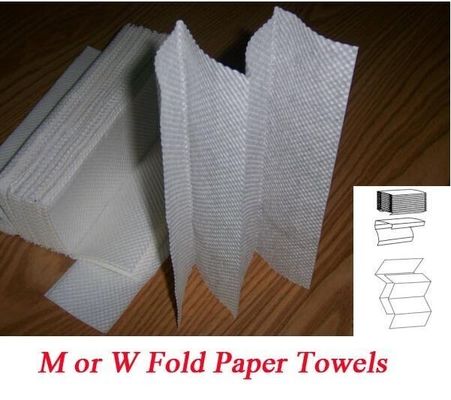

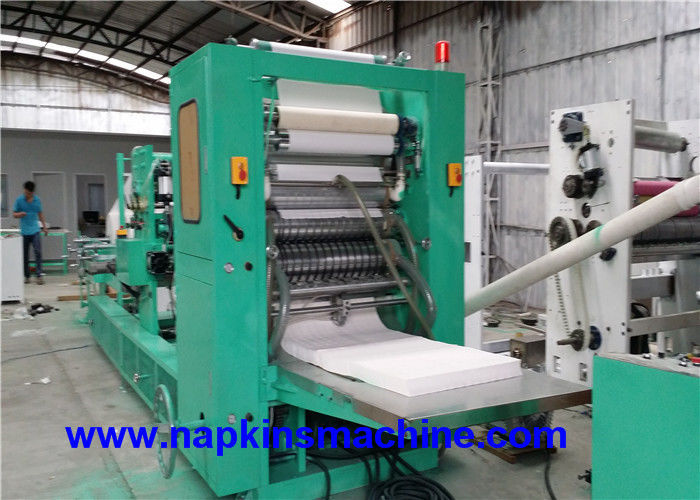

Paper Towel Machine 220mm 6000 Sheets Per Min Five Lanes W Fold
Specification for Five FOLD Paper Towel Machine_...
Description

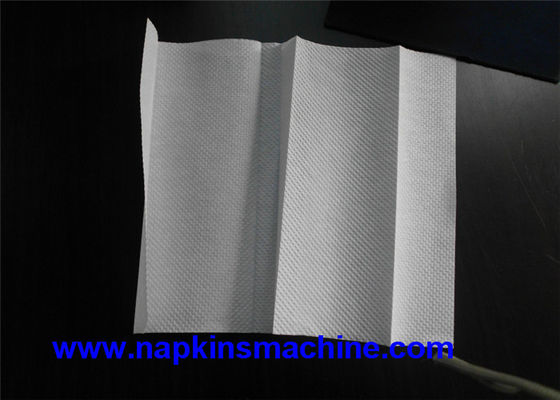

Paper Towel Machine 220mm 6000 Sheets Per Min Five Lanes W Fold is process paper material after embossing,cut off,interfold become N fold,The products are widely used in hotels,office and kitchen and so on,convenient health.This machine can apply to folding,slitting ,cunting,with higt speed,output orderliness.
Function and Features
1. Jumbo reel Max. width: 950mm
2. Web feeding protection detecting emergency situation ,automatically stop the machine and avoid damage.
3. Flexible controller arm, more convenience to operate;
4. Patented-tech cutting blades & shafts structure, simple structure,easy maintenance, lower blade wastage, amd it have a character to protect blade&shaft
5. Patented-tech folding roller, significant improved rigidity makes better folding accuracy and stability.
The Main Technical Parameters
| Finished products size(mm) | 30(L)X225(W)±2 mm;(Other sizes are available) |
| Raw material diameter | 1100mm |
| Raw material core diameter | 76.2mm (3") |
| Speed | 0-180m/min (Depending on the machine model) |
| Power | Frequency conversion speed regulator |
| Programmable controller | MITSUBSHI Programmable Controller (PLC),LCD screen operation panel |
| Folding Type | Vacuum suction“N” fold |
| Lubrication Unit | Automatic key parts regular lubricating |
| Transmission Unit | Timing belt |
| Counter | Electric counting, Ink marked |
| Embossing Unit | Steel to Steel,Pneumatic pressure adding,cross embossing or in-phase embossing |
| Lamination Unit | point to point gluing |
| Slitting Unit | Pneumatic dot slitting |
| Machine Structure | Standard Structure Complete close structure |
| Vacuum System | Roots Type Vacuum Pump11-32KW |
| Pneumatic System | 3HP Air Compressor,Mini Air Pressure5kg/cm2 Pa(provided by customer) |
| Main motor | 7.5 -11KW |
| Dimension(L×W×H) | 7000X(1730-2450)X1850 |
| Weight | depend on the size and configure |
