6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine

6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine

6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine
video
6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine
Product Details:
Place of Origin: China
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-PT-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Packing
Delivery Time: 50 work days after down payment
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Fold Type: InterFold Speed: 6000 Sheets Per Min
Embossing: Steel To Steel Frequency Converter: Delta
Pneumatic Parts: AIRTAC Photoelectrical Switch (magic Eye): Omron
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2000*1800mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Paper Towel Machine Processing Type: Paper Towel Machine
High Light:

6 Lane Interfold Paper Towel Making Machine

,

6000 Sheets/Min Paper Towel Making Machine

,

6 Lane Interfold tissue paper maker machine

Interfold Paper Towel Making Machine , Six Lane Towel Folding Machine
 Specification for V FOLD Paper Towel Machine_20210...


Description

Interfold Paper Towel Making Embossing Lamination Machine Six Lanes  is used to make Inter Fold  Hand Towel with embossing and cutting off the towel paper .The folding of product is “Interfold” type folding .
It used PLC computer programming technology, variable frequency speed
control, human-machine interface operating system; CVT transmission ratio before
and after, to adapt to pull the paper to improve the tension and the finished productsuniformity and

beautiful.


Function and Features

1. Automatic counting sub-bit row of the output
2. Spiral blade shear, vacuum adsorption folding
3. Unwinding stepless speed regulation, can be adapted to high and low tension of the base paper
4. Electronically Controlled Pneumatic, easy to operate,two steel to rubber embossing,edge press device
5. Product width of the range, user-friendly marketing

Specification:

Model
N-2L/3L/4L/5L/6L
Finished Products Size
230L*230±2MM
Raw Material Width
480mm
690mm
990mm
1150mm
Raw Material Core Diameter
76.2mm
Speed
0-100m/min (depending on the machine model)
Power
Frequency conversion speed regulator
Programmable controller
PLC computer controller
Folding Type
Vacuum suction N fold
Transmission unit
Timing Belt
Counter
Ink Marked
Embossing Unit
Steel to steel
Slitting Unit
Pneumatic dot slitting
Pneumatic System
3HP Air Compressoor, mini air pressure 5kg/cm2pm (Provider by customer)
Total Power
11kw
15kw
15kw
22kw
Dimension
4000*(1700-2500) *1900mm ,Depend on the size and configure
weight
2-5 tons, Depend on the size and configure

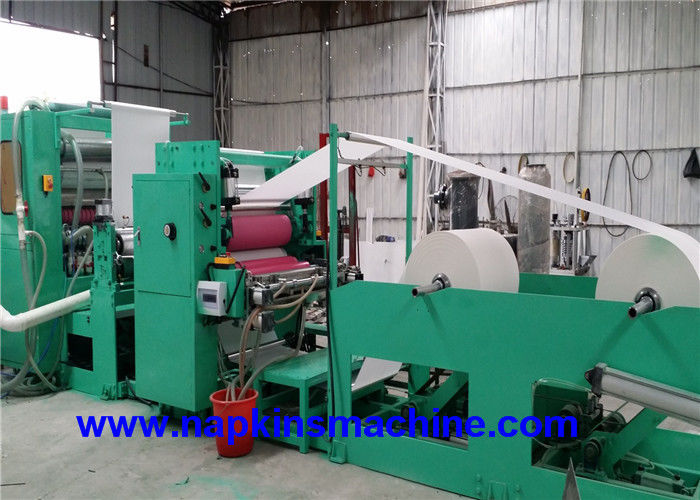

Machine Detail Pictures:

6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine 0
6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine 1
6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine 2

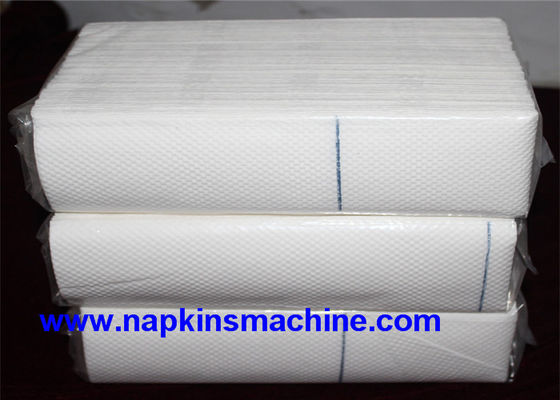

Finished Products Pictures:

6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine 3
6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine 4
6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine 5
6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine 6

Optional machine:

6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine 7

Optional Hand Towel Bagging Machine:


Production speed: 6-9 bagss/min
Packing size: length 1150 mm, width 70 mm
Power: 200W 380V 50Hz
Dimensions: 1500*850*700mm
