| Place of Origin: | Dongguan, Guangdong, CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-VN-I |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 45days after down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2 sets per month |
| Folding Type: | Vacuum EIGHT FOLD | Embossing: | Steel To Paper Or Steel To Steel |
|---|---|---|---|
| Speed: | 1000 Sheets Per Min | Color Printing: | 1 To 4 Color Printing |
| Frequency Converter: | SIEMENS | Motor: | SIEMENS |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 3200*1000*1800mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Napkin Making Machine | Processing Type: | Napkin Making Machine |
| High Light: | 7.5KW Tissue Printing Machine,1/8 Fold Vacuum Tissue Printing Machine,1/8 Fold Vacuum napkin manufacturing machine |
||

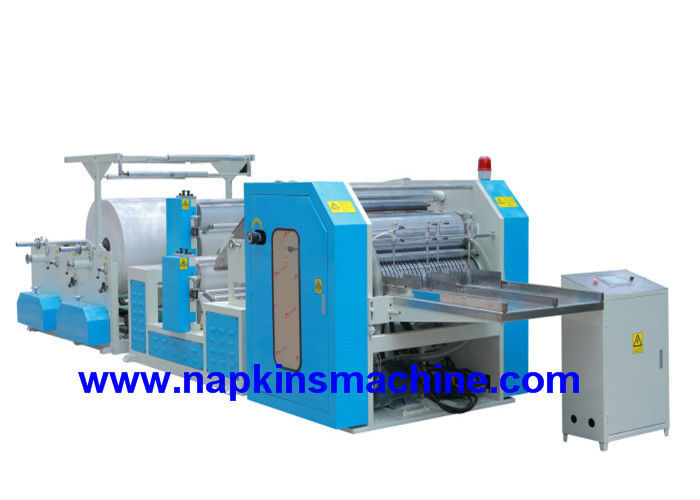

Color Printing Paper Napkin Machine , Napkin Folder Machine

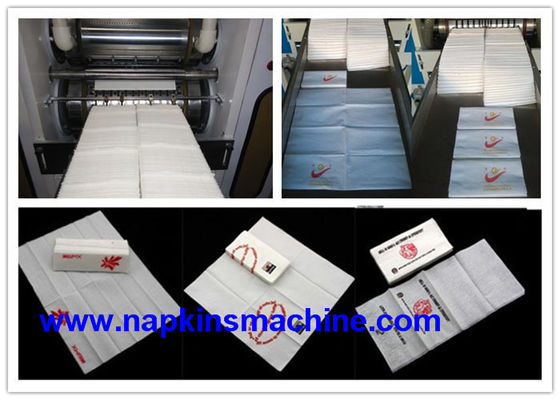

Color Printing Paper Napkin Machine , Napkin Folder Machine takes jumbo roll as raw material, process to various kind of fixed specification napkin paper. The machine starts from raw material feeding , embossing ,folding and cutting. The outcome product is two layers ,four lines. Fast speed and high production. The napkin paper product by this machine is hygiene and clear.If you need to produce various kind specification of napkin paper (180 to 500), you need to order the machine. For example, if you order model 275 napkin paper machine, the unfolding size of napkin paper is 275mmx275mm, while if you order 330 model, then the unfolding size of napkin paper is 330mmx330mm. Also, we can make the machine according to customers’ requirements.
|
Width of raw paper |
200-450mm(Nonstandard size need order) |
|
Max.Dia. of raw paper |
1200mm(bigger size need order) |
|
Inner Dia of raw paper core |
3 (76.2mm) |
|
Folding Type |
1/8 folding |
|
Finished product size |
Folded size :100x100mm-225x225mm Open size: 200x200mm-450x450mm |
|
Raw paper size |
1-3ply napkin paper, each ply 18-25GSM |
|
Embossing |
Steel to woolen roller |
|
Counting |
Electron, pneumatic |
|
Speed |
1000 pcs/min (Depends on how many colors) |
|
Power |
3-9KW ,380V,50HZ(Other voltage need order) |
|
Optional Device |
|
|
Embossing roller |
Steel to rubber, steel to felt roller, steel to steel embossing unit.(Need order) |
|
Color printer |
1-6 colors can be equipped. |
|
Calender unit |
Steel to steel calendar unit need order separately |
|
Folding type |
1/6,1/8/,1/12 and other folding way need order |
Eight Fold Dinner Napkin
