7.5KW 3200mm Length Paper Slitting Machine

7.5KW 3200mm Length Paper Slitting Machine

7.5KW 3200mm Length Paper Slitting Machine
  • 7.5KW 3200mm Length Paper Slitting Machine
  • 7.5KW 3200mm Length Paper Slitting Machine
  • 7.5KW 3200mm Length Paper Slitting Machine
Product Details:
Place of Origin: CHINA
Brand Name: YU SHENG DA
Certification: CE
Model Number: YD-LSW-I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 40 Days after down payment
Payment Terms: L/C, T/T
Supply Ability: 5 Sets/ Month
Contact Now
Detailed Product Description
Speed: 150 Cuts/min Channel: One Channel
Application: Cutting Toilet Tissue Roll Log Length: 1400-3200mm
Log Diameter: 90-150mm PLC: Siemens
Voltage: 380V, 50 HZ OR CUSTOMERIZED Dimension(l*w*h): 6200*2200*2200mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation Condition: NEW
Warranty: One Year Power(w): 7.5KW
Product Type: Paper Cutting Machine Processing Type: Paper Cutting Machine
Highlight:

7.5KW 3200mm Length Paper Slitting Machine

,

7.5KW 3200mm Length tissue paper maker

,

3 rolls/cut tissue paper maker

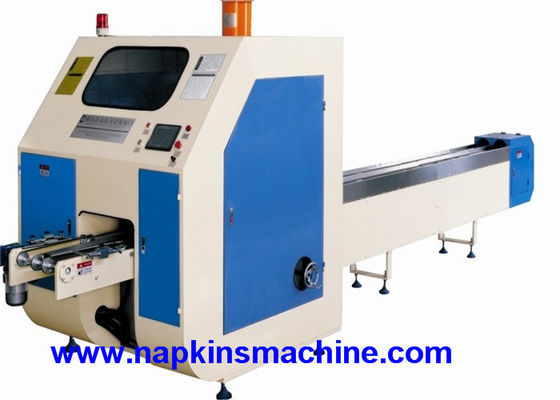

3 Lane DH-IV Log Saw Cutting Machine For Toilet Roll / Kitchen Towel Rolls , Paper Core





Description



High Capacity Industrial Roll Paper Cutting Machine 60 Cuts Per Min is one of the important equipment for the automatically continuous production line of toilet rolls and kitchen towels, greatly increasing the production automatically.





Specification





Machine name/ model

DH-IV Log Saw Cutter

For toilet roll & kitchen towel

Paper roll length

1780/2850/3500 mm, to be specified

Finish product diameter

110-105 mm, other size 90-160 mm,

to be specified

Slitting length

Variable, servo control, tolerance:

 +-1 mm

Lane

3 lane

Machine speed

0-150 cuts/min, 3 rolls/cut

Operation speed

110-130 cuts/min, 3 rolls/cut

Driving control of pusher

Driven by servo motor

Blade grinding

Pneumatic grinding wheel,

the grinding time can be

programming controlled by

operating panel

Blade greasing

Greasing by spraying oil reek,

the greasing time can be

programming controlled by

operating panel

Diameter of blade

610 mm

Clamp

Changeable (the outer diameter

of products to be specified)

Specification of finished product

Log diameter 90-160 mm

Log slitting length 50-300 mm

Log trimming length 25-100 mm

Power

10 kw

Machine size

7000*1500*2500

Machine weight

3000 kg

Packing size

1 pc in one 20 container





Feature



1 . This machine is used to cut toilet paper and kitchen roll paper. It is easy to operate and enjoy high speed

2 . Adopt computer control production, reset automatically, cut, cut and wrap length, adjustable the period of cutting.

3 . Equipped with touch screen person-to-computer control, production parameter, production trouble can be showed on the screen.

4 . 610 mm diameter disc knife high speed revolving rapidly. (cut two roll paper at one time).Without knife mark and rough edges while cutting.

5 . Equipped with advanced photoelectric checking system, advanced servo driving system, pneumatic element, bearing tool and other advanced products.

6 . Equipped with feeding knife grinder, the grinding of knife blade is higher precision. It is safe and insures while grind the knife.

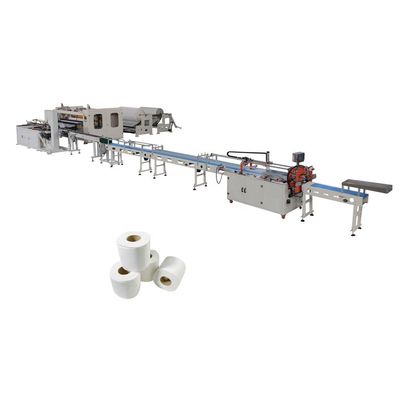

Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine For Sale

7.5KW 3200mm Length Paper Slitting Machine 0



Features:

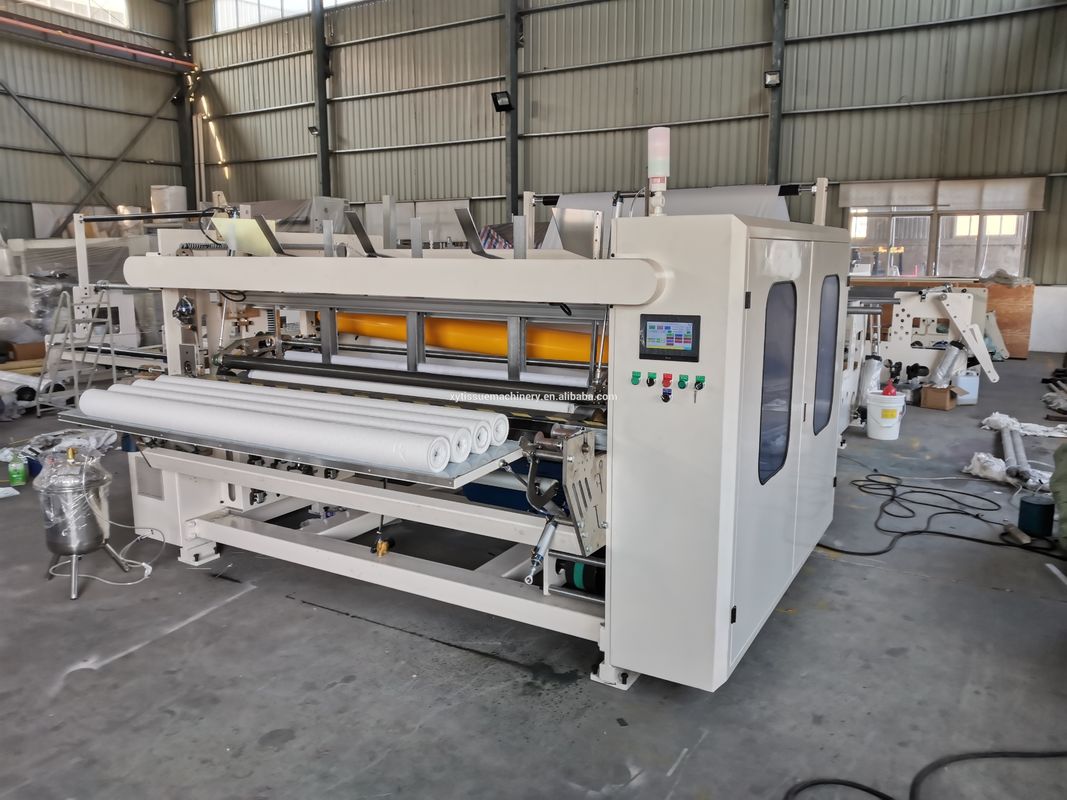

Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.

Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.

Specification:

Model
1092B
1575B
1760B
2150B
2200B
2500B
2800B
Jumbo Roll Max. width
1350mm
1750mm
1880mm
2000mm
2150mm
2400mm
2750mm
Max. Jumbo Roll diameter

2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2
Jumbo Roll Standings

Standardφ3"(76.2mm) (Other sizes specified)

Data setting

HMI
Programming controller

PLC, touch screen

Operate Speed

0-230m/min 15000-25000 rolls/8hours
Finished Log Outer dia.
φ90-140mm
Finished Log Inner dia.
φ38-76mm
Perforation Distance
100-150mm
Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 7.5-15KW 380V,50HZ

Embossing unit

Steel to rubber

Dimensions
6x3x1.7 (length x width x height);(m)

Weight
3T-4T(depends on the Model you have )

Options:

Embossment Roller
Plane, Single Set, Double Sets Can be ordered
Color Printing Unit

1-2 Colors can be order

Lamination Unit

Can be Ordered

Edge-Embossing Line

Steel to Steel Operate by Pneumatic


Machine Detail Pictures:

7.5KW 3200mm Length Paper Slitting Machine 1
7.5KW 3200mm Length Paper Slitting Machine 2
7.5KW 3200mm Length Paper Slitting Machine 3

Deco Color Lamination Parts:

7.5KW 3200mm Length Paper Slitting Machine 4
7.5KW 3200mm Length Paper Slitting Machine 5
7.5KW 3200mm Length Paper Slitting Machine 6

Finished Products:

7.5KW 3200mm Length Paper Slitting Machine 7
7.5KW 3200mm Length Paper Slitting Machine 8
7.5KW 3200mm Length Paper Slitting Machine 9
