| Place of Origin: | Dongguan, Guangdong, CHINA |
| Brand Name: | YU SHENG DA |
| Certification: | CE |
| Model Number: | YD-NP-I |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden packing |
| Delivery Time: | 45days after down payment |
| Supply Ability: | 2 sets per month |
| Folding Type: | 4 FOLD AND TWO FOLD AND EIGHT FOLD | Embossing: | Steel To Paper Or Steel To Steel |
|---|---|---|---|
| Speed: | 3000 Sheets Per Min | Lamination: | Point To Point Or Point To Nest |
| Color Printing: | 1 To 4 Color Printing | PLC: | Delta |
| Voltage: | 380V, 50 HZ OR CUSTOMERIZED | Dimension(l*w*h): | 3200*1000*1800mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Video Technical Support, Online Support, Field Maintenance And Repair Service, Field Installation | Condition: | NEW |
| Warranty: | One Year | Power(w): | 7.5KW |
| Product Type: | Napkin Making Machine | Processing Type: | Napkin Making Machine |
| High Light: | 7.5KW Tissue Paper Napkin Making Machine,330mm napkin production machine,330mm Tissue Paper Napkin Making Machine |
||

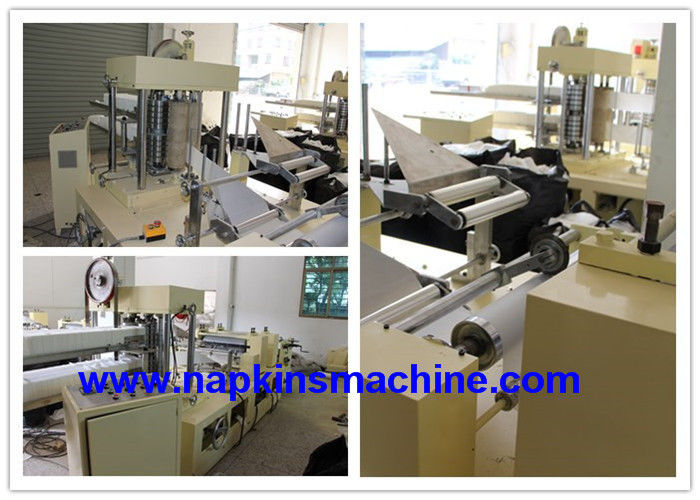

Paper Napkin Machine , 330mm Tissue Paper Napkin Making Machine
Paper Napkin Machine , 330mm Tissue Paper Napkin Making Machine is to produce 330mm(Unfolding size) luncheon Napkin from jumbo roll. The process including embossing , folding , cutting and so on process. The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size.
|
Open size of finished product |
200*200-430*430mm (to be specified) |
|
Diameter of Raw Paper Roll |
1100mm(other size to be specified) |
|
Inner Diameter of Paper core |
76.2mm(3 inch) (other size to be specified) |
|
Capacity |
3000pieces/min |
|
Counting Device |
Electronic Counting |
|
Embossing Roller |
Woolen Roller |
|
Power |
Frequency Conversion Speed Regulator |
|
Calendaring |
Steel to steel or steel to rubber |
|
Embossing unit |
Felted roller, woolen roller, Rubber roller |
|
Color Printing |
1-2 color |
|
Dry Device |
Hot Wind Heating System |
